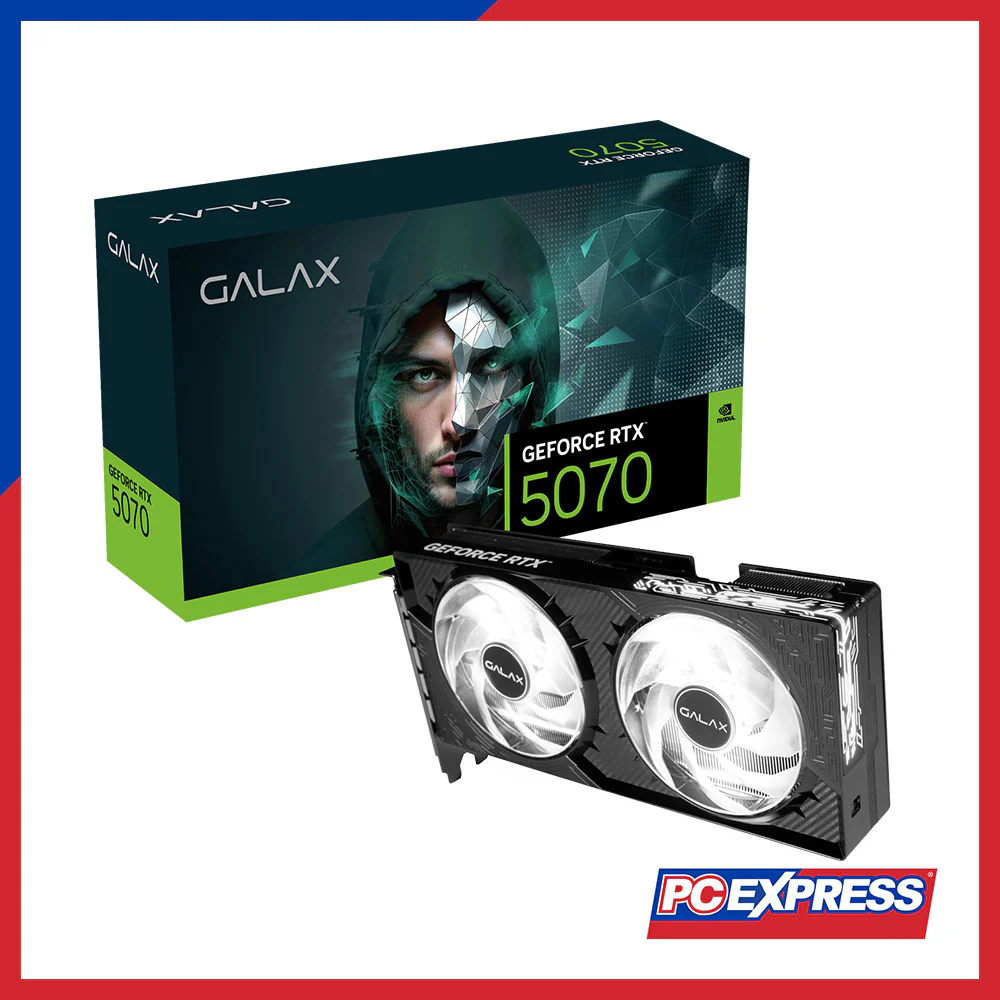

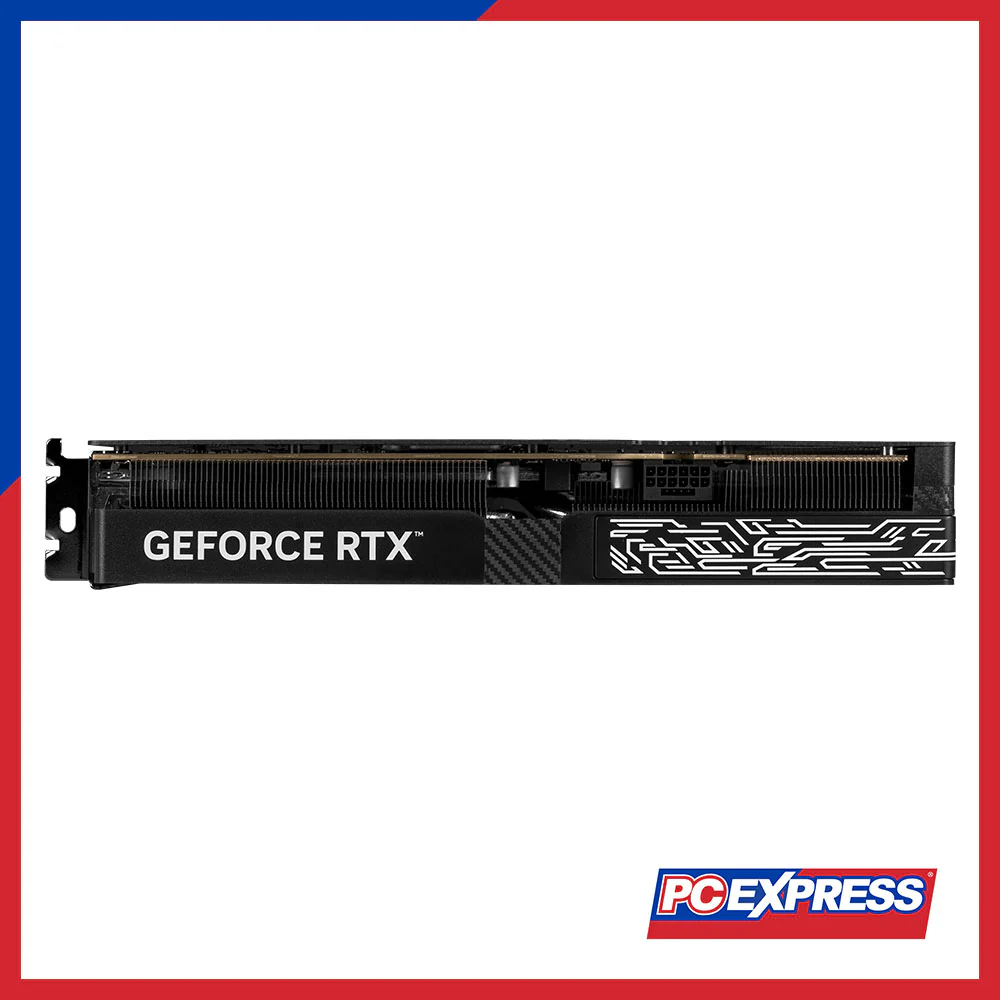

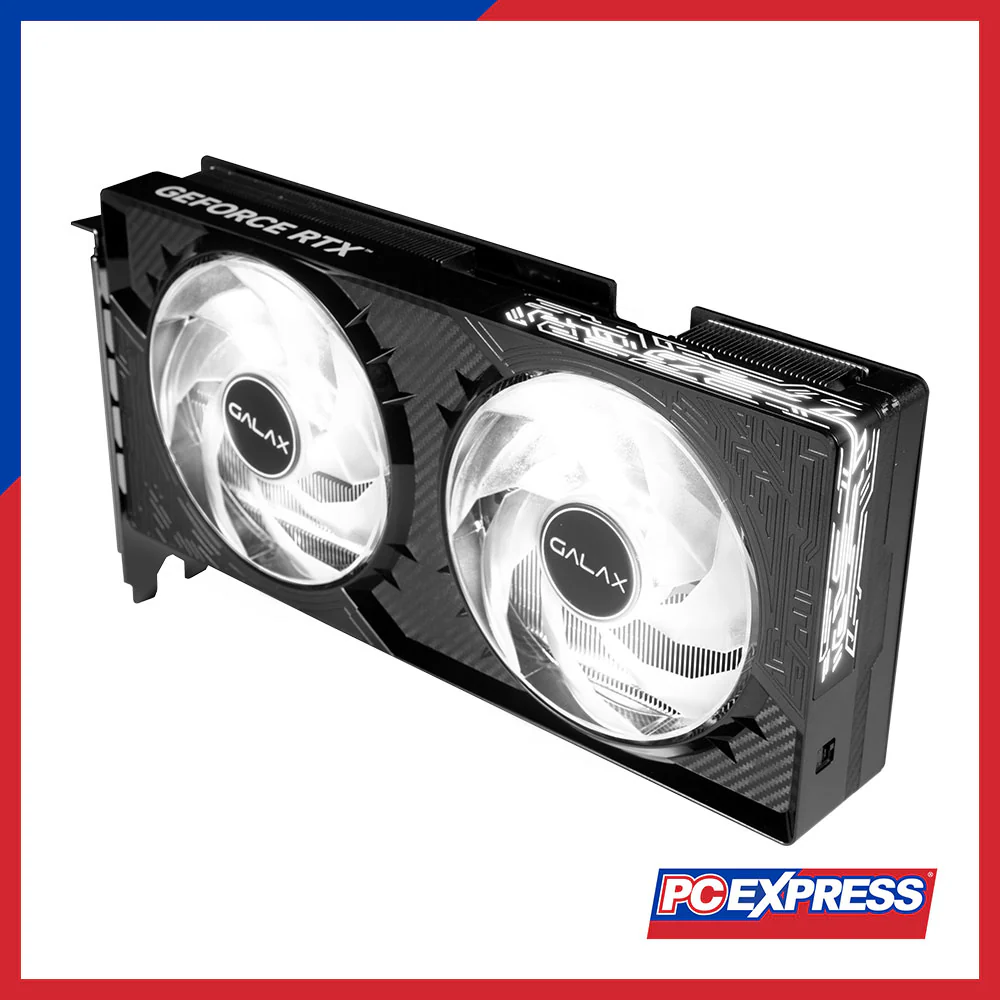

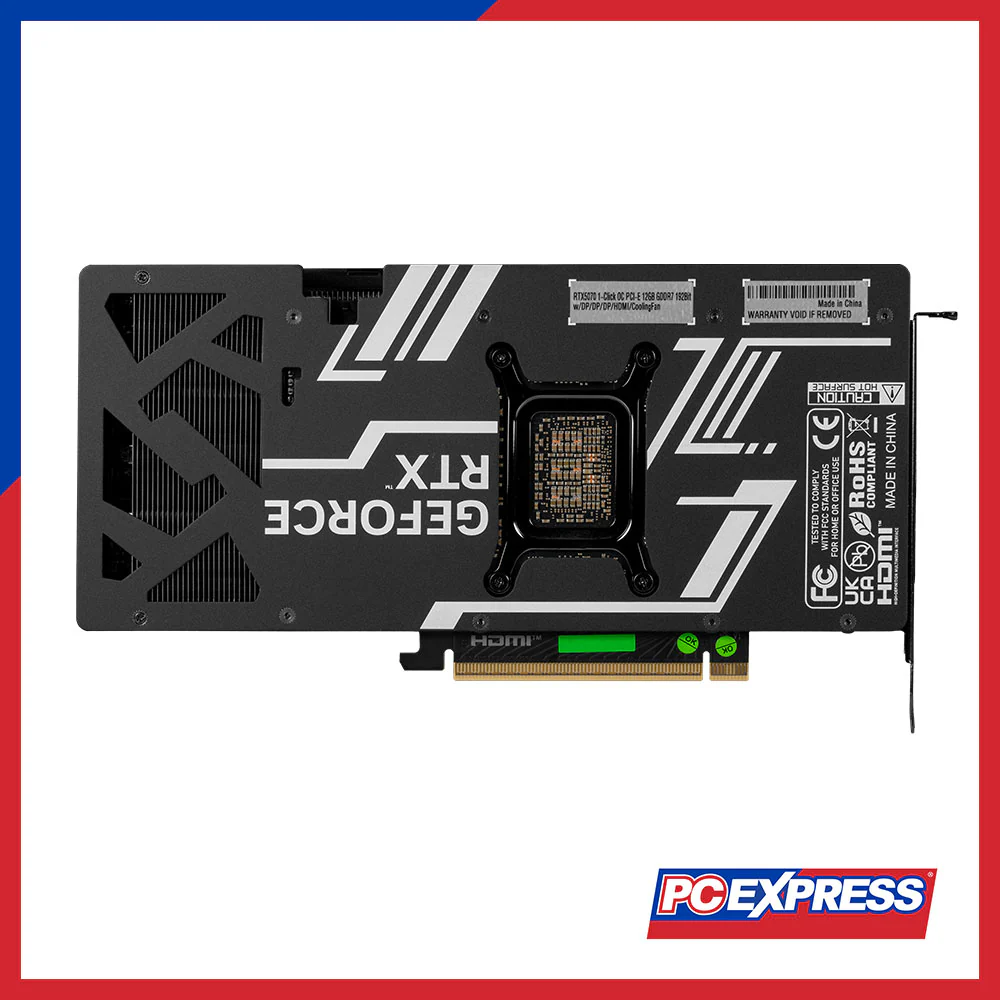

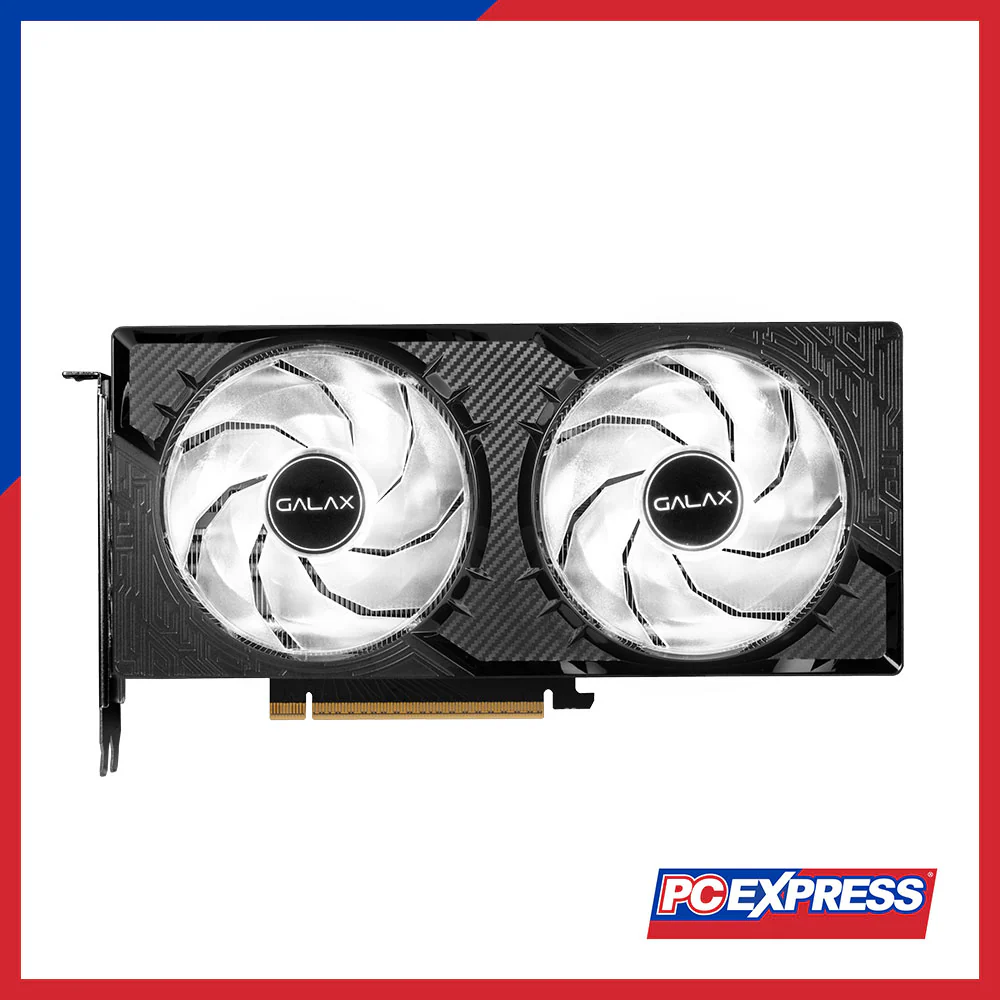

GALAX GeForce RTX™ 5070 1-Click OC 12GB GDDR7 192-bit Graphics Card

Part Number

57NON7MDBROC

Product Name

GALAX GeForce RTX™ 5070 1-Click OC

Memory

12 GB GDDR7

Memory Interface Width

192-bit

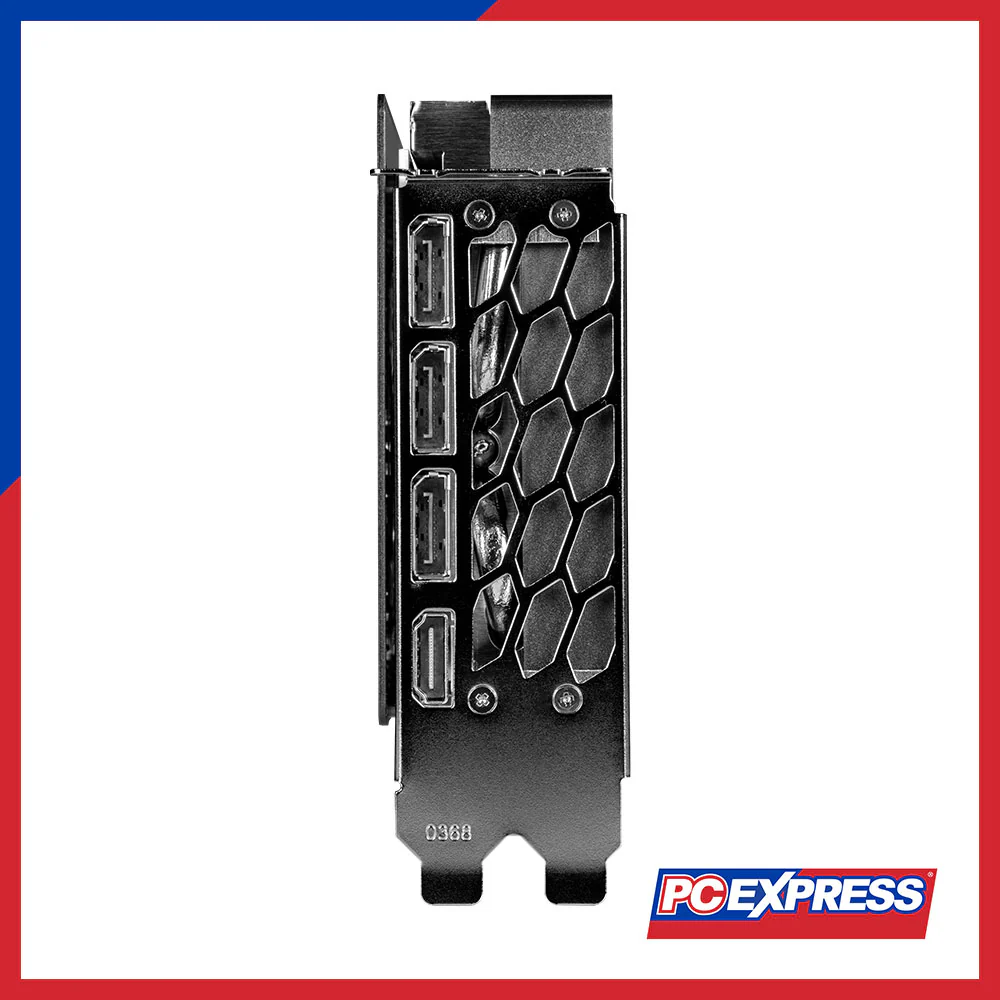

Display Outputs

3 × DisplayPort 2.1b, 1 × HDMI 2.1b

DLSS Version

NVIDIA DLSS 4

Architecture

NVIDIA Blackwell, RTX 50 Series

Product Code

57NON7MDBROC

EAN

4895147158600

Driver Download

Available

High-Res Photo

Available

1-Click OC Support

Yes (via Xtreme Tuner Plus for PC/Android/iOS)

Awards

Gold Award (Game2gether, Germany), Design Award (What Next, Poland)

GPU Engine Specs – CUDA Cores

6,144

GPU Engine Specs – Boost Clock

2,527 MHz

GPU Engine Specs – 1-Click OC Clock

2,542 MHz (via Xtreme Tuner Plus)

Memory Specs – Speed

28 Gbps

Memory Specs – Bandwidth

672 GB/sec

Feature Support – PCI Express

PCI-E 5.0

Feature Support – OS Compatibility

Windows 10/11 64-bit

Fan Feature – Fans

2 × 92 mm

Fan Feature – Technology

WINGS 3.0 with Fan Stop

Display Support – DisplayPort

3 × DisplayPort 2.1b

Display Support – HDMI

1 × HDMI 2.1b

Dimensions – With Bracket

252 × 131 × 40.6 mm

Dimensions – Without Bracket

240 × 115.5 × 39.6 mm (NVIDIA SFF-Ready)

In-Box Accessories

PCIe 1 × 16-pin to 2 × 8-pin adapter
