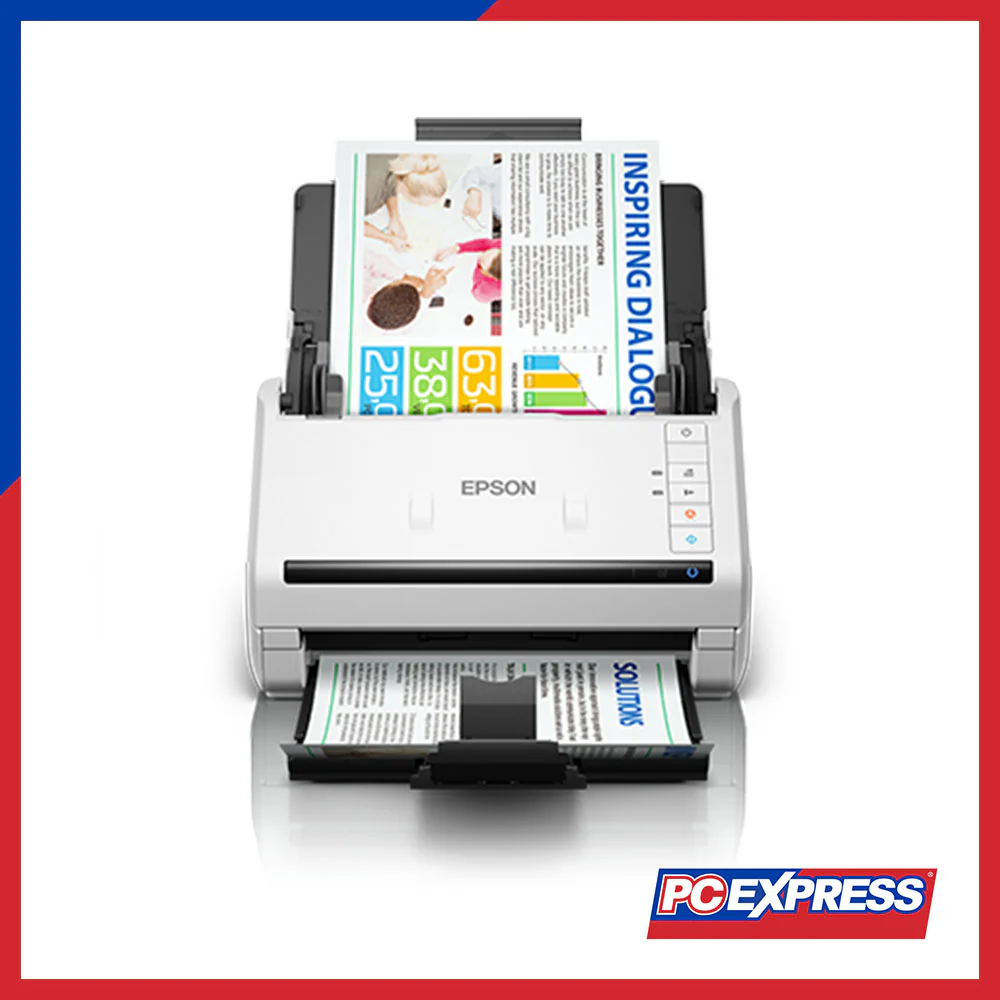

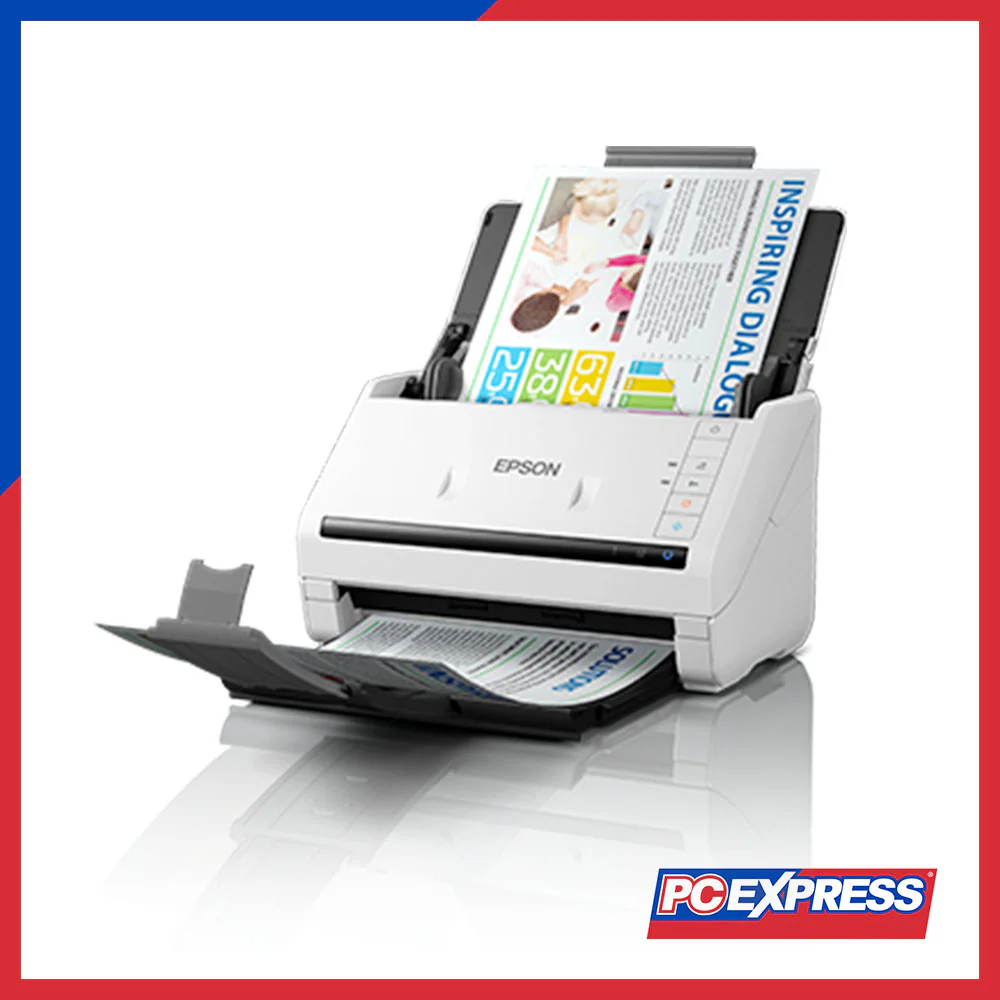

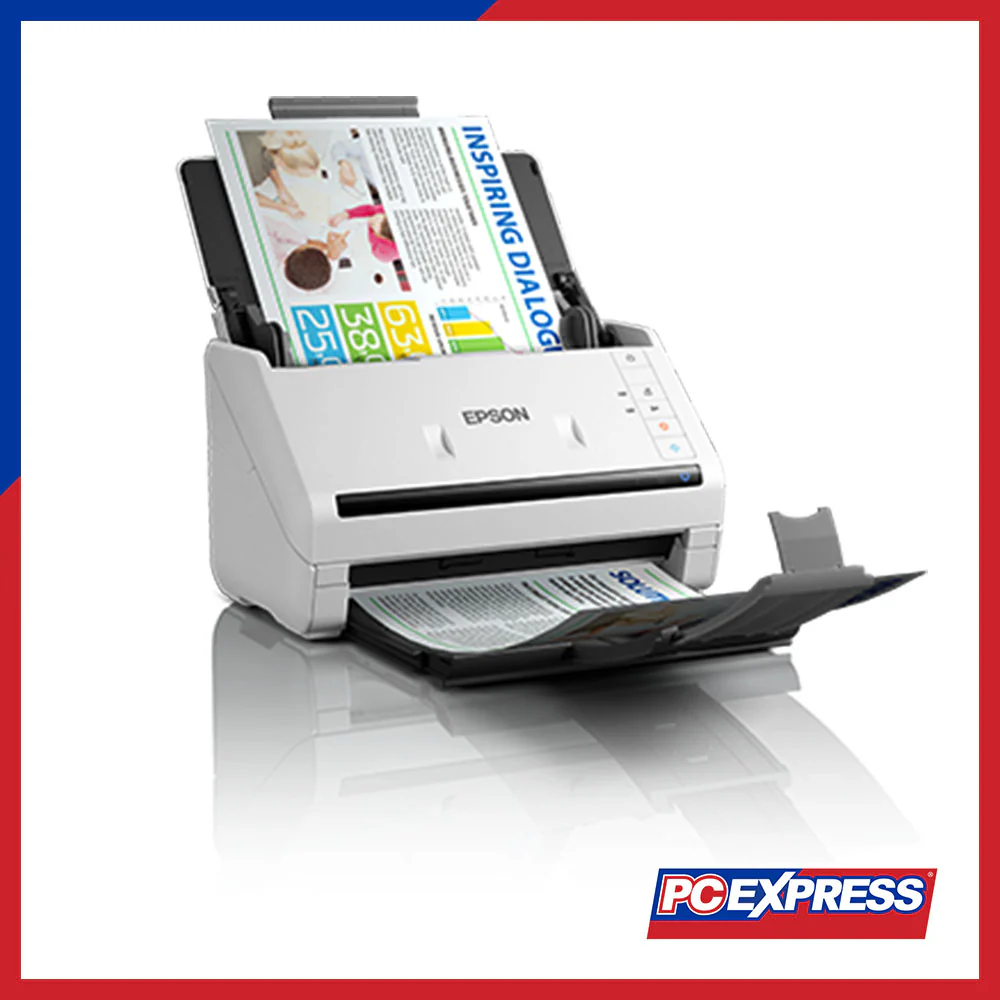

EPSON WorkForce DS-530II A4 Duplex Sheet-fed Document Scanner

Scanner Type

A4 sheet-fed, one-pass duplex colour scanner

Sensor Type

Contact Image Sensor (CIS) × 2

Scanning Method

Fixed carriage and moving document

Light Source

RGB LED × 2

Optical Resolution

600 × 600 dpi

Output Resolution

50–1,200 dpi (1 dpi increments)

Bit Depth

Colour: 30-bit input / 24-bit output
Grayscale: 10-bit input / 8-bit output
Black & White: 10-bit input / 1-bit output

Supported Paper Weight

27–413 g/m² (A8 or less: 127–413 g/m²)

ADF Capacity

50 sheets (80 g/m²)

Daily Scan Volume

Up to 5,500 sheets/day

Multi-feed Detection

Ultrasonic sensor & length detection

Interface

USB 3.2 Gen 1

Max Document Size

215.9 × 6096 mm

Min Document Size

50.8 × 50.8 mm

Scanning Speed (A4)

300 dpi: 35 ppm / 70 ipm
600 dpi: 12 ppm / 24 ipm

Supported OS (Scanner Driver)

Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11
Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022
Mac OS X 10.6.8 or later

Driver Compatibility

TWAIN, SANE, WIA, ICA, ISIS

Bundled Software

Epson Scan 2
ISIS Driver (Web Download)
Epson Scan OCR Component
Epson Scan PDF Extensions
Document Capture Pro (Windows)
Document Capture (Mac)

Software Solutions Compatibility

Epson Device Admin

File Formats (Epson Scan 2)

JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF, BMP*3, PNG

File Formats (Document Capture Pro)

JPEG, JPEG20003, BMP3, PDF, Searchable PDF, TIFF, Multi-TIFF3, PNG, DOCX, XLSX, PPTX3

Flatbed Dock (Option)

Order Code: B12B819011

Roller Assembly Kit

Durability: 200,000 scans
Order Code: B12B819671

Carrier Sheet

Durability: 3,000 scans
Order Code: B12B819051

Cleaning Kit

Order Code: B12B819291

Dimensions (W × D × H)

296 × 169 × 176 mm

Weight

3.7 kg

Operating Temperature

5–35°C

Storage Temperature

–25 to 60°C

Operating Humidity

15–80% (no condensation)

Storage Humidity

15–85% (no condensation)

Rated Voltage

AC 100–240 V

Rated Frequency

50–60 Hz

Power Consumption

Operating: 11 W
Ready Mode: 5.4 W
Sleep Mode: 1.0 W
Power Off: 0.1 W
