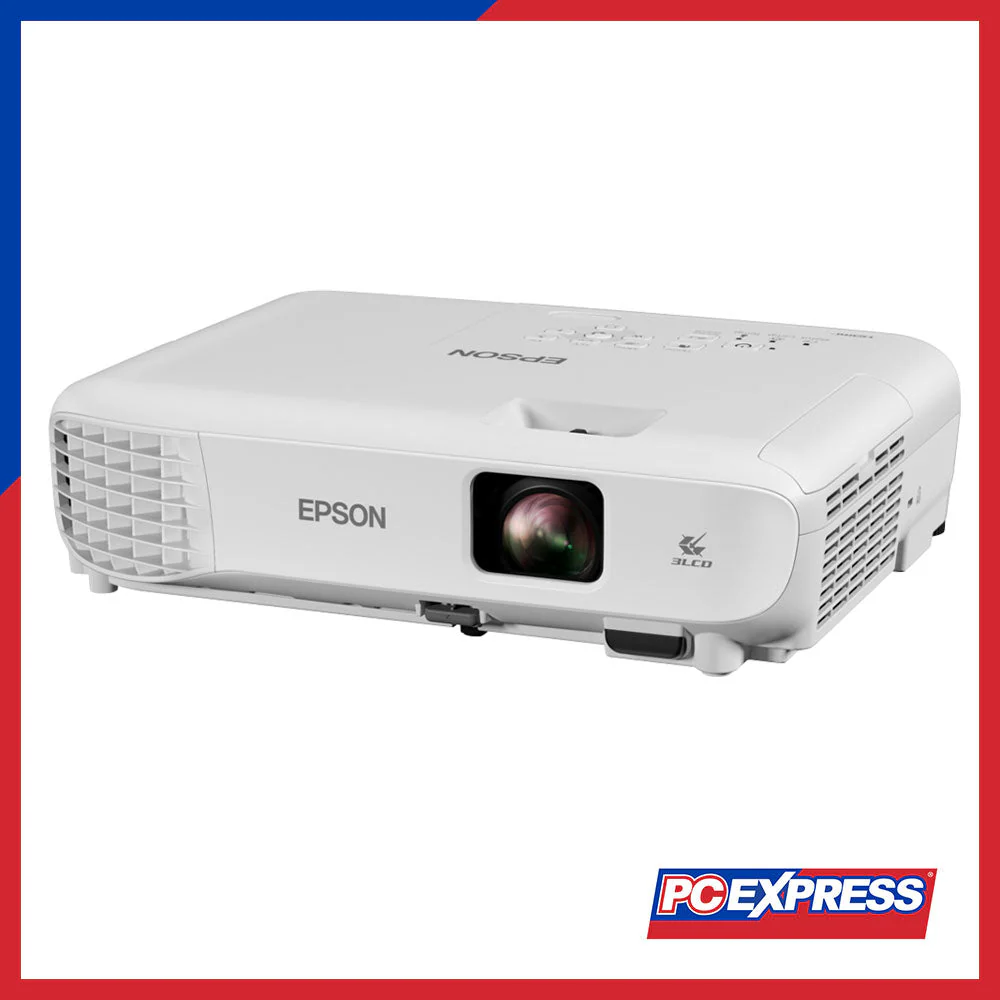

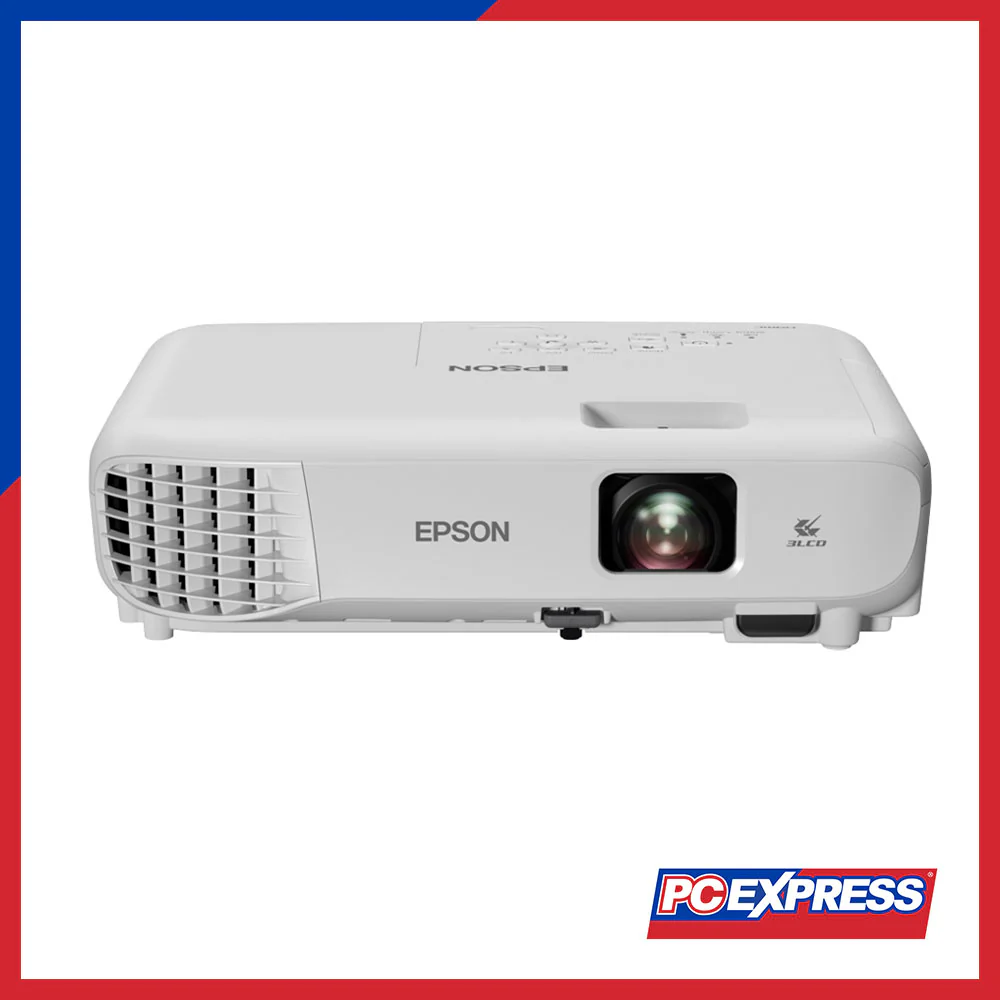

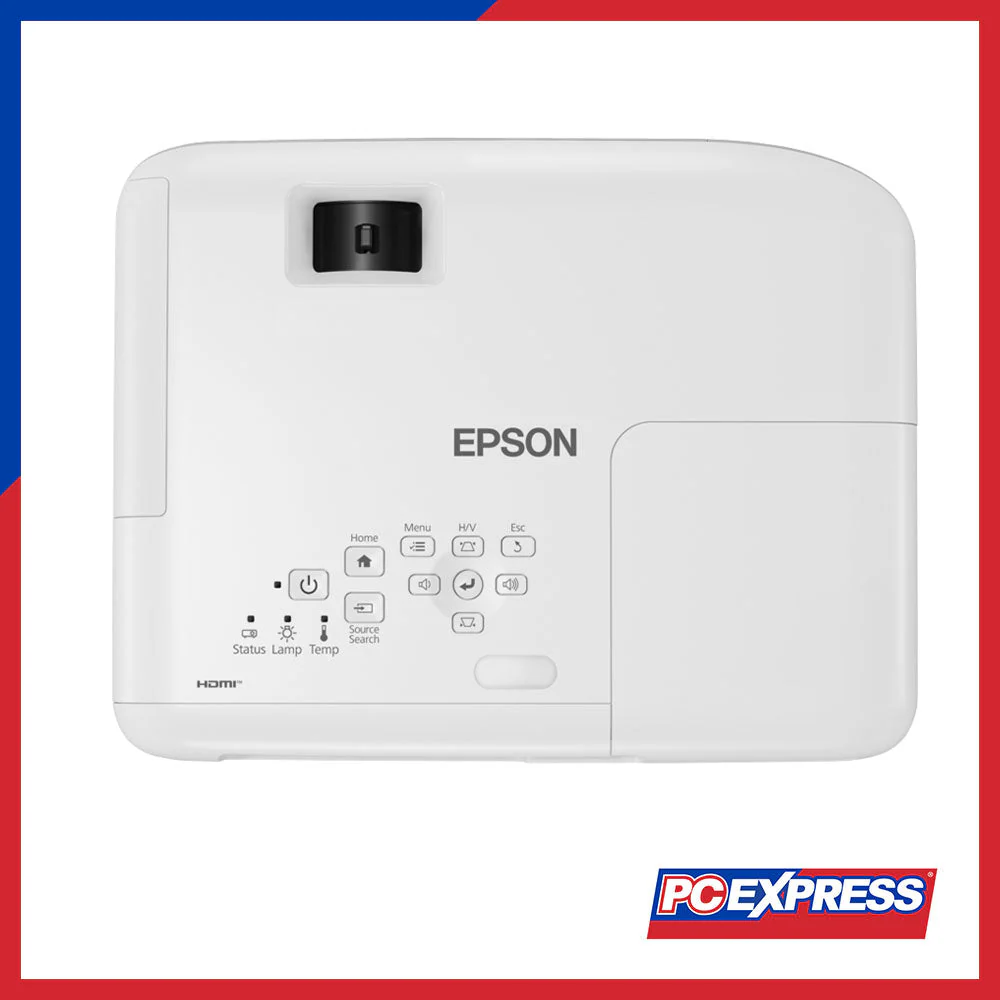

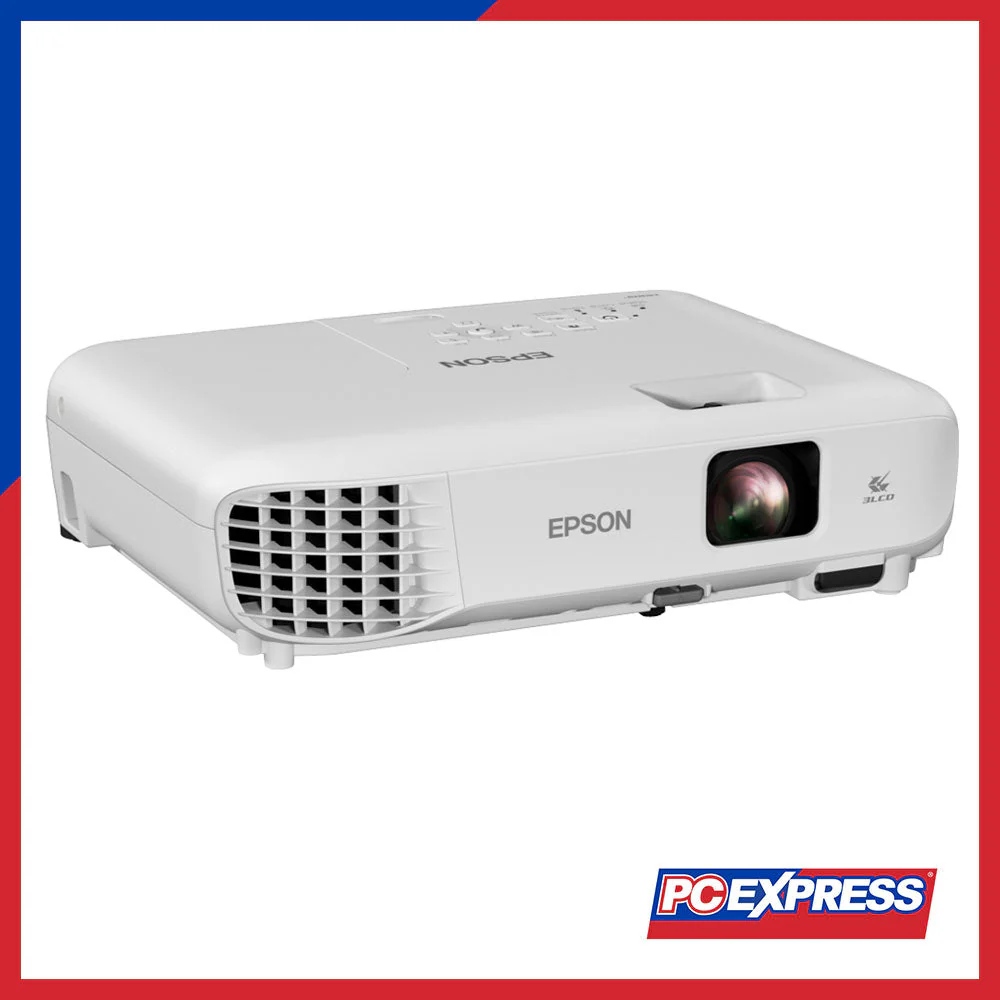

EPSON EB-E01 XGA 3LCD Projector

Projection Technology

RGB liquid crystal shutter projection system (3LCD)

Brightness

White Light Output (Normal/Eco)

3,300 lm

Colour Light Output

3,300 lm

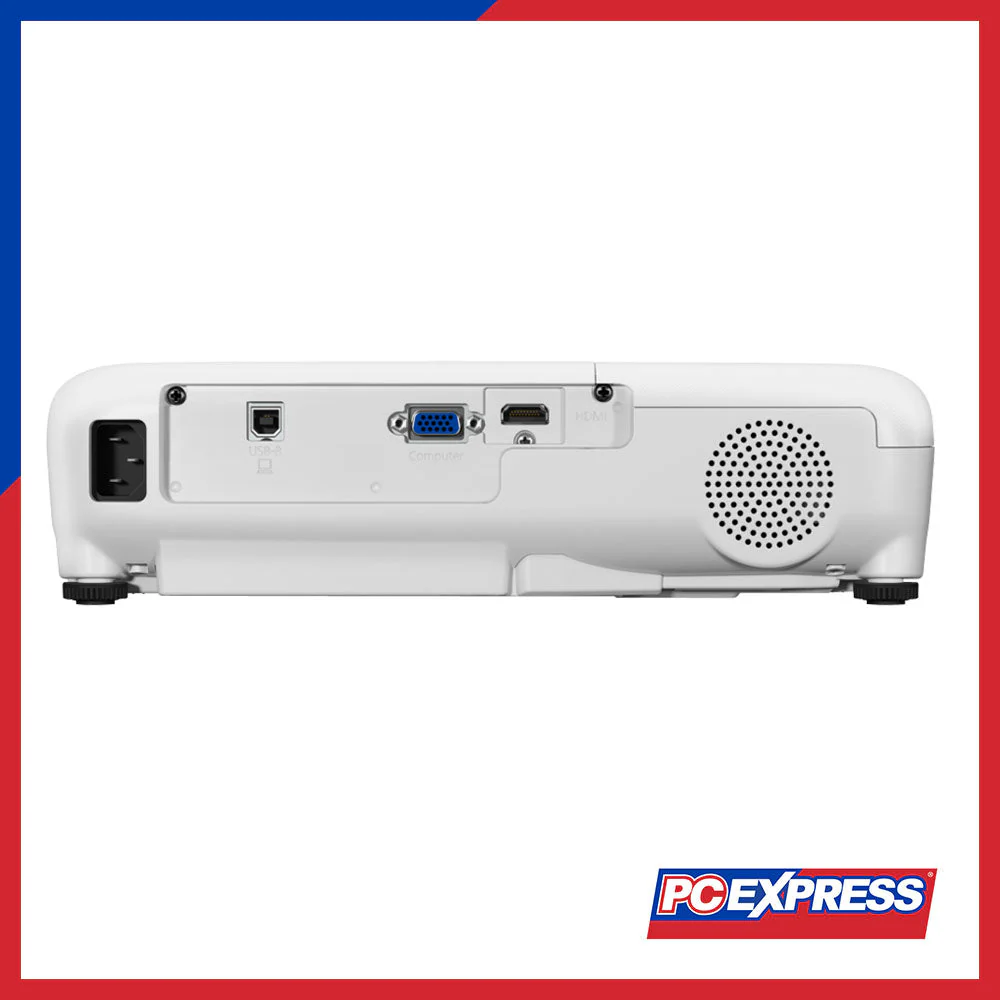

Connectivity

USB Interface

USB Type B: 1 (For Firmware Update, Copy OSD Settings)

Analog Input

D-Sub 15pin: 1

Digital Input

HDMI: 1

Screen Size (Projected Distance)

Standard Size

Tele: 22” to 259” [0.87 to 10.34 m]
Wide: 30” to 350” [0.87 to 10.34 m]

Operating Temperature

Operating Temperature

Low Altitude: 5 – 40 °C <41 – 104 °F> High Altitude: 5 – 35 °C <41 – 95 °F>
(20% – 80% Humidity, No Condensation)

Operating Altitude

Operating Altitude

0 – 3,048 m <0 – 10,000 ft>

Start-Up Period

Start-Up Period

Up to 6 seconds, Warm-up Period: 30 seconds

Cool Down Period

Cool Down Period

Instant Off

Direct Power On/Off

Direct Power On/Off

Yes

Dimension Excluding Feet (W x H x D)

Dimension Excluding Feet (W x H x D)

302 x 77 x 234 mm

Weight

Approx. 2.4 kg

Air Filter

Type

High Efficiency Filter

Maintenance Cycle

6,000 / 12,000 hours*3

Fan Noise

Fan Noise (Normal / Eco)

37dB / 28dB

Power

Power Supply Voltage

100 - 240 V AC ±10%, 50/60 Hz

Projectors Facets

Resolution, Projectors Facets

XGA

Contrast Ratio, Projectors Facets

15,000:1

Brightness Range Lumens, Projectors Facets

2000

Features, Projectors Facets

Quick Corner

Laser / Lamp, Projectors Facets

Lamp

Specifications of Main Parts

LCD

Native Resolution: XGA (1024 x 768)
Size: 0.55” (C2fine)

Lightsource

Type: 210W UHE
Life (Normal / Eco): 6,000 / 12,000 hours

Aspect Ratio

4:3

Projection Lens

Type: No Optical Zoom / Focus (Manual)
F-Number: 1.44
Focal Length: 16.70 mm
Throw Ratio: 1.00 – 1.35 (Digital Zoom)
Zoom Ratio: 1.44 - 1.95 (Wide to Tele)
