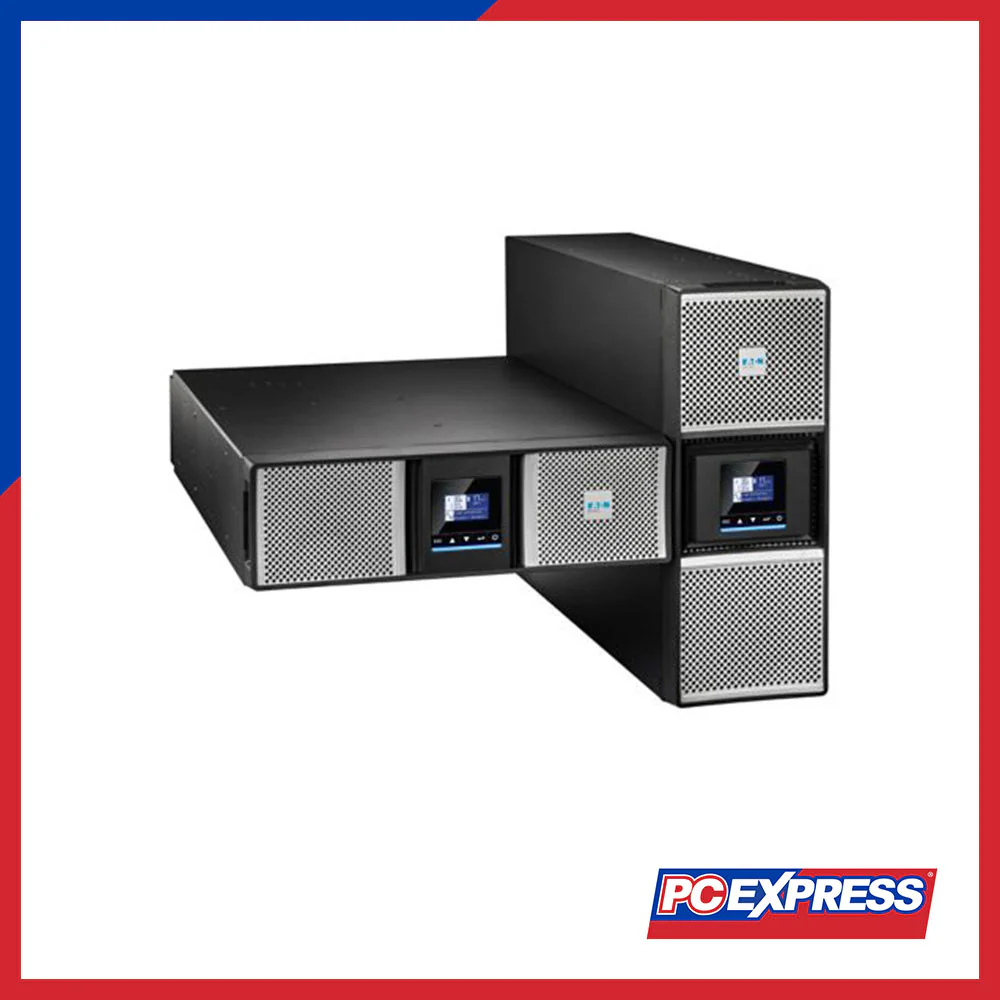

EATON 9PX 1000i RT2U Uninterruptible Power Supply

Models (VA Rating)

1000VA

Rating (VA/W)

1000VA/1000W

Format

RT2U (tower/rack 2U); 2200 & 3000VA also available in RT3U (tower/rack 3U)

Technology

On-line double conversion with Power Factor Correction (PFC) system

Nominal Voltage

200/208/220/230/240V

Input Voltage Range

176–276V without derating (up to 100–276V with derating)

Input Frequency Range

40–70Hz, 50/60Hz auto-selection, frequency converter mode

Efficiency (1000VA)

Up to 91.5% (online mode), up to 97.5% (Hi-efficiency mode)

Efficiency (1500VA)

Up to 92.5% (online mode), up to 97.5% (Hi-efficiency mode)

Efficiency (2200VA)

Up to 93.5% (online mode), up to 98% (Hi-efficiency mode)

Efficiency (3000VA)

Up to 94% (online mode), up to 98% (Hi-efficiency mode)

Input Connections

1000VA: 1 IEC C14 (10A); 1500–3000VA: 1 IEC C20 (16A) or terminal block (HotSwap MBP HW)

Output Connections

8 × IEC C13 (10A); 1500–3000VA: 8 × IEC C13 + 2 × IEC C19 (16A)

HotSwap Outputs

4 FR/Schuko or 3 BS or 6 IEC 10A sockets or terminal blocks (HW version)

Switched Outlet Groups

2 outlet groups

Battery Management

ABM® technology, temperature-compensated charging, automatic battery test, deep discharge protection, auto detection of external battery modules

Backup Time Loads

300W, 500W, 800W, 1200W, 1800W, 2500W

Typical Backup (1000VA)

28 / 16 / 9 mins

1000VA + EBM

134/530, 79/316, 47/188 mins

Typical Backup (1500VA)

38 / 23 / 13 / 7 mins

1500VA + EBM

143/536, 86/319, 52/192, 32/120 mins

Typical Backup (2200VA)

43 / 25 / 15 / 9 / 5 mins

2200VA + EBM

206/818, 123/491, 74/297, 47/189, 29/118 mins

Typical Backup (3000VA)

60 / 36 / 22 / 13 / 7 / 4 mins

3000VA + EBM

221/824, 135/504, 83/307, 52/194, 33/122, 22/82 mins

Communication Ports

USB + RS232 + remote ON/OFF + remote power off + output relay

Communication Slot

1 slot for Network-M2, INDGW-M2, or Relay-MS cards

Operating Temperature

0°C to 40°C

Noise Level

35dB (1000VA), 40dB (others)

Safety Standards

IEC/EN 62040-1, UL 1778, CSA 22.2

EMC Standards

IEC/EN 62040-2, FCC Class B, CISPR22 Class B

Certifications

CE, CB (TUV), cULus, EAC, RCM, KC, Energy Star

UPS Dimensions (1000VA)

86.5 × 440 × 450 mm / 17.4 kg

UPS Dimensions (1500VA)

86.5 × 440 × 450 mm / 18.9 kg

UPS Dimensions (2200VA)

2U: 86.5 × 440 × 605 mm / 25 kg; 3U: 130 × 440 × 485 mm / 24.5 kg

UPS Dimensions (3000VA)

2U: 86.5 × 440 × 605 mm / 27.6 kg; 3U: 130 × 440 × 485 mm / 27.4 kg

EBM Dimensions (1000VA)

86.5 × 440 × 450 mm / 29.8 kg

EBM Dimensions (2200/3000VA)

2U: 86.5 × 440 × 605 mm / 39.2 kg; 3U: 130 × 440 × 485 mm / 38.2 kg
