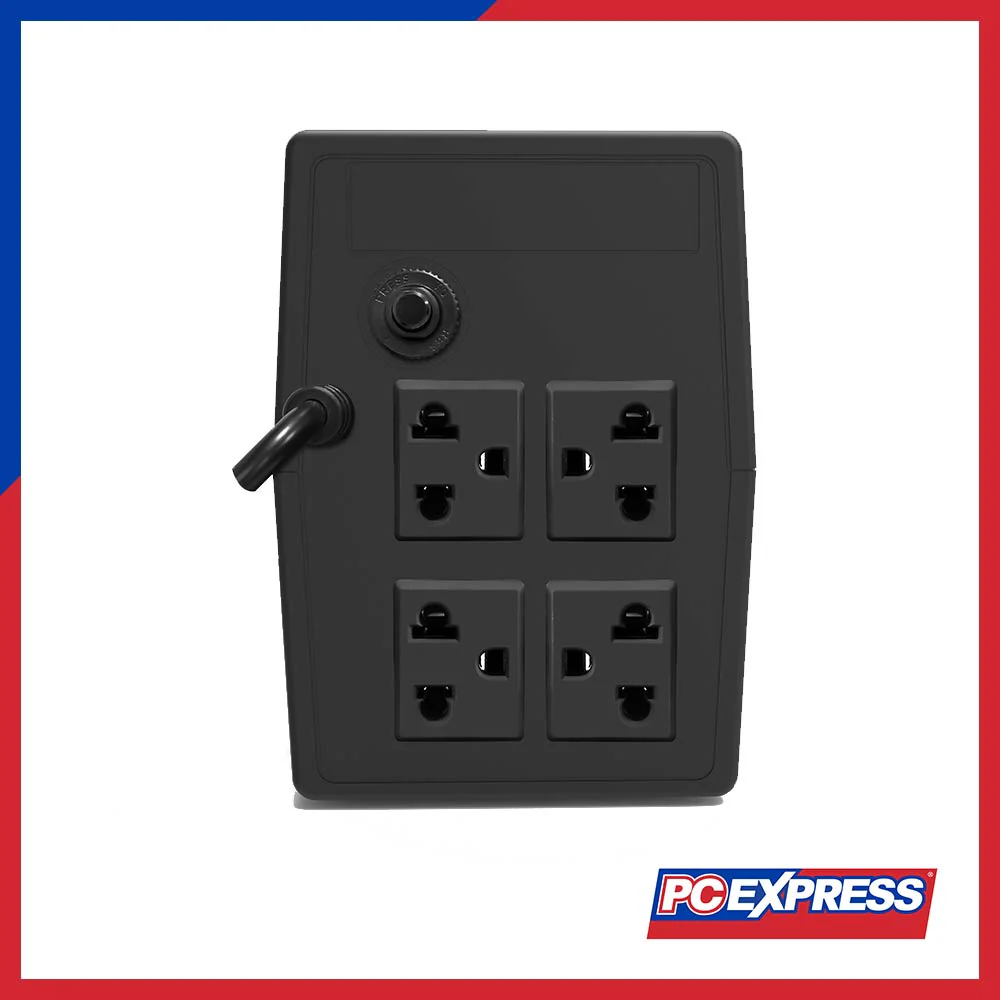

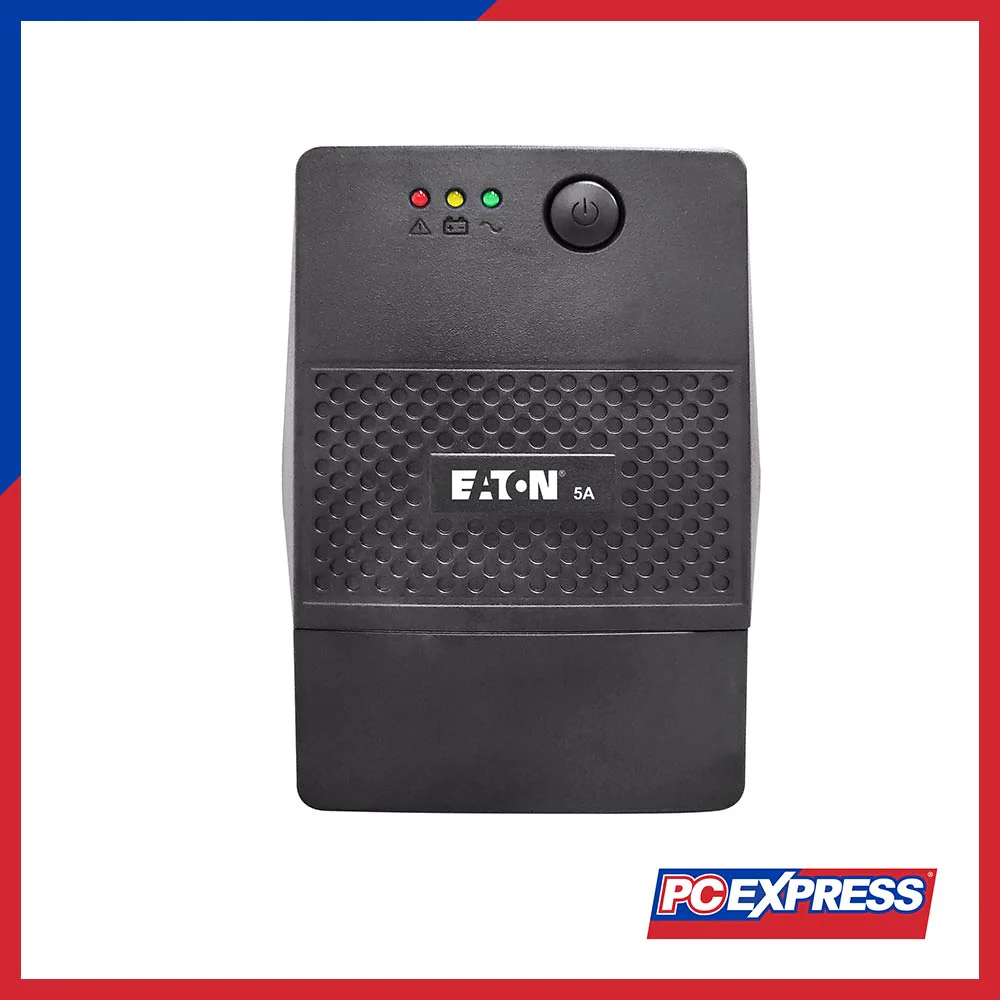

EATON 5A700I-NEMA 700VA Line-Interactive UPS
SPECIFICATIONS
| Rating (VA/W | 700VA/360W |
| Format | Tower |
| Electrical characteristics | |
| Input voltage range | 140–300 VAC |
| Frequency range | 60/50 Hz (Auto sensing) |
| Surge protection | Yes |
| Generator compatible | Yes |
| Mute by power key | Yes |
| Circuit breaker | Yes |
| Output | |
| Output voltage | 230 VAC |
| Output voltage reg. (Battery mode) | ±10% |
| Battery wave form | Stepped sine wave |
| Protection | PCBA current sensor (F/W protection) |
| Output backup socket | DIN model: (2) Schuko outlets NEMA model: (4) NEMA Universal outlets UNI model: (2) Universal outlets |
| Transfer time | 2–6ms typical, 10ms max |
| Battery | |
| Type | 12V/7Ah x1 |
| Floating Charging Voltage | 13.5–13.8V |
| Recharge time | 4–6 hours recover to 90% capacity |
| Typical battery runtime | |
| IT Load (100W) | 18 min |
| 50% load | 5 min |
| 75% load | 1.5 min |
| Interface | |
| On / Off switch | Yes |
| Indicator | LED |
| Communication–USB | No |
| Communication–RS232 | No |
| RJ11 protection | No |
| Physical | |
| Dimension D x W x H (mm) | 297*101*142 |
| Weight (kg) | 4 |
| Package | Color box |
| Part Numbers | |
| Schuko outlets | 5A700I-DIN |
| NEMA outlets | 5A700I-NEMA |
| Universal outlets | 5A700I-UNI |
$9.97
Original: $33.25
-70%EATON 5A700I-NEMA 700VA Line-Interactive UPS—
$33.25
$9.97More Images
EATON 5A700I-NEMA 700VA Line-Interactive UPS
