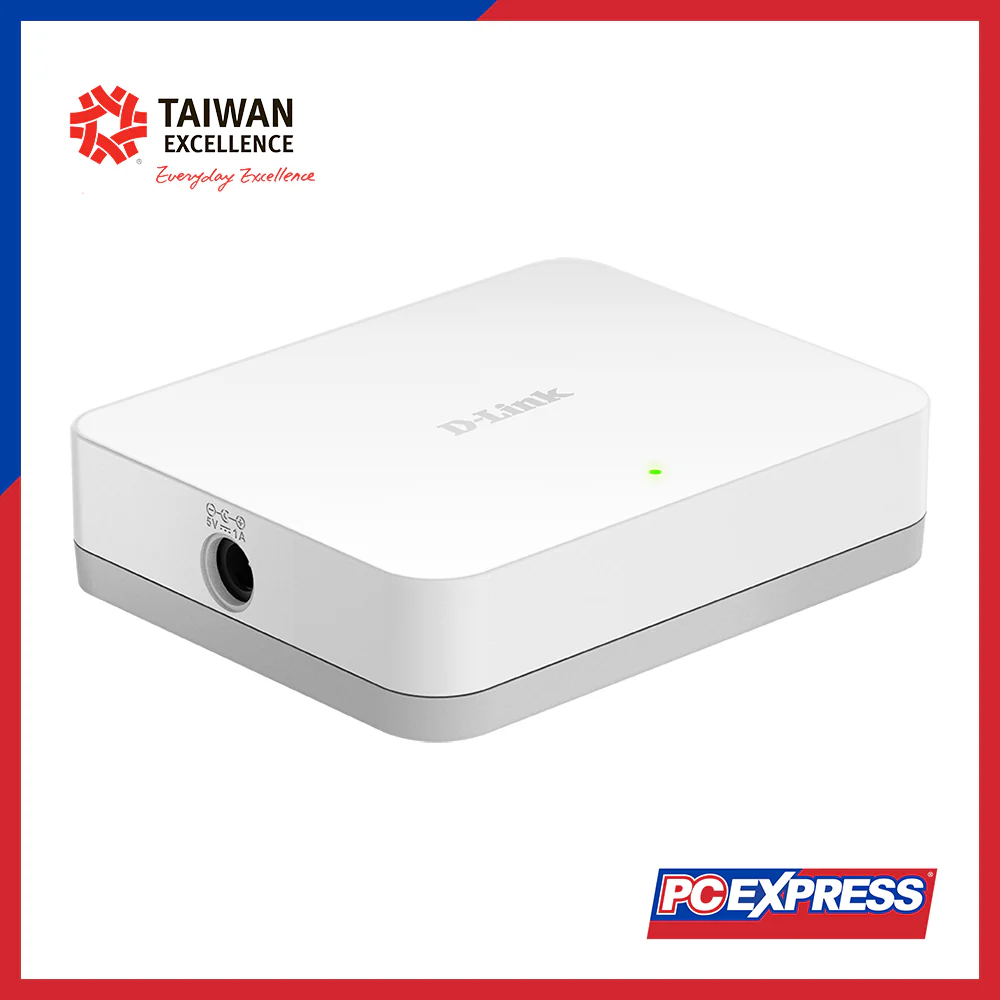

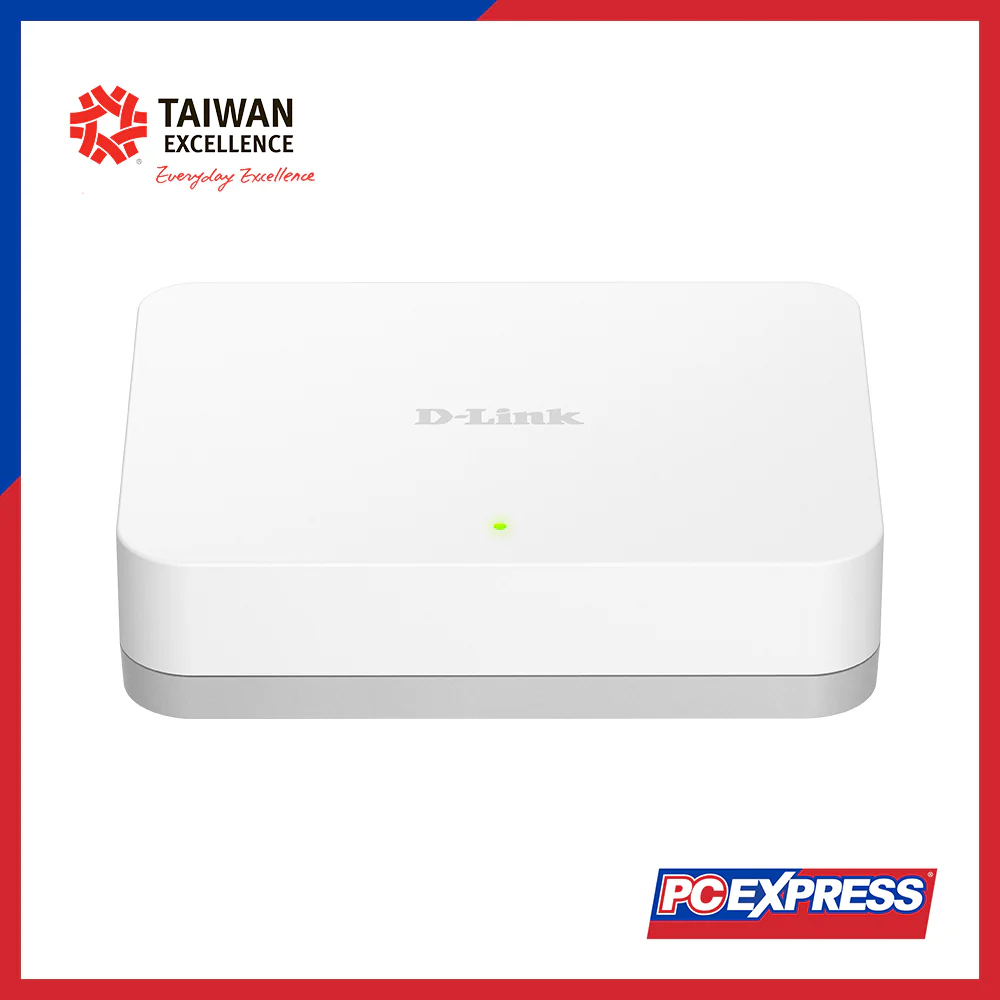

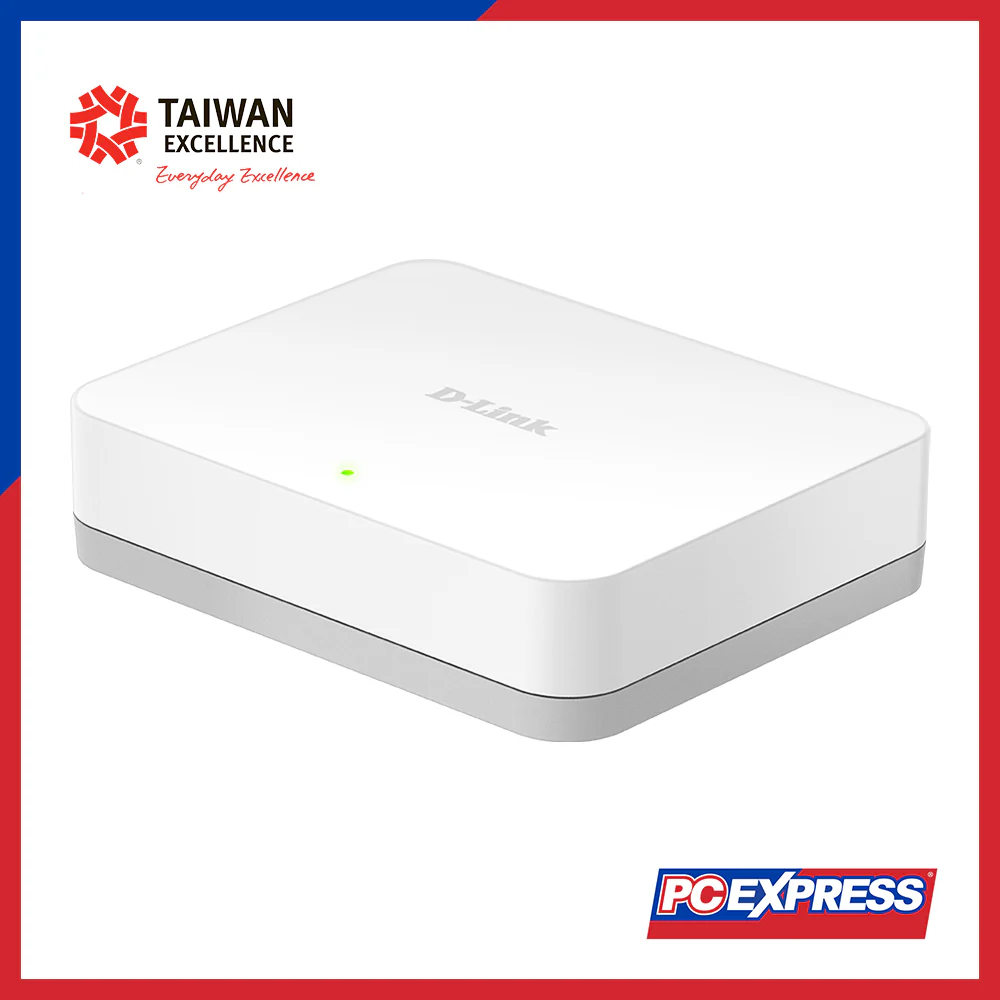

DLINK DGS-1005A 5-Port Gigabit Unmanaged Desktop Switch

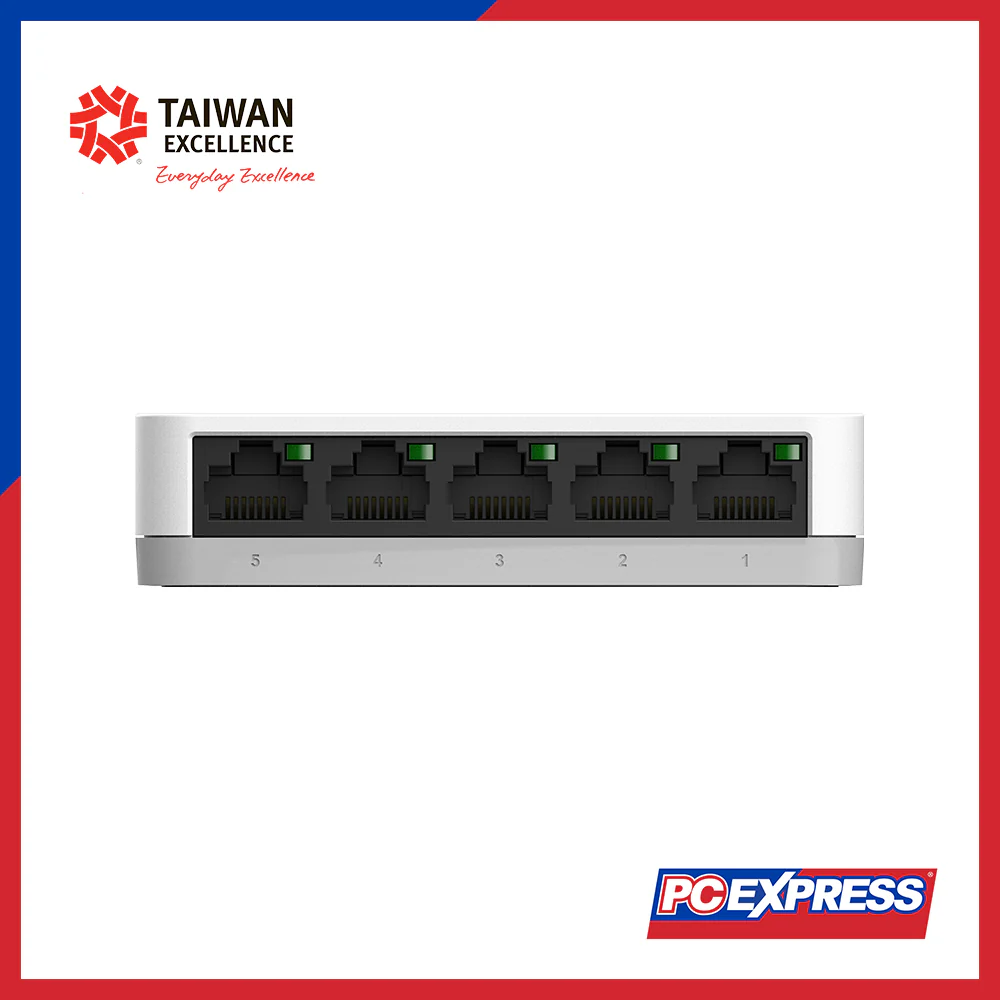

Interfaces

5 x 1000Base-T

Auto MDI/MDIX

Yes

Switching Capacity

10 Gbps

Max. Packet Forwarding Rate

7.44 Mpps

Store & Forwarding Forwarding

Yes

Dimensions

91 x 73 x 22 mm

Weight

800 g

Operating Temperature

0 ~ 40 °C

Storage Temperature

-10 ~ 70 °C

Storage Humidity

0% ~ 95% RH

Operating Humidity

0% ~ 95% RH

Operating Altitude

2000 m

Maximum Power Consumption

3.90 W

Air Discharge

8 kV

Surge/Lightning Protection

AC Power Inet: 1 kV
All Ethernet Ports: 1 kV

Jumbo Frame

9,720 Bytes

Head-of-line (HOL) Blocking Prevention

Yes

Control

802.3x Flow

MAC Address Table Size

4,000

Power Saving By Cable Length

Yes

Power Saving By Link Status

YES

Energy Efficiency Ethernet (EEE)

Yes

Comply with RoHS 6

Yes

FAN

Fanless

Packet Buffer Size

128 KBytes

Flash Memory Size

64 KBytes

Power Input

AC: 100 ~ 240 V

MTBF

1,152,221 hours

Maximum Heat Dissipation

13.299 BTU/h

Standby Power Consumption

0.6 W
