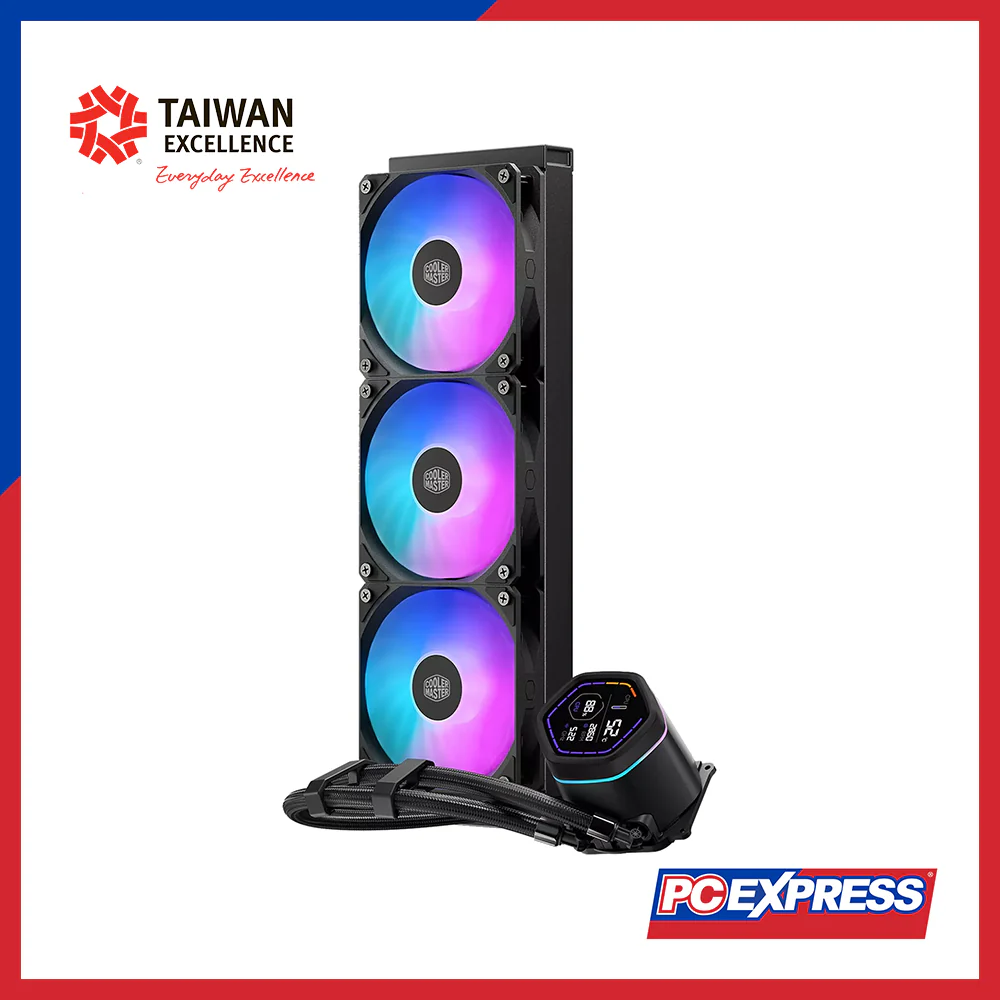

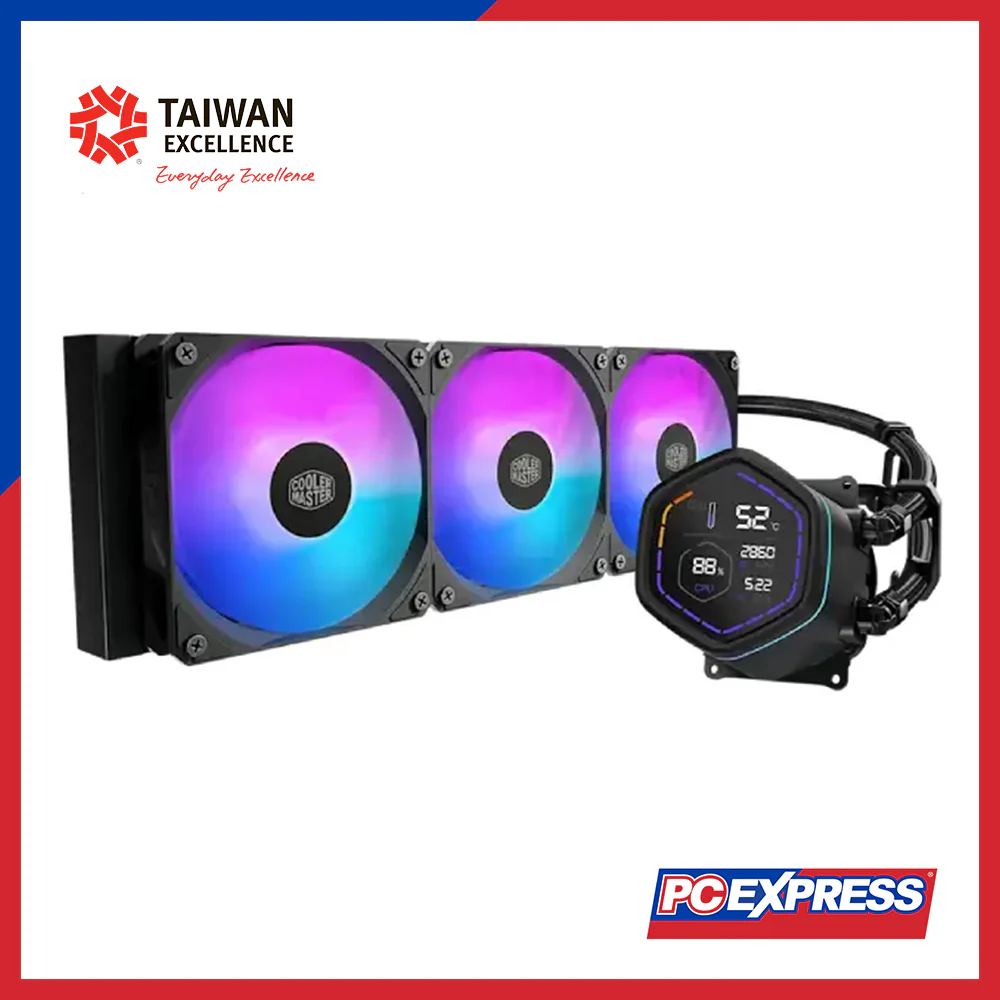

COOLER MASTER Master Liquid Core Nex Digital 360 (MLX-D36M-A18PA-RD) ARGB Liquid CPU Cooler Fan - Black

Series

MasterLiquid

Cooler Type

Liquid Cooler

Radiator Size Options

360mm

Product Number (360 Black)

MLX-D36M-A18PA-RD

CPU Socket (Intel®)

LGA 1851 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150

CPU Socket (AMD®)

AM5 / AM4

Radiator Material

Aluminum

Radiator Dimensions (240)

277 x 119.6 x 27.2 mm (10.9 x 4.71 x 1.1 inch)

Radiator Dimensions (360)

394 x 119.6 x 27.2 mm (15.5 x 4.7 x 1.1 inch)

Pump Dimensions

83.6 x 78.5 x 68.6 mm (3.3 x 3.1 x 2.7 inch)

Pump Lighting

Addressable RGB

Pump Speed

3200 ±10% RPM

Pump MTTF

>35,000 Hours

Pump Noise Level

25 dBA (Max)

Pump Rated Voltage

12 VDC

Pump Connector

3-Pin ARGB + 4-Pin PWM

Digital Panel Type

LED Digital Display

Digital Panel Display Area

50.1 x 54.4 mm (2 x 2.1 inch)

Digital Panel Luminance

120 cd/m²

Digital Panel Rated Voltage

5 VDC

Digital Panel Rated Current

0.12 A ±10%

Digital Panel Safety Current

0.3 A ±20%

Digital Panel Power Consumption

0.6 W

Digital Panel Connector

USB 2.0 9-Pin

Digital Panel Orientation

Software (MasterCtrl) Adjustable

Fan Quantity (240)

2 PCS

Fan Quantity (360)

3 PCS

Fan Dimensions

120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)

Fan Lighting

Addressable RGB

Fan Speed

650–1750 RPM ±10%

Fan Airflow

122.4 m³/h (71.9 CFM) Max

Fan Air Pressure

1.86 mmH₂O Max

Fan MTTF

>40,000 Hours

Fan Noise Level

27.2 dBA Max

Fan Bearing Type

Rifle Bearing

Fan Connector

7-Pin PWM + ARGB

Fan Rated Voltage

12 VDC

Fan Rated Current

0.26 A

Fan Safety Current

0.37 A

Fan Power Consumption (Per Fan)

3.12 W

Fan Power Consumption (Total)

7.2 W

Tube Length

400 mm
