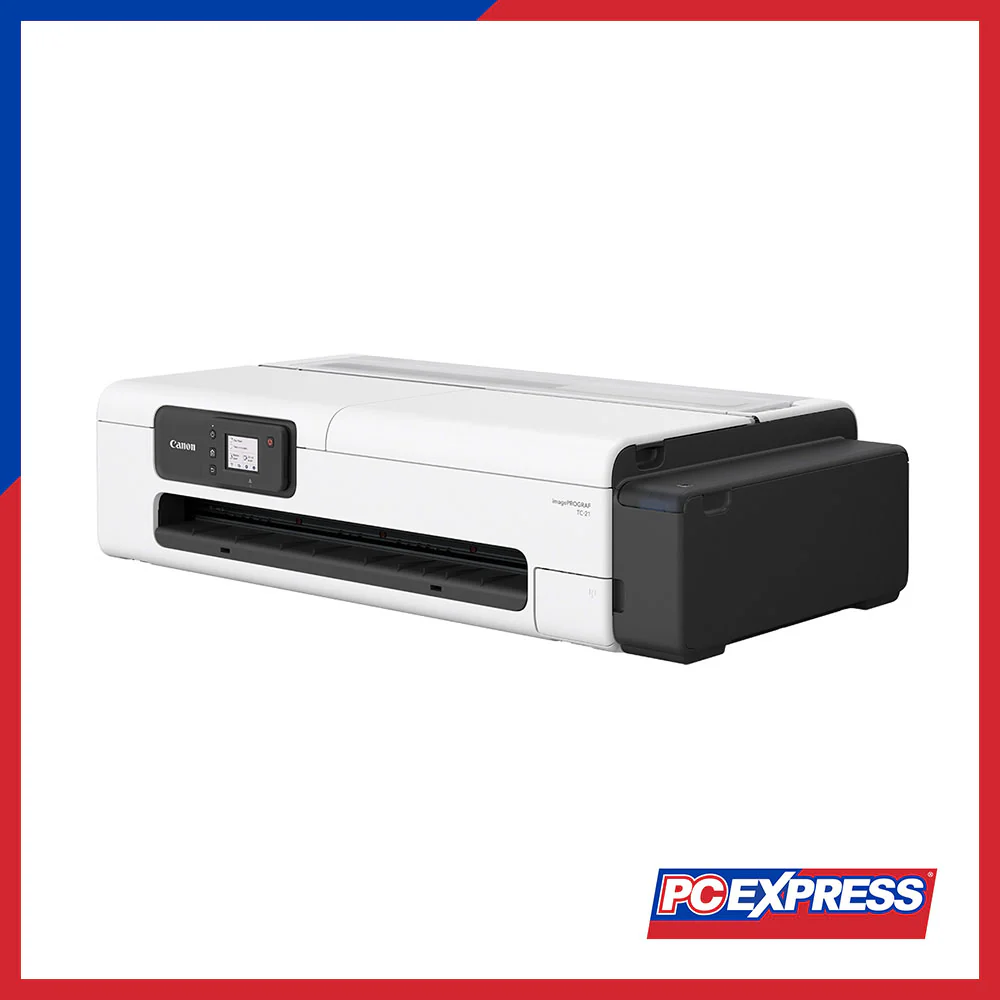

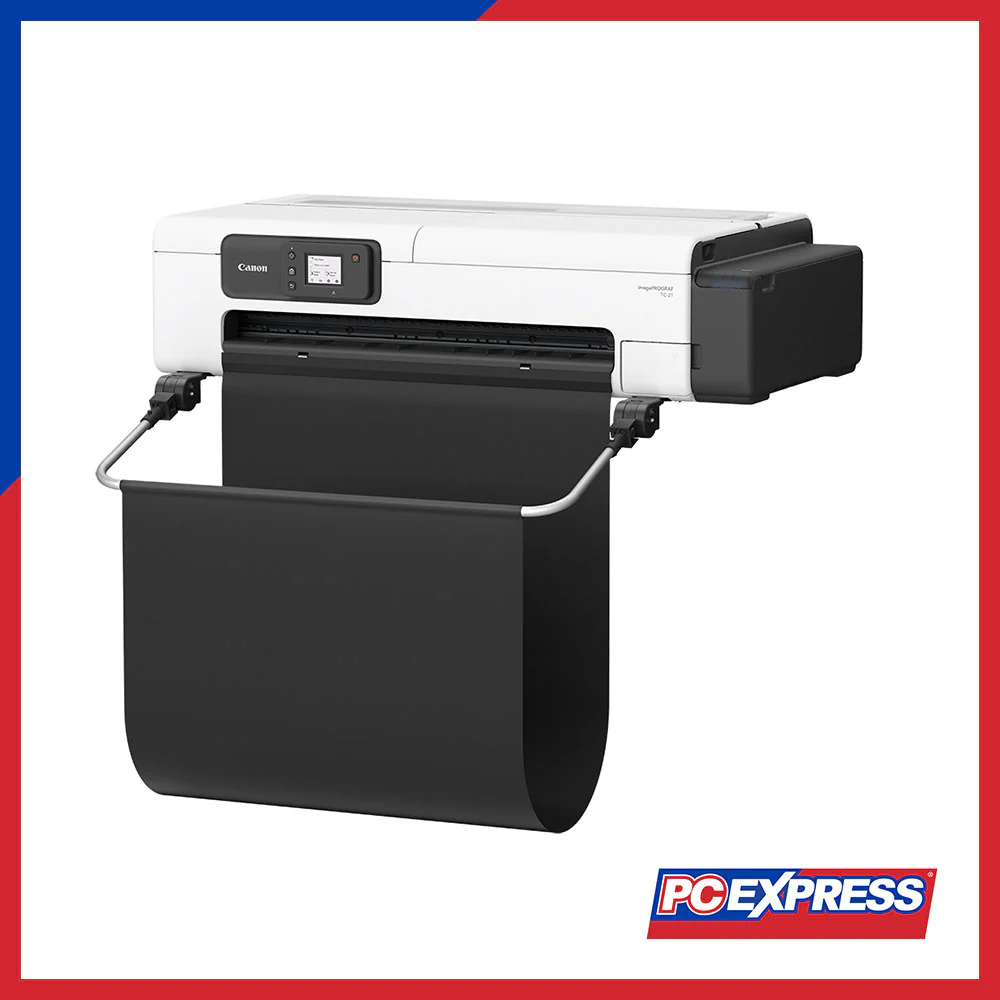

CANON imagePROGRAF TC-21 Large Format Printer

Printer Type

4-Colour 24" (610 mm)

Number of Nozzles

4,352 nozzles (BK 1,280; C/M/Y: 1,024 each)

Maximum Print Resolution

2,400 × 1,200 dpi

Nozzle Pitch

1,200 dpi (2 lines)

Line Accuracy*1

±0.1% or less

Ink Capacity

Sales Ink: 70 ml (BK, C, M, Y)
Bundled Starter Ink: 70 ml (BK, C, M, Y)

Ink Type

Pigment Ink

Printer Language

SG Raster (Swift Graphic Raster)

Printing Solutions

Canon PRINT Inkjet/SELPHY (iOS/Android), Canon Print Service (Android), Free Layout Plus, PosterArtist, Direct Print Plus, PIXUS/PIXMA Cloud Link, ChromeOS

Management Solutions

Media Configuration Tool, Quick Utility Toolbox, Wi-Fi Connection Assistant, Printer Update Utility

Standard Interfaces (Built-in)

USB B Port (Series B, 4 pins)
Hi-Speed USB / Full Speed (12 Mbit/sec) / High Speed (480 Mbit/sec)
Bulk Transfer

IEEE 802.3 10base-T / 100base-TX
SNMP, HTTP, TCP/IP (IPv4/IPv6)

Wireless LAN:
IEEE802.11a/b/g/n/ac
WPA-PSK / WPA2-PSK / WPA3-SAE
WPA-EAP / WPA2-EAP / WPA3-EAP

Standard Memory

1 GB

Hard Disk

—

Display

—

Print Speed

—

CAD Drawing

30 sec (Draft, Monochrome, Plain Paper)

Media Handling

—

Roll Paper

One Roll, Top Load, Front Output

Cut Sheet

Top Load, Front Output*4

Media Width (Roll/Cut Sheet)

Roll: 297–610 mm (A3 to 24")
Cut: 89–297 mm (A3, A4, Letter, A5, A6)

Media Thickness

0.08 – 0.28 mm

Media Core Size

2 inch core

Min. Printable Length (Roll)

203.2 mm

Min. Printable Length (Cut)

127 mm

Max. Printable Length (Roll)

4 m*5

Max. Printable Length (Cut)

1,200 mm

Maximum Outer Roll Diameter

110 mm or less

Borderless Printing

N/A

Margins (Recommended - Roll)

Top/Bottom: 5 mm, Left/Right: 5 mm

Margins (Recommended - Cut)

Top/Bottom: 5 mm, Left/Right: 5 mm

Margins (Printable - Roll)

Top/Bottom: 5 mm, Left/Right: 5 mm

Margins (Printable - Cut)

Top/Bottom: 5 mm, Left/Right: 5 mm

Dimensions (Main Unit)

968 × 613 × 395 mm (opened)
968 × 553 × 395 mm
968 × 593 × 245 mm
968 × 533 × 245 mm

Dimensions (With Stand)

968 × 868 × 1,024 mm (opened)
968 × 720 × 874 mm (closed)

Weight (Main Unit)

32 kg

Weight (With Stand)

43 kg (SD-24)

Packaged Dimensions

—

Printer (Main Unit + Pallet)

1,120 × 726 × 406 mm

Stand + Basket

1,058 × 826 × 270 mm (SD-24)

Packaged Weight (Printer)

45 kg

Packaged Weight (Stand)

20 kg

Power Supply

—

Printing Power

Approx. 28 W

Sleep Mode

Approx. 1.7 W

Power Off

Approx. 0.07 W

Operating Temperature

15 – 30 °C

Humidity

10 – 80% RH (no condensation)

Acoustic Power

Approx. 6.0 Bels

Acoustic Pressure

Operation: ~41.5 dB (A)
Standby: ≤35 dB (A)

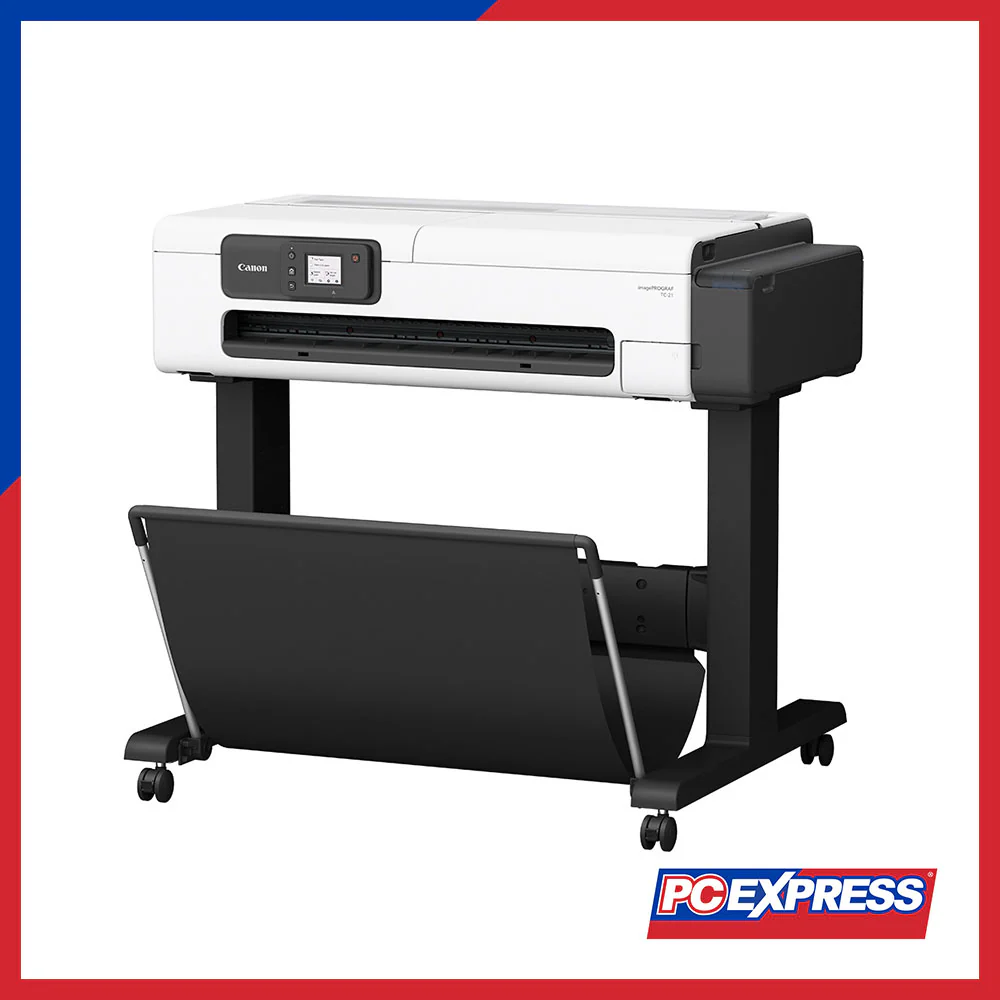

Printer Stand (Optional)

SD-24

Roll Holder

—

Card Reader (uniFLOW)

—

Cutter Blade

—

Ink Tank

PFI-050 (70 ml)
Black / Cyan / Magenta / Yellow

Print Head

PF-08

Maintenance Cartridge

MC-32

Scanner

—

Scan Technology

—

Optical Resolution

—

Scan Width

—

Minimum Scan Width

—

Maximum Scan Length

—

Document Thickness

—

Max Copy Speed (Draft)

—

Max Copy Speed (Standard)

—

Max Copy Speed (Best)

—

Max Scan Speed (Draft)

—

Max Scan Speed (Standard)

—

Max Scan Speed (Best)

—

PC & Software Included

—

Functions

—
