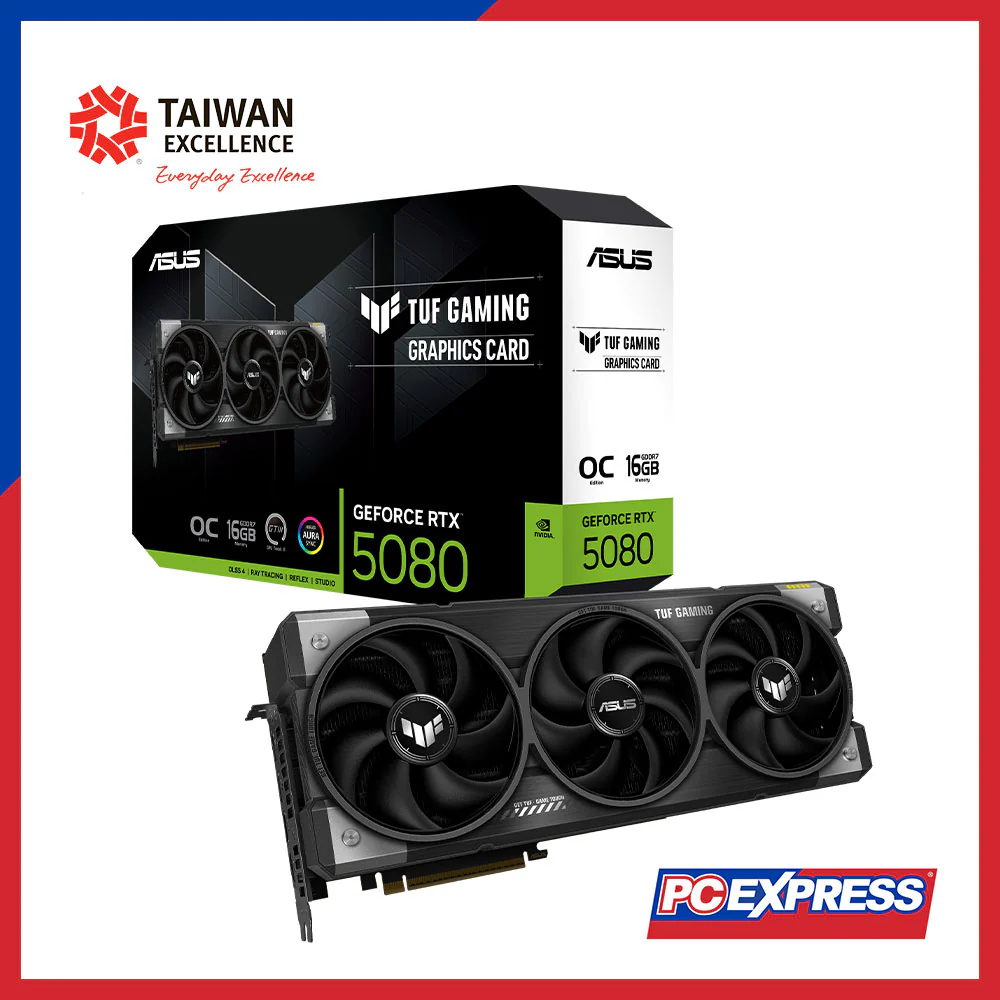

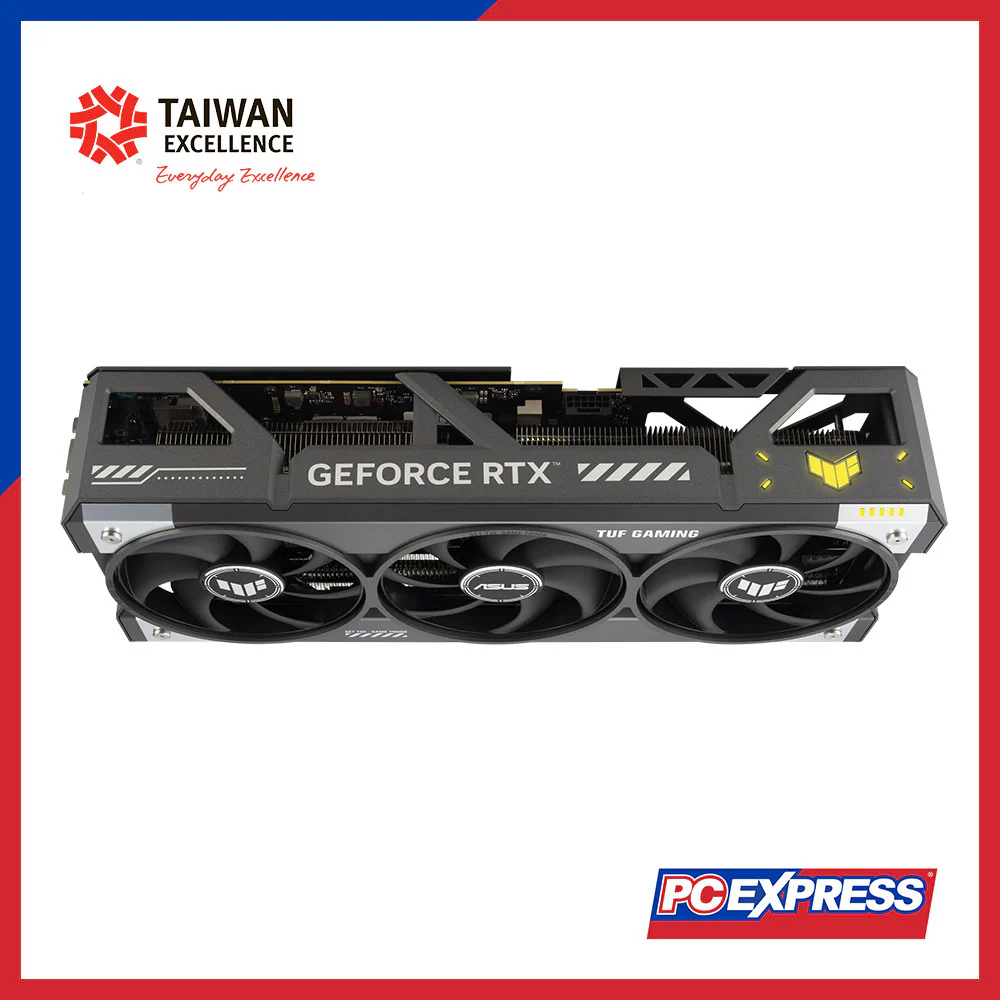

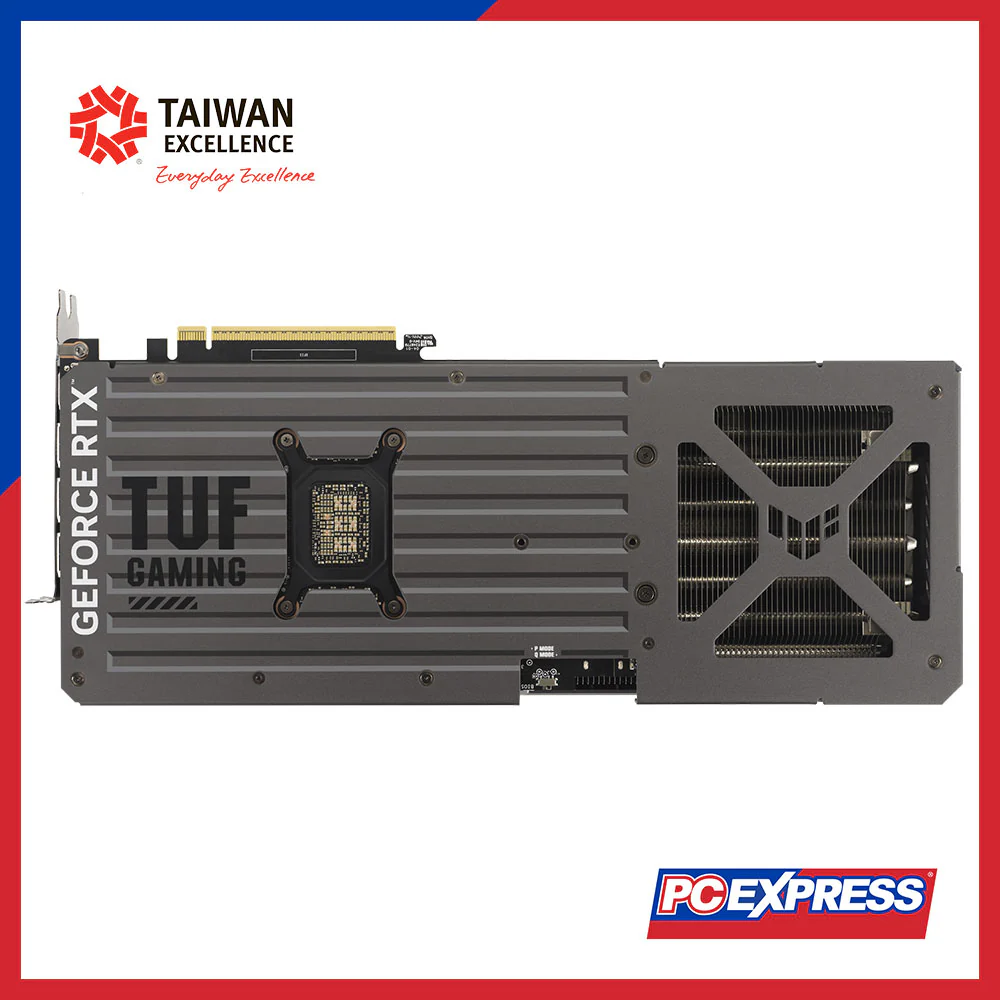

ASUS TUF Gaming GeForce RTX™ 5080 OC Edition 16GB GDDR7 256-bit Graphics Card

Part Number

TUF-RTX5080-O16G-GAMING

Graphic Engine

NVIDIA® GeForce RTX™ 5080

Interface

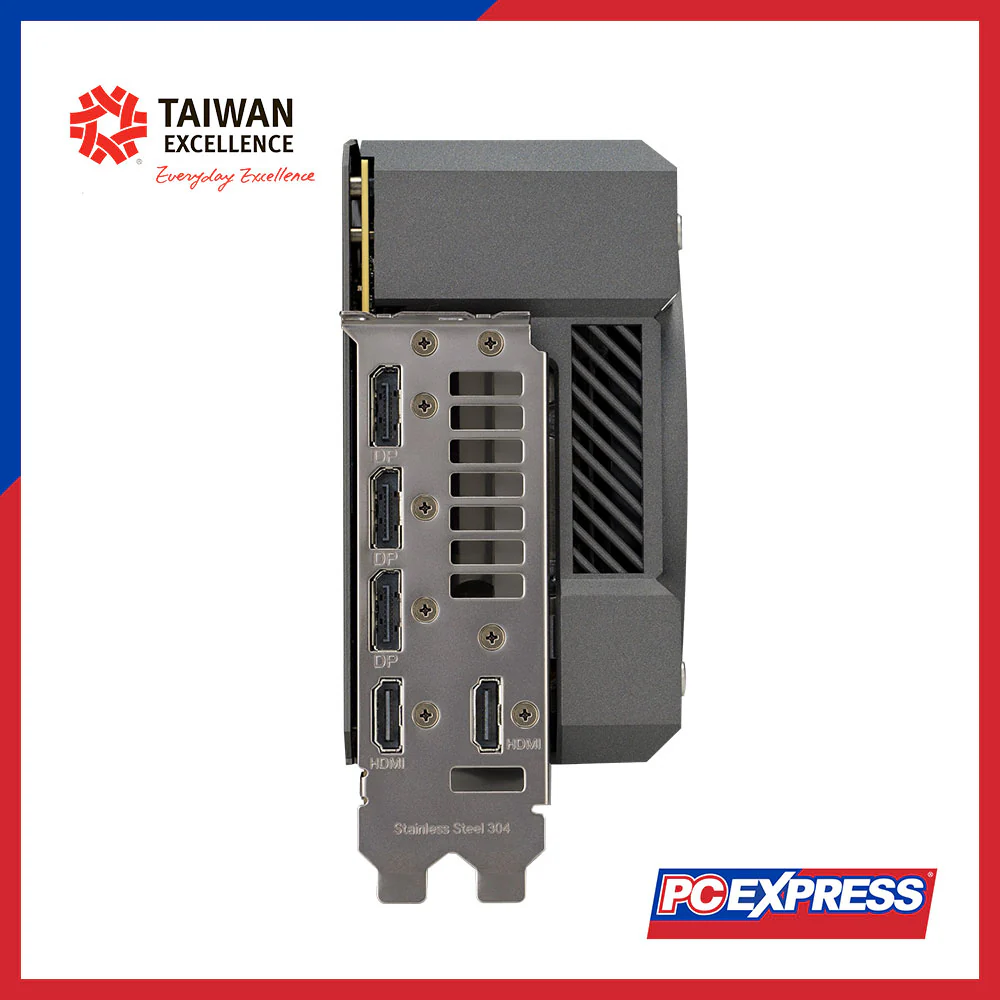

3 x DisplayPort 2.1b (Native)
2 x HDMI 2.1b (Native)

HDCP Support

Yes (2.3)

AI Performance

TBD

Bus Standard

PCI Express 5.0

OpenGL

OpenGL® 4.6

Video Memory

16GB GDDR7

Engine Clock

TBD

CUDA Cores

10,752

Memory Speed

30 Gbps

Memory Interface

256-bit

Resolution

Digital Max Resolution: 7680 x 4320

Maximum Display Support

4

NVLink/Crossfire Support

No

Accessories

- 1 x Speedsetup Manual
- 1 x TUF Graphics Card Holder
- 1 x TUF Velcro Hook & Loop
- 1 x TUF Magnet
- 1 x TUF Gaming Certificate
- 1 x Thank You Card
- 1 x Adapter Cable (1 to 3)

Software

ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver, Studio Driver (download from support site)

Dimensions

348 x 146 x 72 mm
13.7 x 5.7 x 2.8 inch

Recommended PSU

850W

Power Connectors

1 x 16-pin

Slot

3.6 Slot

AURA SYNC

ARGB

Note

*Wattage recommendation is based on a fully overclocked system. For tailored PSU suggestions, visit ASUS PSU page.
*Specifications may change without notice.
Maximum Display Support applies to simultaneous display use.
