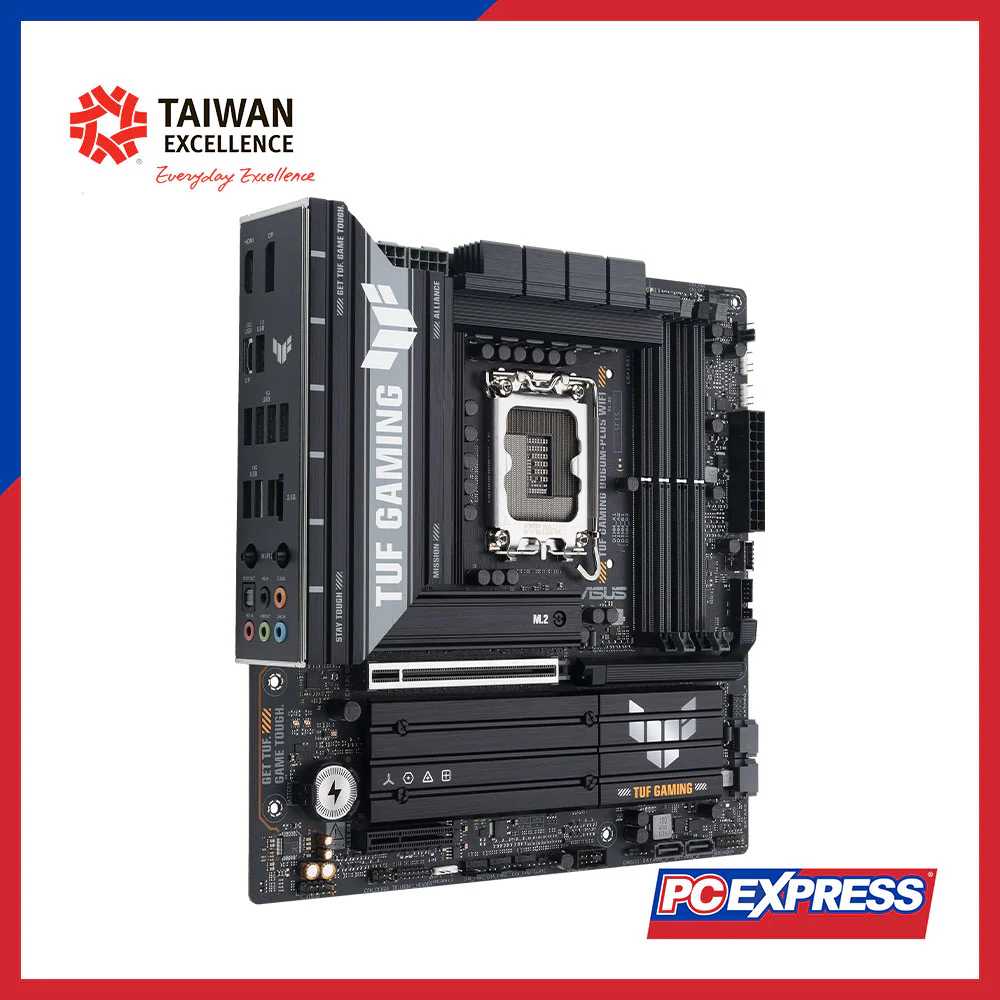

ASUS TUF GAMING B860M-PLUS WIFI Micro-ATX Motherboard

CPU Support

Intel® Core™ Ultra Processors (Series 2), LGA1851, Intel® Turbo Boost Technology 2.0 & 3.0

Chipset

Intel® B860 Chipset

Memory

4 x DIMM slots, max. 256GB, DDR5, up to 8800+MT/s (OC), Dual Channel Memory, Non-ECC, Un-buffered, Intel® Extreme Memory Profile (XMP) support

Graphics

1 x DisplayPort (max. 4K@60Hz), 1 x HDMI™ port (4K@60Hz), 1 x USB 20Gbps (USB Type-C®) with DisplayPort video output

Expansion Slots

1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4

Storage

3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, Intel® Rapid Storage Technology (RAID 0/1/5/10)

Ethernet

1 x Realtek 2.5Gb Ethernet, TUF LANGuard

Wireless & Bluetooth

Wi-Fi 7 (802.11be), 2x2, up to 2.9Gbps, Bluetooth® v5.4

USB Ports

8 x Rear USB (1 x USB 20Gbps Type-C®, 2 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A), 5 x Front USB (USB 10Gbps, 5Gbps, 2.0 headers)

Audio

Realtek 7.1 Surround Sound, Optical S/PDIF out, supports up to 24-Bit/192 kHz playback, Premium audio capacitors, Audio Shielding

Back Panel I/O

1 x USB 20Gbps Type-C® (with DP Alt mode), 2 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A, 1 x DisplayPort, 1 x HDMI™, 1 x Ethernet, 5 Audio jacks, 1 x Optical S/PDIF out

Internal I/O Connectors

1 x 24-pin Main Power, 2 x 8-pin +12V, 3 x M.2 slots, 4 x SATA 6Gb/s, USB headers (10Gbps, 5Gbps, 2.0), 3 x Addressable Gen 2 headers, Clear CMOS header

Special Features

ASUS TUF PROTECTION (DIGI+ VRM, TUF LANGuard, SafeSlot), ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release), ASUS Thermal Solution (M.2 heatsinks, VRM heatsink)

Software Features

Armoury Crate, AURA Sync, Fan Xpert 2+, TurboV Core, TUF GAMING CPU-Z, DTS Audio Processing, WinRAR, Norton 360 for Gamers (60 Days Free Trial)

BIOS

UEFI AMI BIOS, 2 x 128Mb Flash ROM, ASUS CrashFree BIOS 3, EZ Mode, MyHotkey

Manageability

WOL by PME, PXE

Accessories

2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 2 x M.2 Rubber Packages, 1 x TUF Gaming sticker, 1 x Screw package for M.2 SSD, Quick start guide

Operating System

Windows 11 (22H2 & later)

Form Factor

mATX, 9.6 x 9.6 inches (24.4 cm x 24.4 cm)
