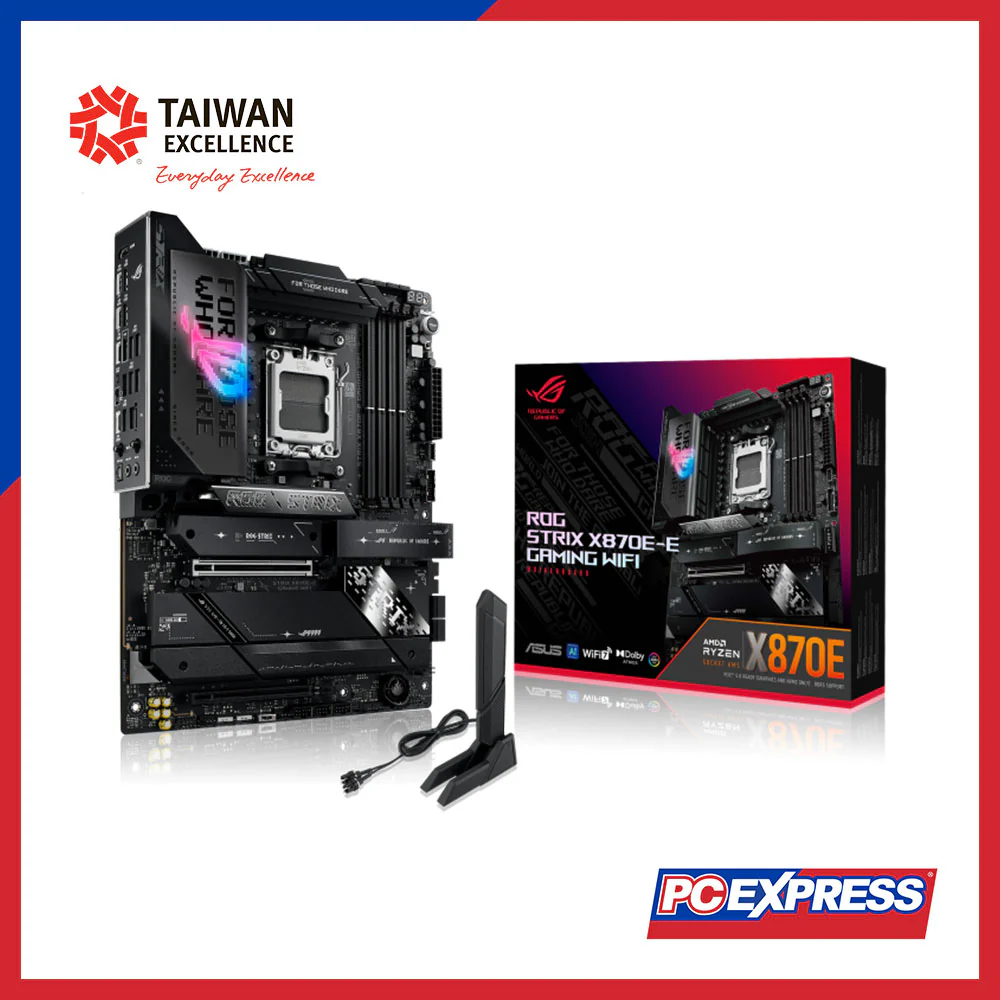

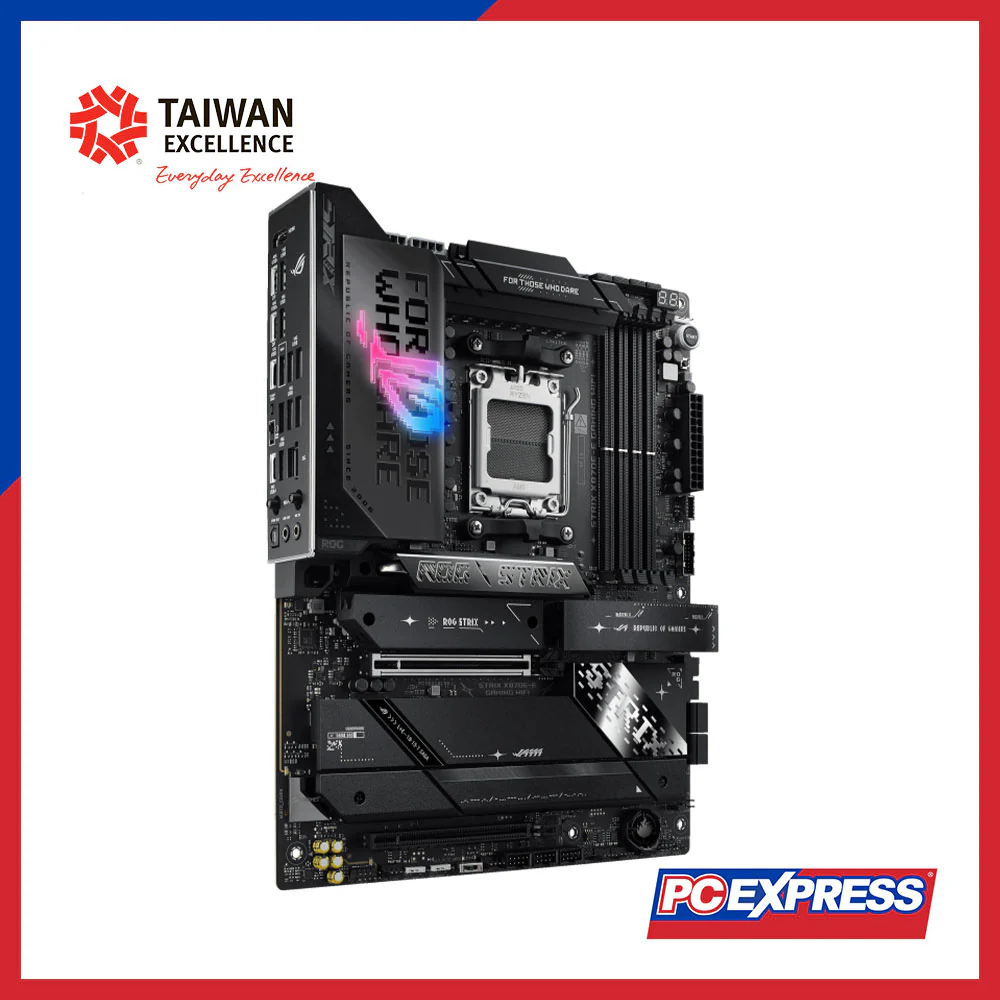

ASUS STRIX X870E-E GAMING WIFI ATX Motherboard

Model

ROG STRIX X870E-E GAMING WIFI

CPU

AMD Socket AM5 for AMD Ryzen™ 9000, 8000, 7000 Series Desktop Processors

Chipset

AMD X870E

Memory

4 DIMM slots, up to 192GB DDR5, supports up to 8400+ MT/s (OC), AMD EXPO™, AEMP, NitroPath DRAM, Dual Channel, ECC & Non-ECC Un-buffered DIMM (on-die ECC)

Graphics

- 1 x HDMI™ (4K@60Hz)
- 2 x USB4® (40Gbps, Type-C®, DisplayPort 1.4a)

Expansion Slots

- 1 x PCIe 5.0 x16 (Ryzen™ 9000, 7000)
- 1 x PCIe 4.0 x16 (Ryzen™ 8000, x8/x4)
- 1 x PCIe 4.0 x16 (x4)

Storage

- 5 x M.2 slots (PCIe 5.0/4.0 support varies by CPU)
- 4 x SATA 6Gb/s ports (RAID 0/1/5/10)

Ethernet

1 x Realtek 5Gb Ethernet with ASUS LANGuard

Wireless

Wi-Fi 7 (2x2), supports 2.4/5/6GHz, Bluetooth® v5.4

Rear USB

- 2 x USB4® (40Gbps, Type-C®)
- 1 x USB 20Gbps (Type-C®, 30W PD Fast-charge)
- 10 x USB 10Gbps (9 x Type-A, 1 x Type-C®)

Front USB

- 1 x USB 20Gbps (Type-C®)
- 2 x USB 5Gbps headers (4 ports)
- 3 x USB 2.0 headers (6 ports)

Audio

ROG SupremeFX 7.1 (ALC4080), 32-bit/384 kHz playback, gold-plated jacks, Savitech SV3H712 AMP, optical S/PDIF

Back Panel I/O

HDMI™, 2 x USB4®, 1 x USB 20Gbps (PD), 10 x USB 10Gbps, Wi-Fi module, Ethernet, audio jacks, S/PDIF, BIOS FlashBack™, Clear CMOS

Cooling

- 1 x 4-pin CPU fan header
- 1 x 4-pin CPU OPT fan header
- 1 x 4-pin AIO pump header
- 5 x 4-pin chassis fan headers

Special Features

- M.2 Q-Latch, Q-Release, Q-Slide
- PCIe SafeSlot Q-Release
- Aura Sync RGB
- Extreme Engine Digi+, BIOS FlashBack™, Pre-mounted I/O shield, Clear CMOS button

Software

- Armoury Crate, Aura Sync, Fan Xpert 4, Dolby Atmos
- GameFirst, HWiNFO, AIDA64 (60 days), Norton 360 (60 days), Adobe Creative Cloud (trial), TurboV Core, USB Wattage Watcher

BIOS

256 Mb Flash ROM, UEFI AMI BIOS, features AI Overclocking, MyHotkey, CrashFree BIOS 3, EZ Flash 3

Accessories

SATA cables, thermal pad for M.2, Wi-Fi antenna, M.2 Q-Latch/Slides, ROG stickers, cable ties, quick start guide

Operating System

Windows® 11 64-bit

Form Factor

ATX (30.5 cm x 24.4 cm)
