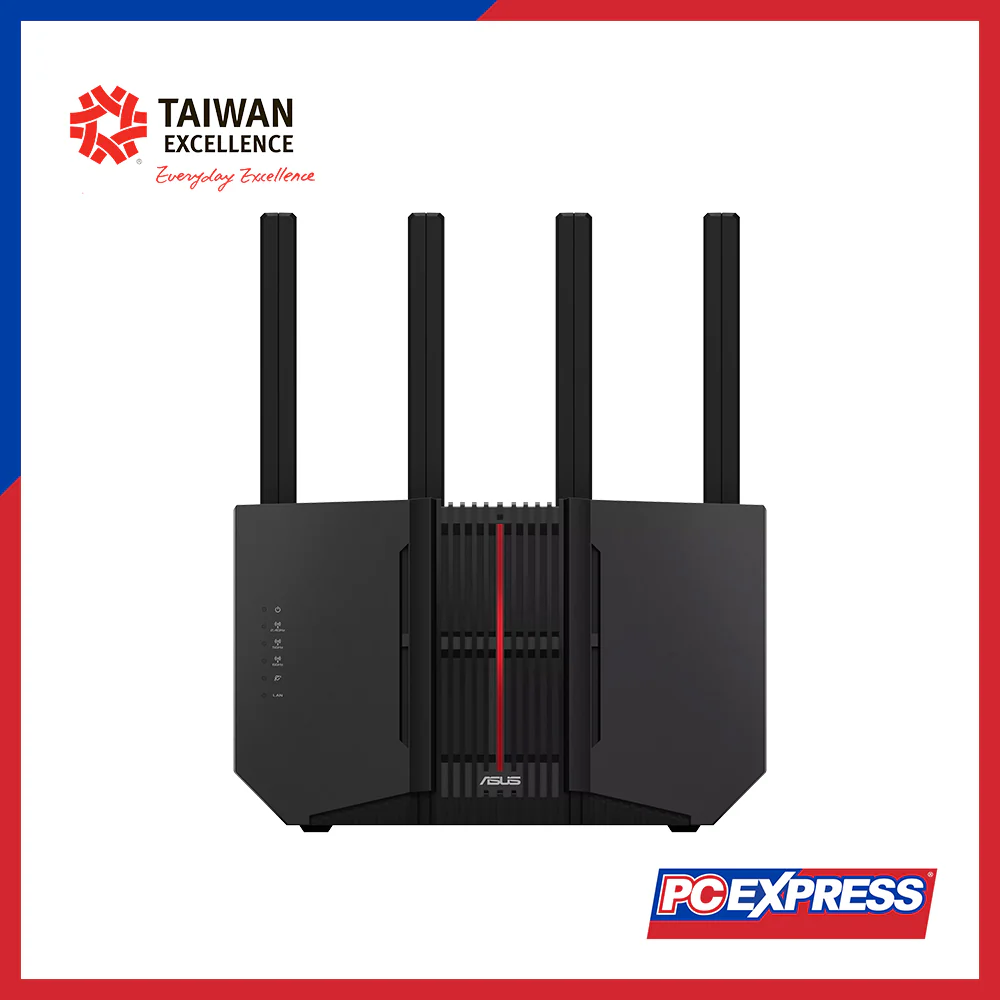

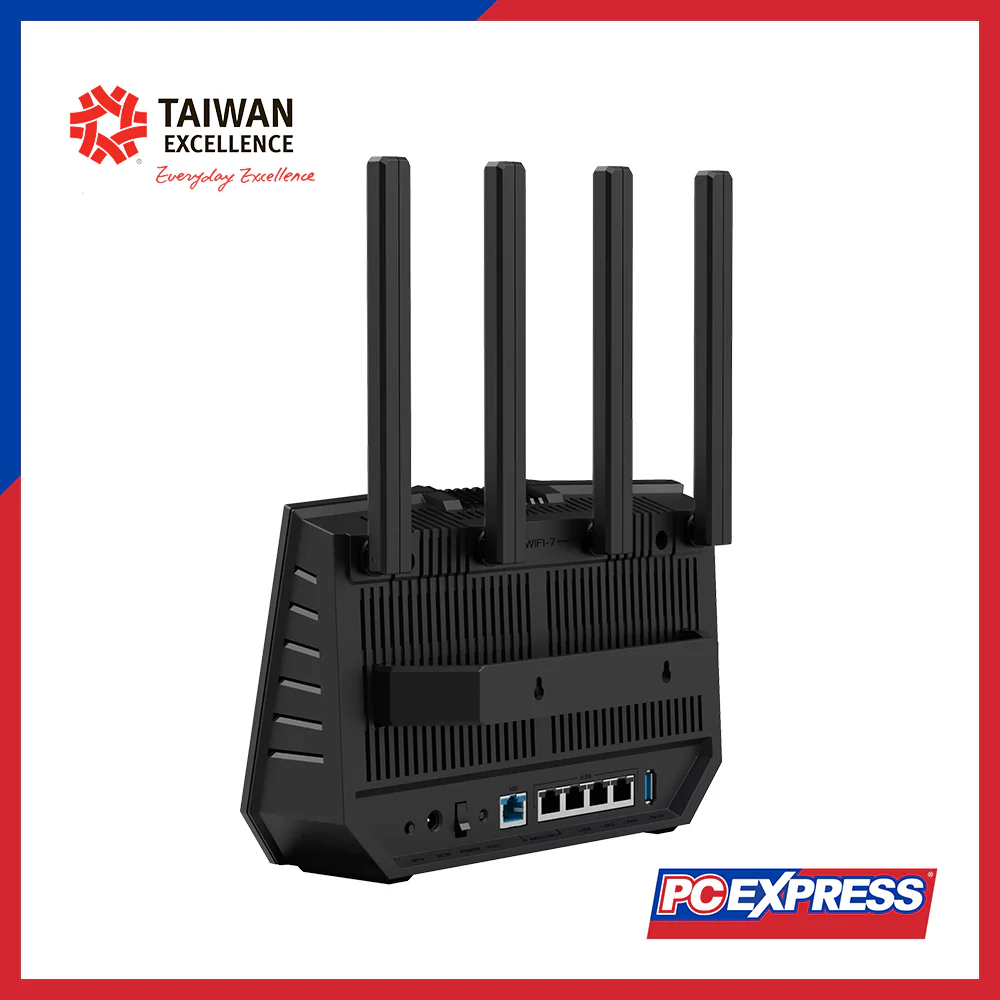

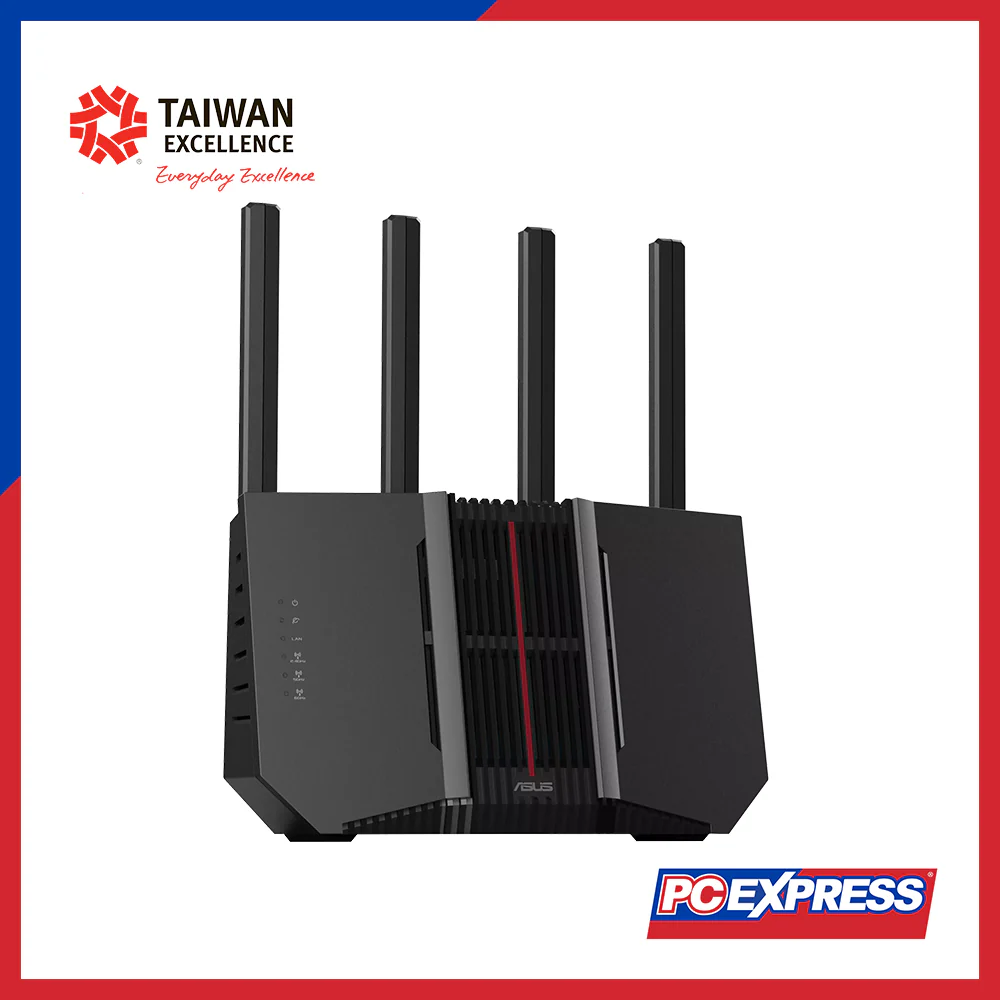

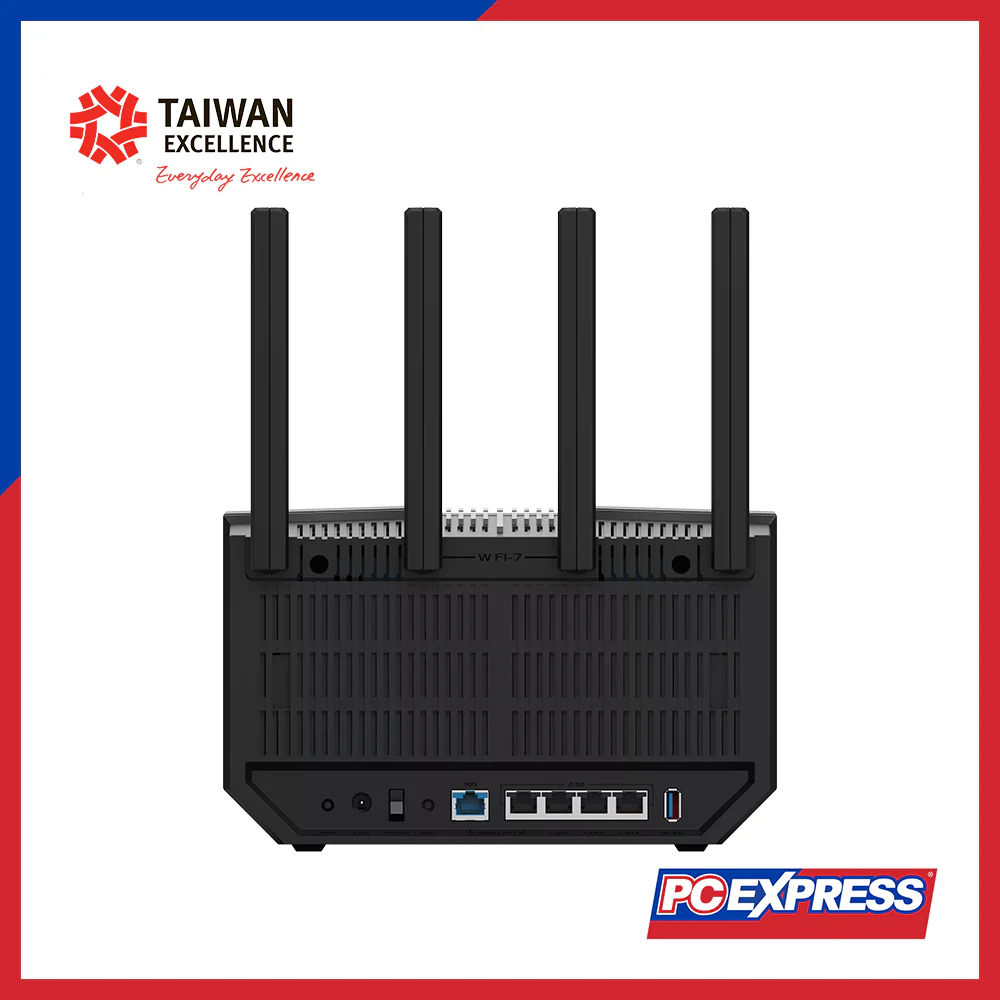

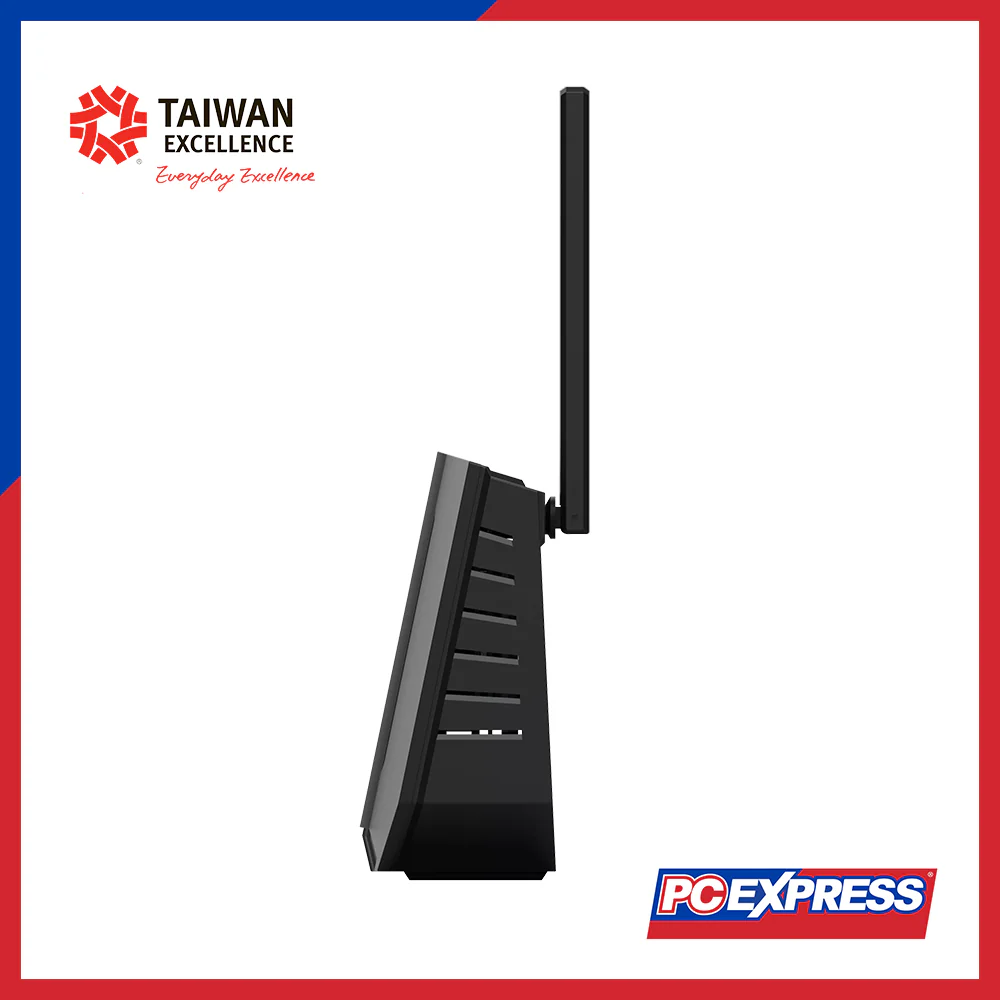

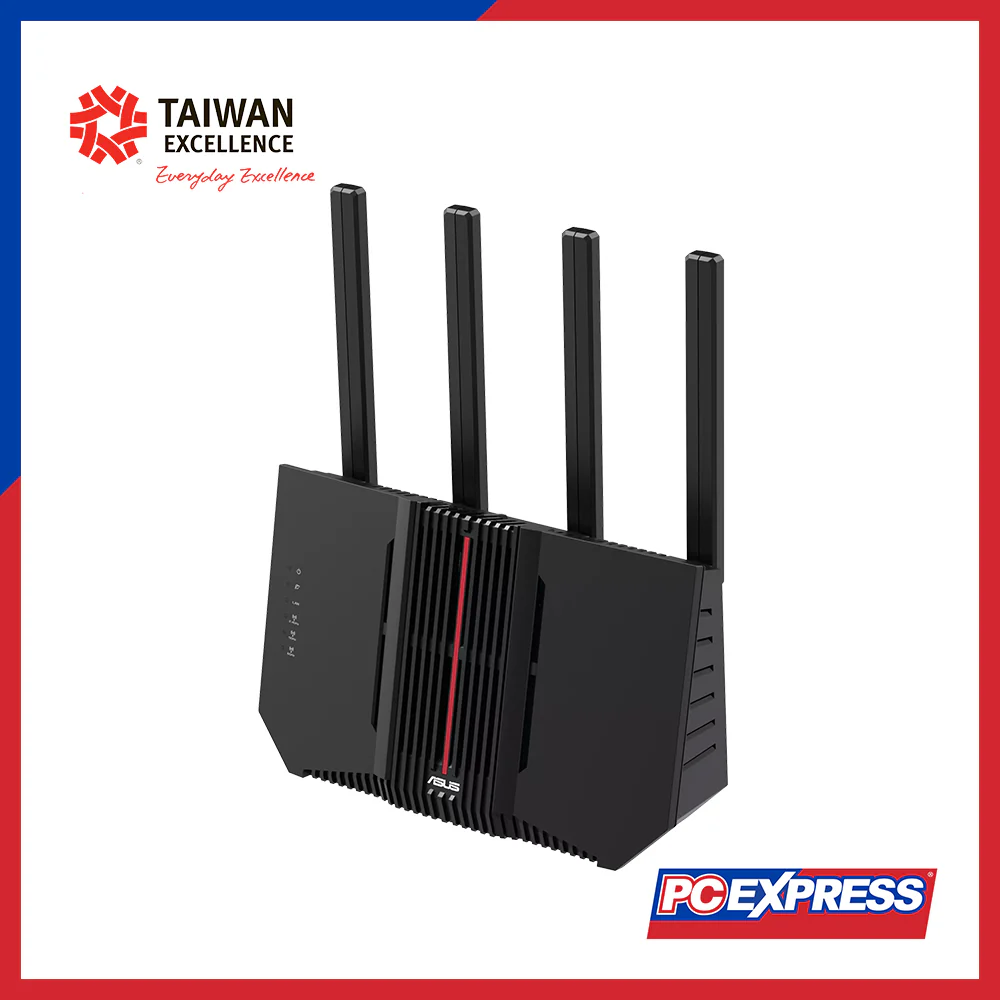

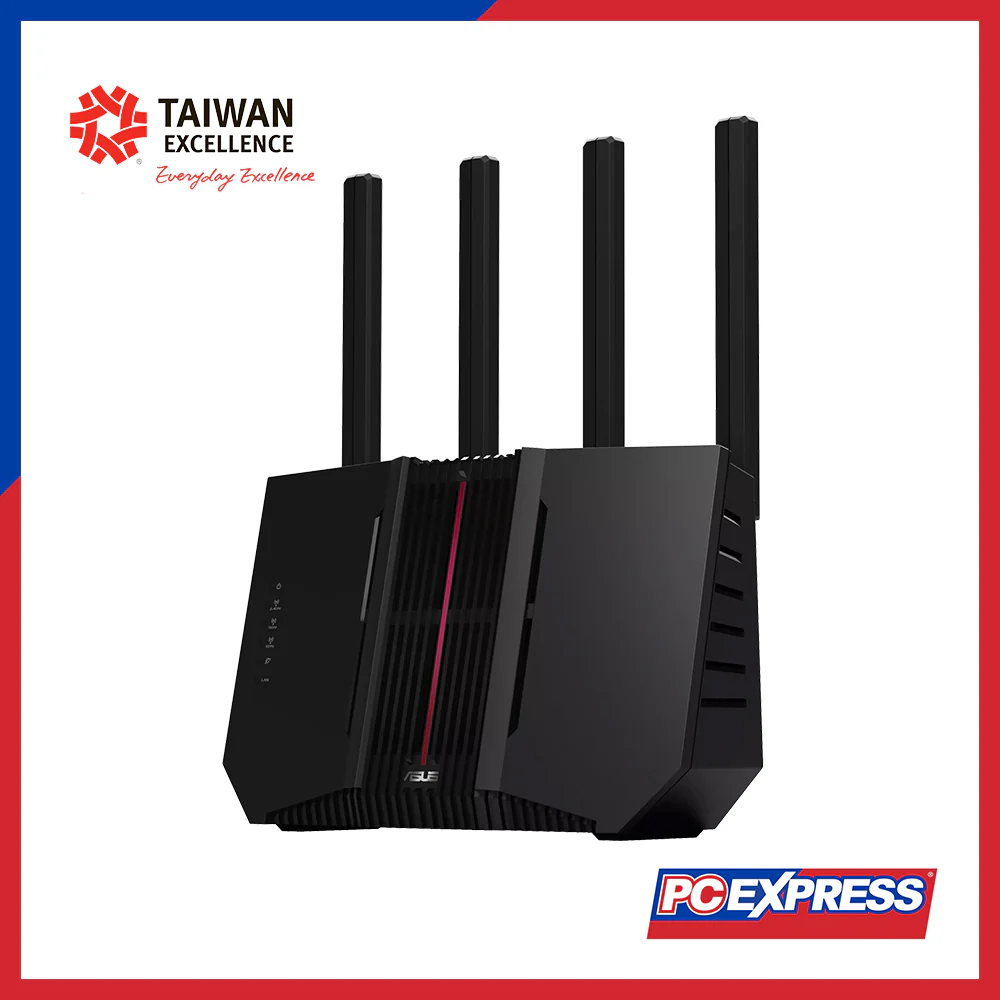

ASUS RT-BE92U Tri-Band WiFi 7 Extendable Router

Model

ASUS RT-BE92U

Network Standard

IEEE 802.11a/b/g; WiFi 4 (802.11n); WiFi 5 (802.11ac); WiFi 6 (802.11ax); WiFi 6E (802.11ax); WiFi 7 (802.11be); IPv4; IPv6

Product Segment

BE9700 ultimate BE performance: 1032 + 2882 + 5764 Mbps

WiFi Data Rate

WiFi 7 (2.4GHz): up to 1032 Mbps; WiFi 7 (5GHz): up to 2882 Mbps; WiFi 7 (6GHz): up to 5764 Mbps

Antenna

External antenna ×4

Transmit / Receive

2.4GHz 3x3; 5GHz 2x2; 6GHz 2x2

Processor

2.0GHz quad-core processor

Memory

256 MB Flash; 1 GB DDR4 RAM

Boosts Speed

OFDMA; Beamforming (standard-based & universal); 4096-QAM; 20/40/80/160/320 MHz bandwidth

Operating Frequency

2.4 GHz; 5 GHz; 6 GHz

Operating Mode

Wireless Router Mode; AiMesh Node Mode; Access Point Mode; Media Bridge Mode; Repeater Mode

I/O Ports

1 × 10Gbps WAN/LAN; 1 × 2.5Gbps WAN/LAN; 3 × 2.5Gbps LAN; USB 3.2 Gen1 ×1

Buttons

WPS Button; Reset Button; Power Switch

LED Indicator

Power ×1; WAN ×1; LAN ×1; 2.4GHz ×1; 5GHz ×1; 6GHz ×1

Power Supply

AC Input: 110V–240V (50–60Hz); DC Output: 12V max 3A

Package Content

RT-BE92U WiFi 7 Tri-band Router; Wall Mount Kit; RJ-45 cable; Power Adapter; Quick Start Guide; Warranty Card

Product Dimensions

247.18 × 101.59 × 287.47 mm (9.73 × 4.00 × 11.32 inch)

AiMesh

Primary AiMesh Router; AiMesh Node

Parental Control

Web & Apps Filters; Time Scheduling; Safe Browsing; Customized Internet Schedule; Max Profiles: 64

Guest Network

Supports Guest Network; Max Rules: 2.4GHz + 5GHz (3); Encryption: Open System, WPA/WPA2/WPA3-Personal

Security

AiProtection; VPN; WPA/WPA2/WPA3 Personal; WPA/WPA2/WPA3 Enterprise; Open System & OWE; WPS; Let's Encrypt; DNS-over-TLS; SSH; Security Scan; Firewall (Keyword: 64 / Network Service: 32 / URL: 64)

AiProtection

Router Security Assessment; Malicious Site Blocking; Two-Way IPS

VPN

Instant Guard; VPN Client (L2TP, OpenVPN, PPTP, WireGuard); VPN Server (IPSec, OpenVPN, PPTP, WireGuard); VPN Fusion; Support Surfshark

Traffic Control

Adaptive QoS (Bandwidth Monitor; Bandwidth Limiter max 32 rules); Traditional QoS; Traffic Monitor (Real-time/Wired/Wireless); Traffic Analyzer (Daily/Weekly/Monthly; Website History)

WAN

PPPoE; PPTP; L2TP; Automatic IP; Static IP; IPSec; Dual WAN; 3G/4G LTE Dongle; 4G/5G Mobile Tethering; Port Forwarding (64); Port Triggering (32); DMZ; DDNS; NAT Passthrough (PPTP/L2TP/IPSec/RTSP/H.323/SIP/PPPoE Relay)

LAN

DHCP Server; IGMP Snooping; IPTV; Manual IP Assignment (128 rules); Wake on LAN (WOL)

Wireless

MU-MIMO; UTF-8 SSID; MAC Filter (64); Wireless Scheduler; Airtime Fairness; RADIUS Client; Universal & Explicit Beamforming

USB Application

4G/5G Mobile Tethering; File System (HFS+, NTFS, vFAT, ext2/3/4); Safely Remove Disk; Download Master; Media Server; Time Machine; Samba Server; FTP Server; Shared Folder Privileges

User Interface

WEB: ASUSWRT; APP: ASUS Router APP

Administration

Configuration Backup & Restore; Diagnosis Tools; Feedback System; System Log; New Device Notification; Login Captcha; Connection Diagnosis; Auto Firmware Update
