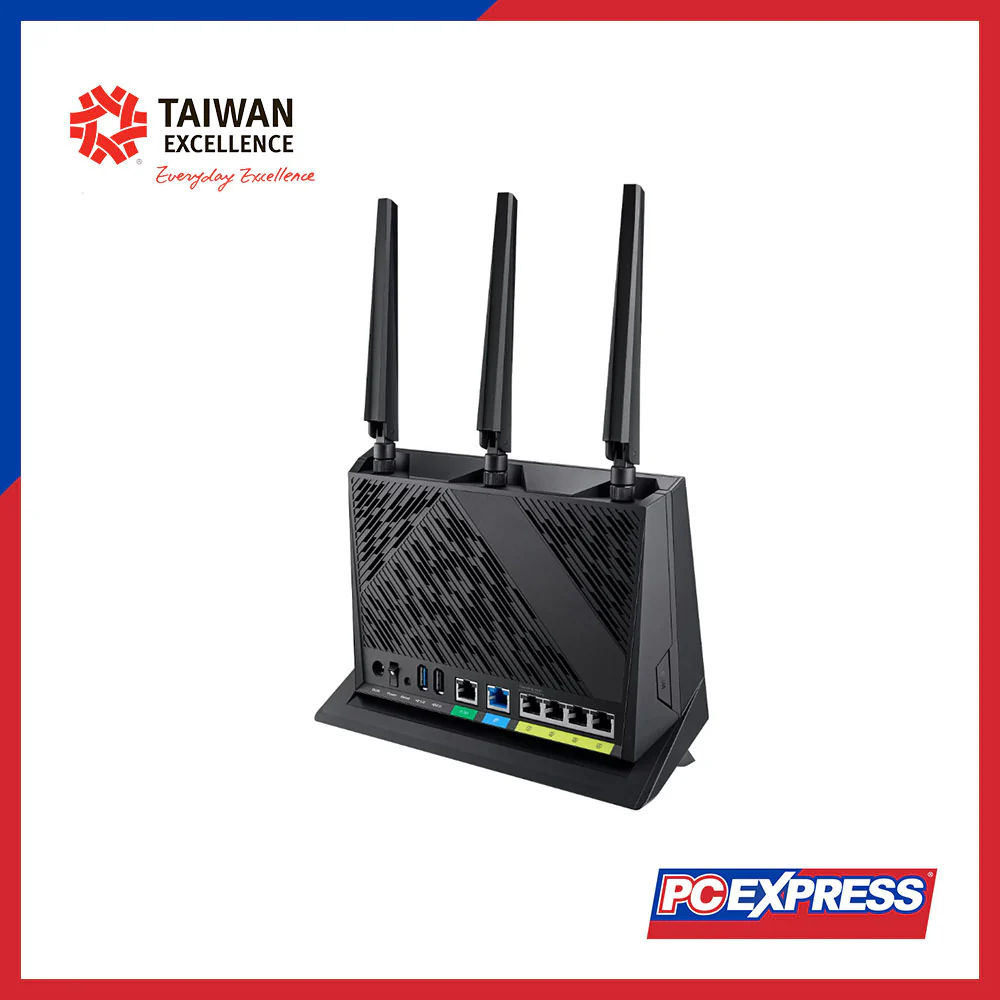

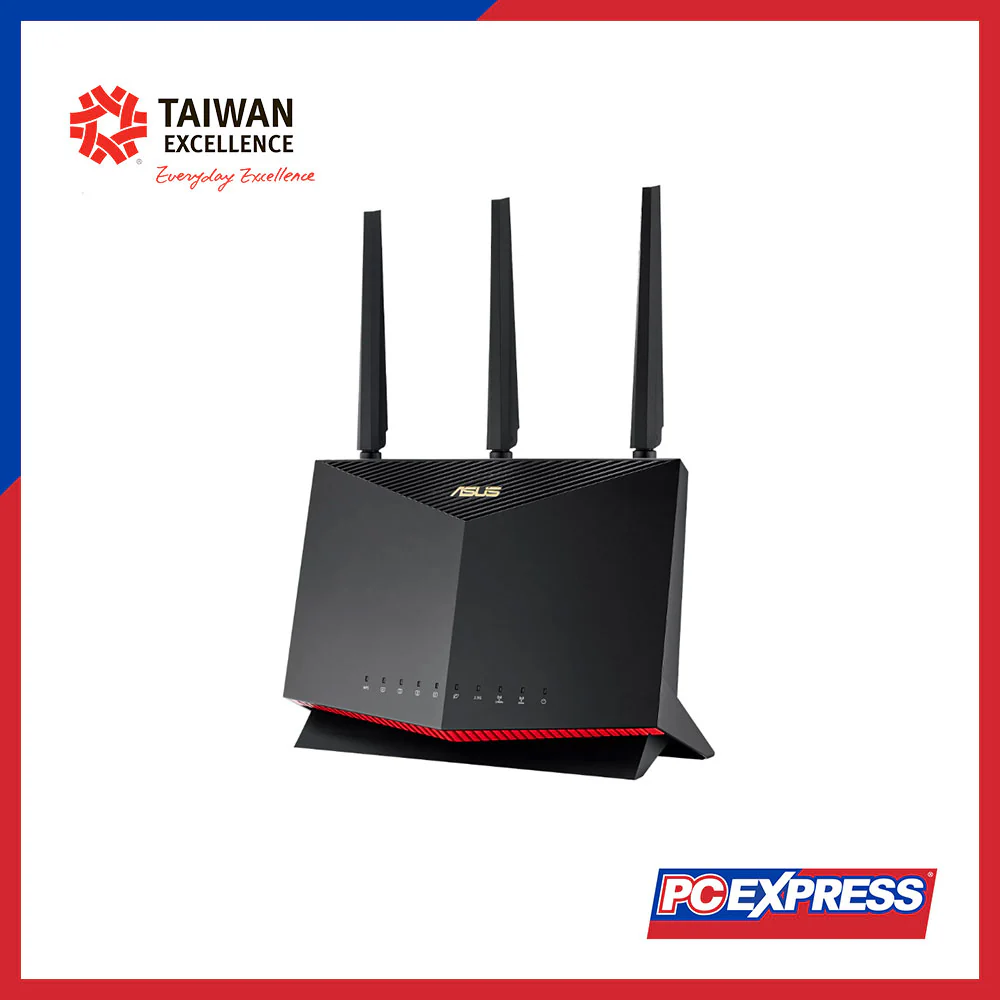

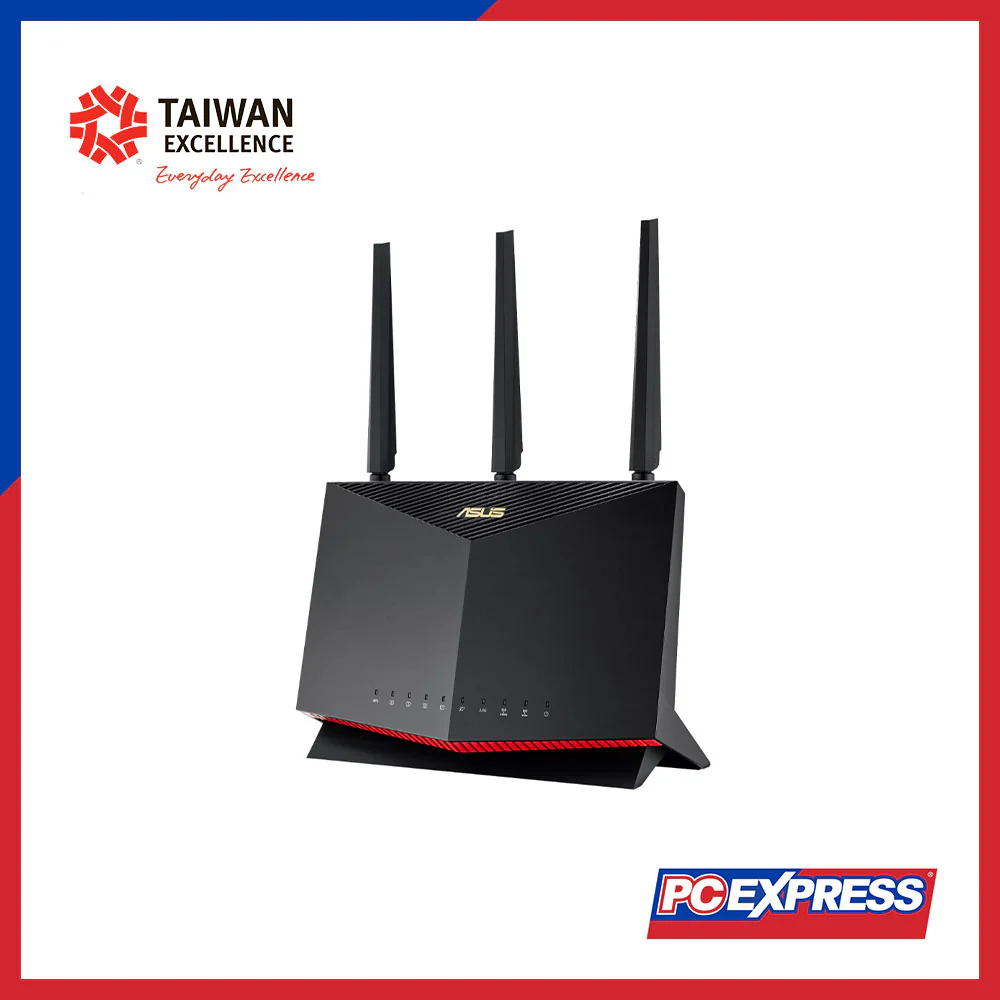

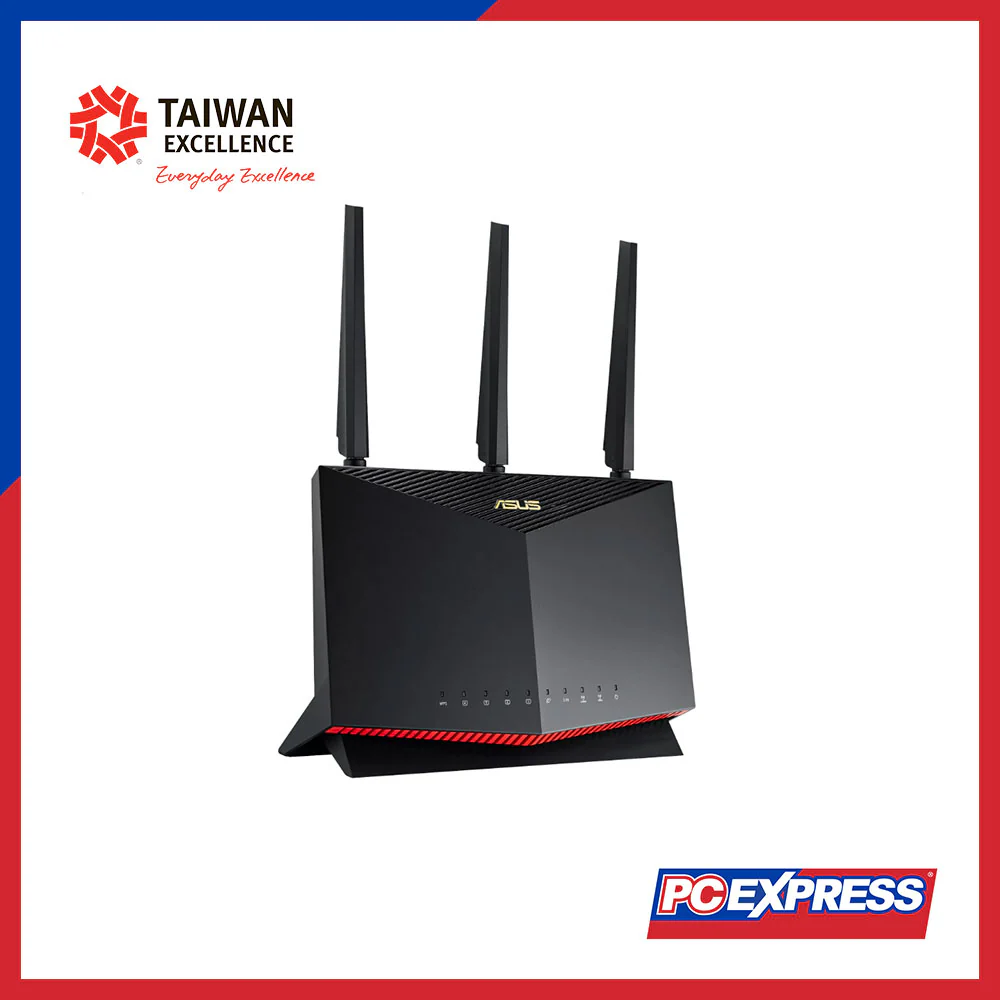

ASUS RT-AX86U PRO AX5700 Dual Band WiFi 6 Gaming Router

Model

RT-AX86U Pro

Network Standard

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), IPv4, IPv6

Product Segment

AX5700 ultimate AX performance: 861+4804 Mbps

WiFi Data Rate

802.11a: up to 54 Mbps
802.11b: up to 11 Mbps
802.11g: up to 54 Mbps
WiFi 4 (802.11n): up to 450 Mbps
WiFi 4 (802.11n) (1024QAM): up to 750 Mbps
WiFi 5 (802.11ac) (1024QAM): up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz): up to 861 Mbps
WiFi 6 (802.11ax) (5GHz): up to 4804 Mbps

Antenna

External x 3, Internal PCB x 1

Transmit / Receive

2.4GHz 3x3, 5GHz 4x4

Processor

2.0GHz quad-core

Memory

256 MB Flash, 1 GB RAM

Boosts Speed

OFDMA, Beamforming, 1024-QAM, 20/40/80/160 MHz bandwidth

Operating Frequency

2.4 GHz / 5 GHz

Operating Mode

Wireless router, Access point, Media bridge, Repeater, AiMesh node

I/O Ports

WAN x 1 (10/100/1000 BaseT), LAN x 4 (10/100/1000 BaseT), 2.5G/1Gbps multi-Gig port (configurable), USB 3.2 Gen1 x1, USB 2.0 x1

Buttons

WPS, Reset, Power, LED on/off

LED Indicator

Power x 1, 2.4GHz x 1, 5GHz x 1, 2.5G Port x 1, WAN x 1, LAN x 4, WPS x 1

Power Supply

19 V with max. 2.37 A or 12 V with max. 3 A

Package Content

Router, RJ-45 cable, Power adapter, Quick Start Guide, Warranty card

Product Weight

814.5 g

Product Dimensions

242 x 100 x 325 mm (with antenna), 242 x 100 x 164 mm (without antenna)

AiMesh

Primary AiMesh Router, AiMesh Node

Game Features

Game Boost, Mobile Game Mode, Gear Accelerator

Parental Control

Block websites/apps, Safe Browsing, Internet Schedule, Max Profiles: 64, Max Content Filter Rules: 64

Guest Network

Up to 3 networks each for 2.4GHz and 5GHz, Encryption: Open, WPA/WPA2/WPA3-Personal, WPS

Security

AiProtection, WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise, WPA2-Enterprise, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan

Firewall

Keyword Filter: 64, Network Service Filter: 32, URL Filter: 64

VPN

Instant Guard, VPN Client (L2TP, OpenVPN, PPTP, WireGuard), VPN Server (IPSec, OpenVPN, PPTP, WireGuard), VPN Fusion

Traffic Control

Adaptive QoS, Traditional QoS, Bandwidth Monitor/Limiter, Real-time Traffic Monitor, Traffic Analyzer

WAN

PPPoE, PPTP, L2TP, Automatic IP, Static IP, Dual WAN, WAN Aggregation, 3G/4G LTE dongle

LAN

DHCP Server, IGMP Snooping, IPTV, LAN Link Aggregation, Manual IP Assignment, Wake on LAN (WOL)

Wireless

MU-MIMO, UTF-8 SSID, MAC Address Filter (Max: 64), Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal and Explicit Beamforming

USB Application

File System: HFS+, NTFS, vFAT, ext2, ext3, ext4, Safely Remove Disk

AiCloud

Download Master, AiDisk, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Privileges

Administration

Configuration Backup/Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
