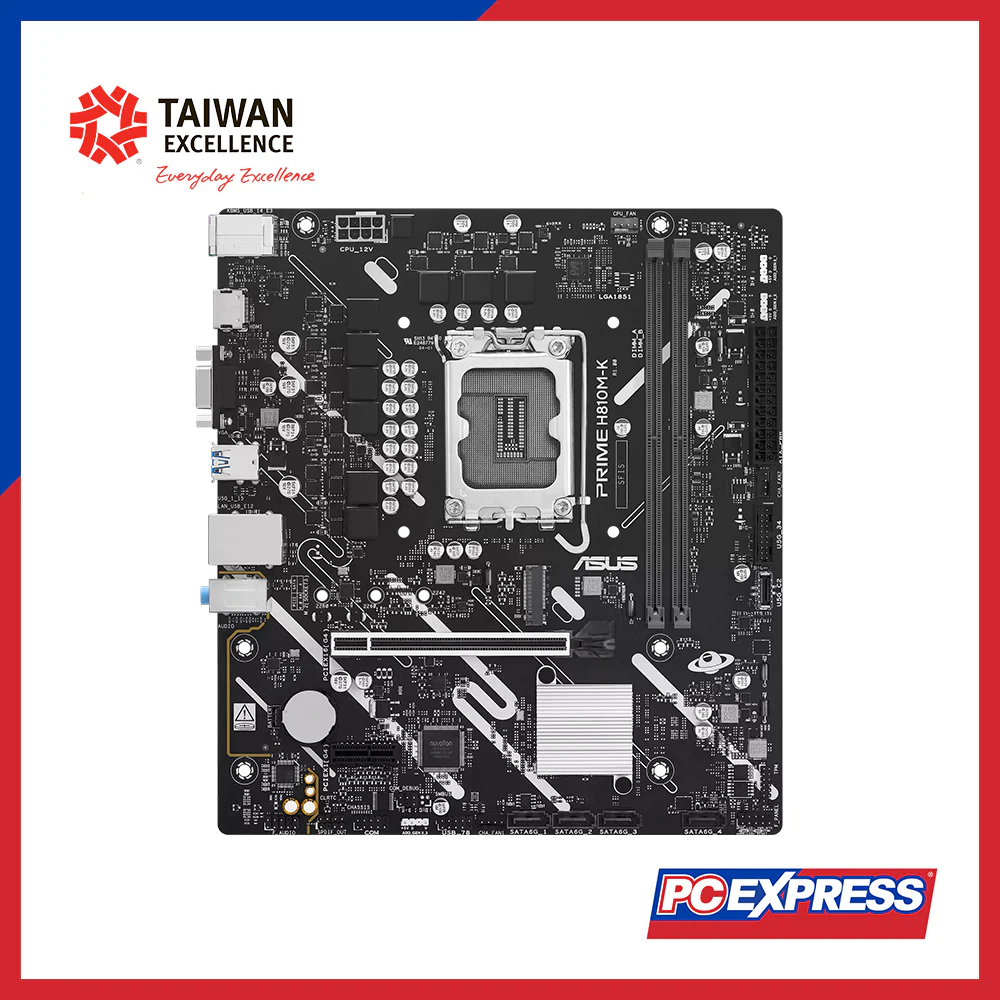

ASUS PRIME H810M-K micro-ATX Motherboard

Model

PRIME H810M-K

News & Updates

Visit ASUS global website to check and download the latest updates.

CPU

Supports Intel® Core™ Ultra Processors (Series 2), LGA1851. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 (CPU dependent).

Chipset

Intel® H810 Chipset

Memory

2 × DIMM slots, up to 128GB DDR5. Supports up to 6400MT/s, Non-ECC, Unbuffered, CUDIMM. Dual-channel architecture. Supports DIMM Fit, DIMM Fit Pro, Intel® XMP, ASUS AEMP II.

Graphics

1 × VGA port, 1 × HDMI™ port (supports up to 4K@60Hz via HDMI 2.1). Graphics capability depends on CPU.

Expansion Slots

1 × PCIe 4.0 x16 slot (CPU), 1 × PCIe 4.0 x1 slot (Chipset).

Storage

1 × M.2 slot (Key M, 2242/2260/2280, PCIe 4.0 x4), 4 × SATA 6Gb/s ports.

Ethernet

1 × Realtek 1Gb Ethernet with ASUS LANGuard.

USB (Rear)

Total 6 ports: 2 × USB 5Gbps Type-A, 4 × USB 2.0 Type-A.

USB (Front)

Total 5 ports: 1 × USB 5Gbps Type-C connector (5V/3A max), 1 × USB 5Gbps header (supports 2 ports), 1 × USB 2.0 header (supports 2 ports).

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC with jack detection, multi-streaming, and front panel jack retasking. Supports up to 24-bit/192 kHz playback.

Audio Features

Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers.

Back Panel I/O Ports

2 × USB 5Gbps Type-A, 4 × USB 2.0 Type-A, 1 × VGA, 1 × HDMI™, 1 × Realtek 1Gb Ethernet, 3 × audio jacks, 1 × PS/2 combo keyboard/mouse port.

Internal Fan Headers

1 × 4-pin CPU fan header, 2 × 4-pin chassis fan headers.

Power Connectors

1 × 24-pin main power connector, 1 × 8-pin +12V CPU power connector.

Internal Storage Connectors

1 × M.2 slot (Key M), 4 × SATA 6Gb/s ports.

Internal USB Connectors

1 × USB 5Gbps Type-C connector, 1 × USB 5Gbps header (2 ports), 1 × USB 2.0 header (2 ports).

Other Internal Connectors

3 × Addressable RGB Gen2 headers, 1 × Clear CMOS header, 1 × Chassis Intrusion header, 1 × COM port header, 1 × Front panel audio header, 1 × S/PDIF out header, 1 × SPI TPM header (14-1 pin), 1 × 10-1 front panel system header.

Special Features

ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot Core+, Stainless-steel back I/O). ASUS Q-Design (Q-Dashboard, Q-LED Core, Q-Slot). ASUS Thermal Solution aluminum heatsink. Aura Sync RGB Gen2 support.

Software Features

Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+), ASUS DriverHub, ASUS CPU-Z, Adobe Creative Cloud Trial, Norton 360 Deluxe Trial, WinRAR Trial.

UEFI BIOS Features

ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey.

BIOS

2 × 16MB Flash ROM, UEFI AMI BIOS.

Manageability

Wake-on-LAN (WOL) by PME, PXE support.

Accessories

2 × SATA 6Gb/s cables, 1 × I/O shield, 1 × M.2 anchor package, 1 × Quick start guide.

Operating System Support

Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later).

Form Factor

micro-ATX, 9.2 in × 8.3 in (23.4 cm × 21.1 cm).
