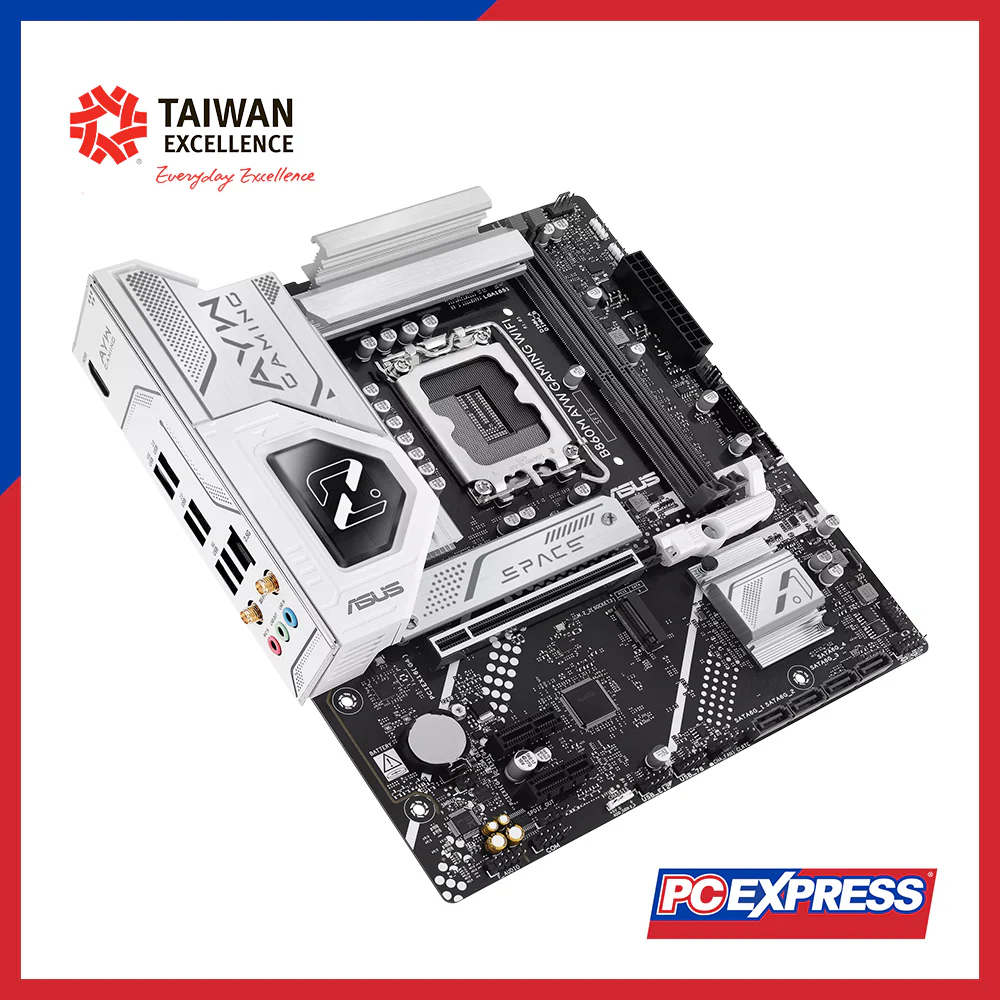

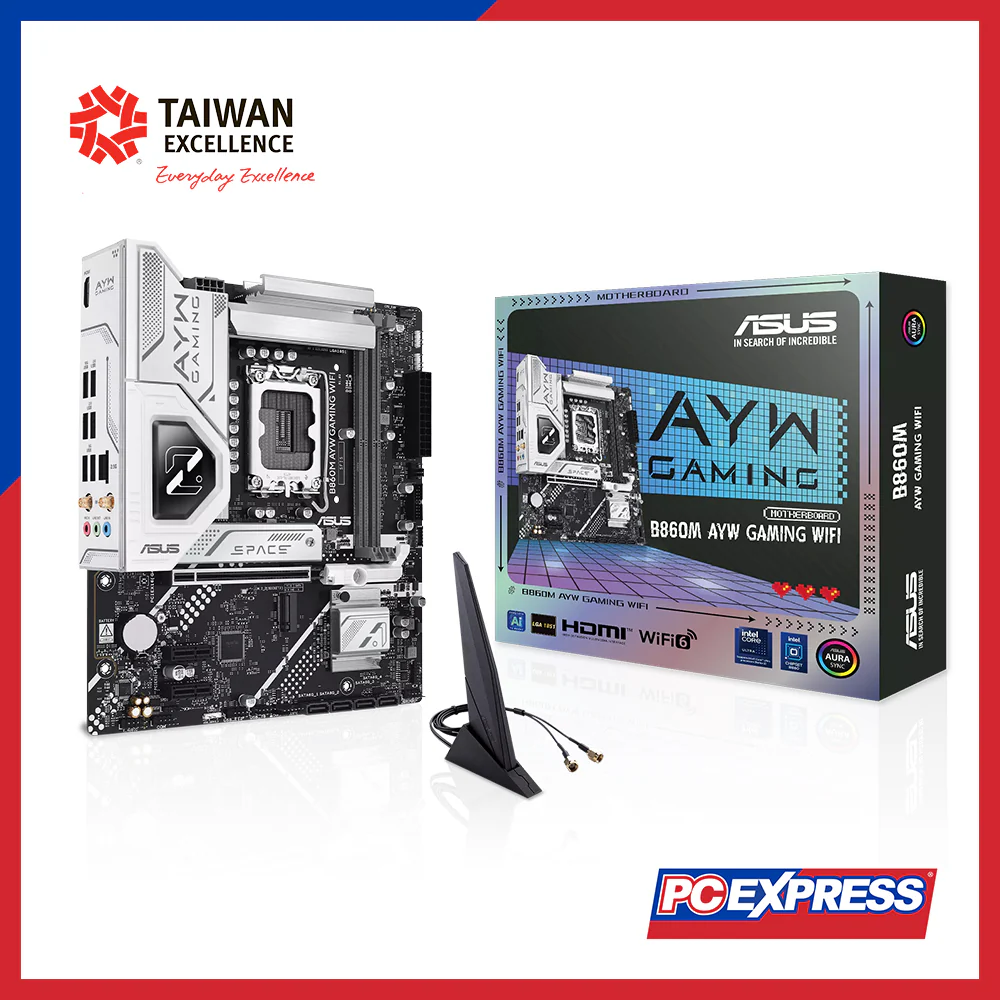

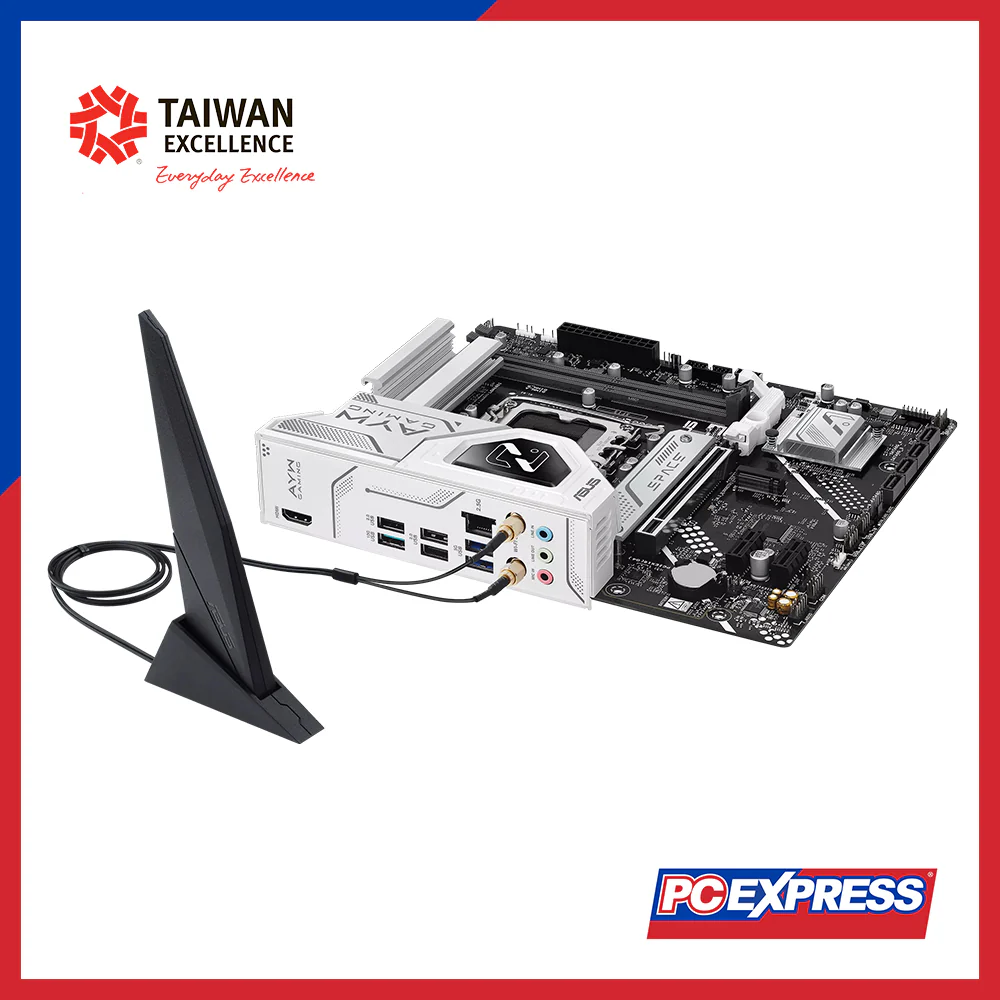

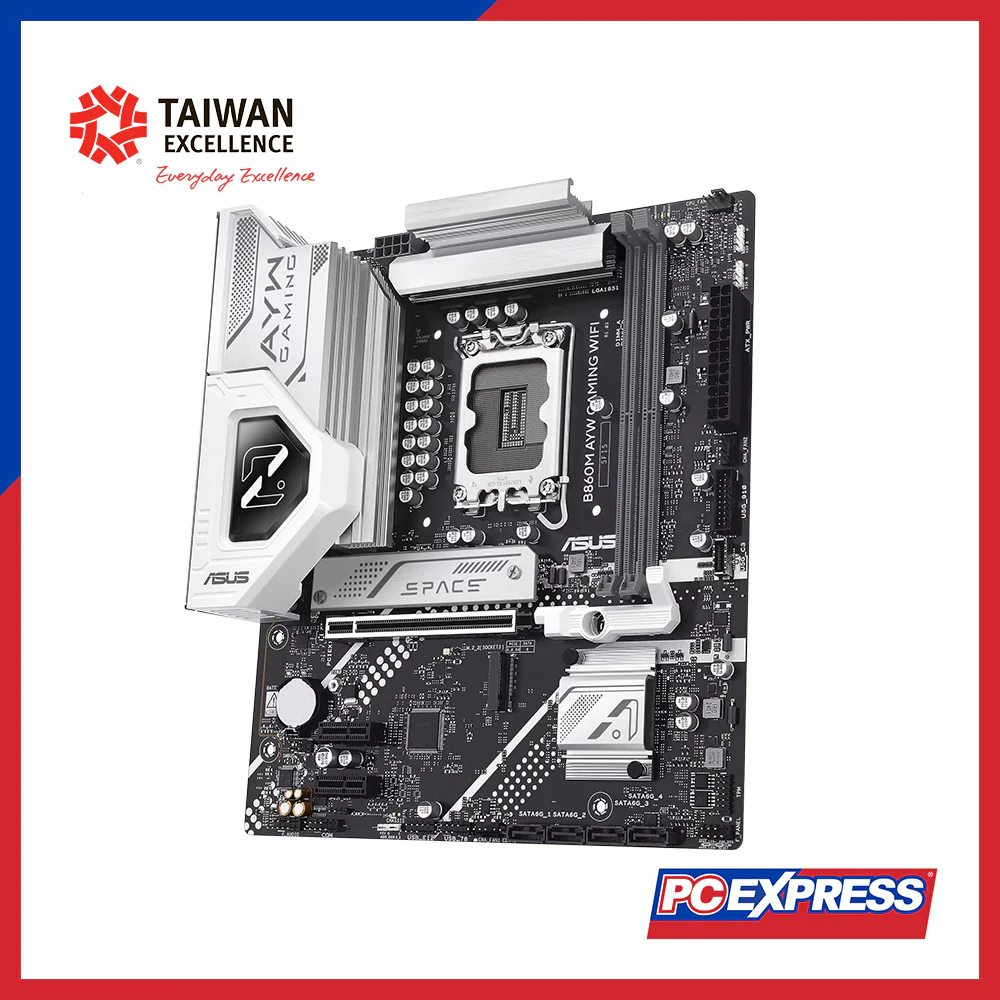

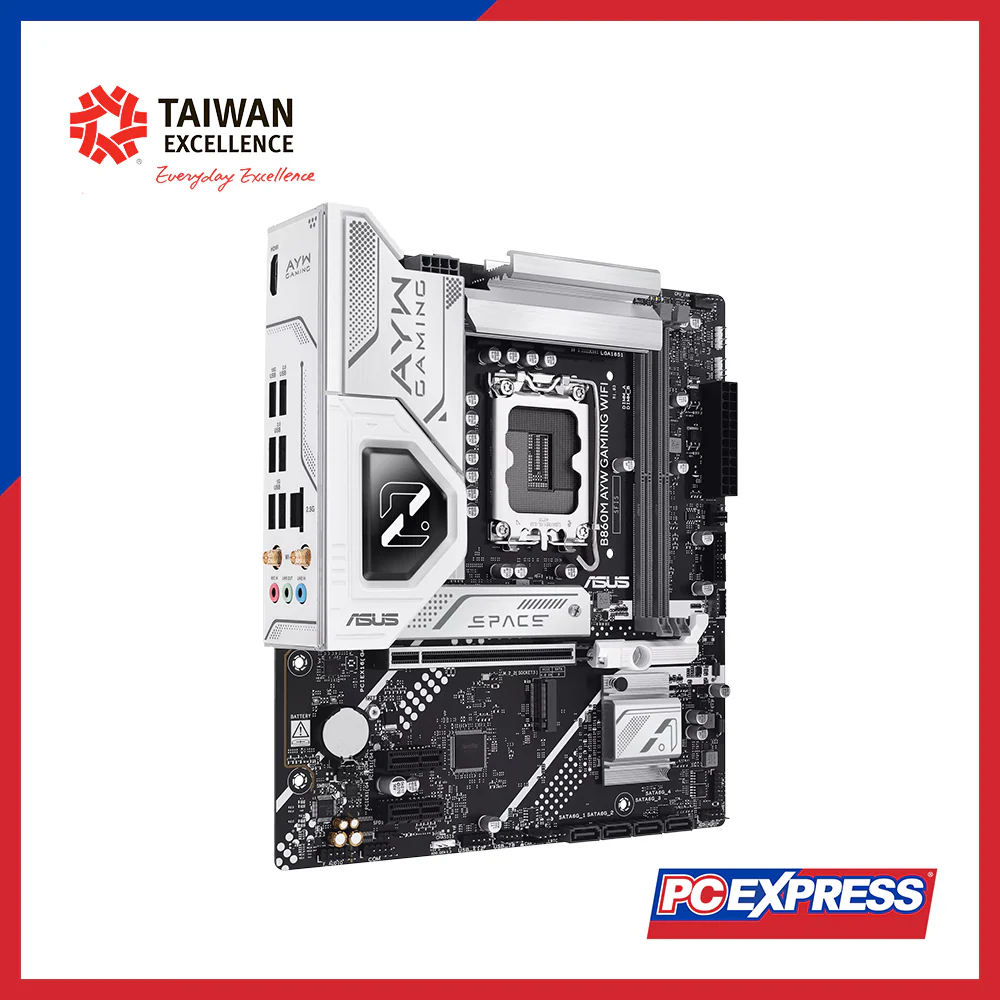

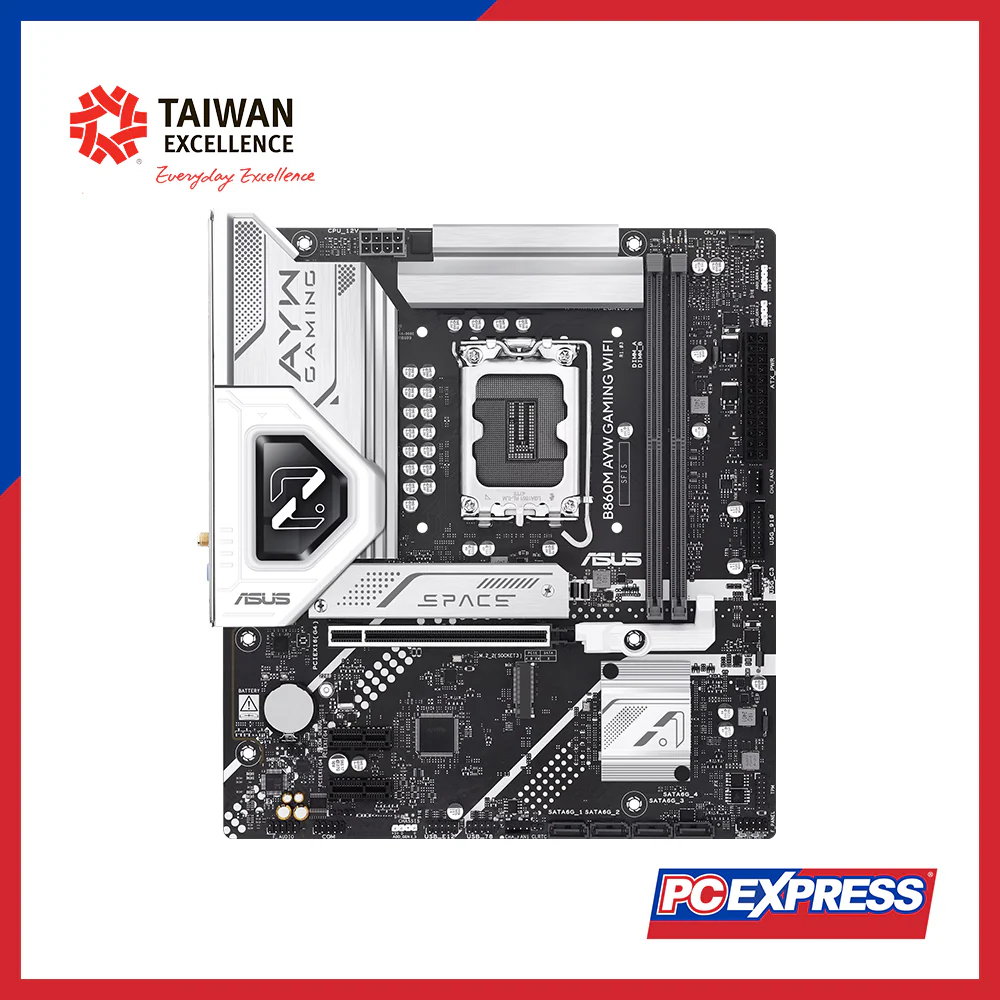

ASUS B860M AYW Gaming WiFi micro-ATX Motherboard
SPECIFICATION
|
Model |
B860M AYW GAMING WIFI |
|
News & Updates |
Intel® Core Ultra 200S: Supports Windows 10 (21H2+) & Windows 11 (22H2+) |
|
Intel® Core Ultra 200S Plus: Windows 11 (25H2+) required |
|
|
Visit ASUS global website for latest updates |
|
|
CPU |
Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 |
|
Supports Intel® Turbo Boost 2.0 & Turbo Boost Max 3.0 |
|
|
Chipset |
Intel® B860 Chipset |
|
Memory |
2 x DIMM slots, up to 128GB DDR5 |
|
Supports up to 8800+ MT/s (OC) |
|
|
Non-ECC, Un-buffered, CUDIMM support |
|
|
Dual-channel memory |
|
|
Supports XMP & ASUS AEMP III |
|
|
Graphics |
1 x HDMI port |
|
Supports 4K@60Hz (HDMI 2.1) |
|
|
Expansion Slots |
1 x PCIe 4.0 x16 slot (CPU) |
|
2 x PCIe 4.0 x1 slots (Chipset) |
|
|
Storage |
2 x M.2 slots (PCIe 5.0 + PCIe 4.0) |
|
4 x SATA 6Gb/s ports |
|
|
RAID 0/1/5/10 support |
|
|
Ethernet |
Realtek 2.5Gb Ethernet |
|
ASUS LANGuard |
|
|
Wireless & Bluetooth |
Wi-Fi 6 (802.11ax, 2.4/5GHz) |
|
Bluetooth 5.3 |
|
|
USB (Rear) |
1 x USB 10Gbps (Type-A) |
|
2 x USB 5Gbps (Type-A) |
|
|
3 x USB 2.0 |
|
|
USB (Front) |
1 x USB Type-C (5Gbps) |
|
1 x USB 5Gbps header (2 ports) |
|
|
2 x USB 2.0 headers (4 ports) |
|
|
Audio |
Realtek 7.1 HD Audio CODEC |
|
Supports 24-bit/192kHz playback |
|
|
Audio shielding & premium capacitors |
|
|

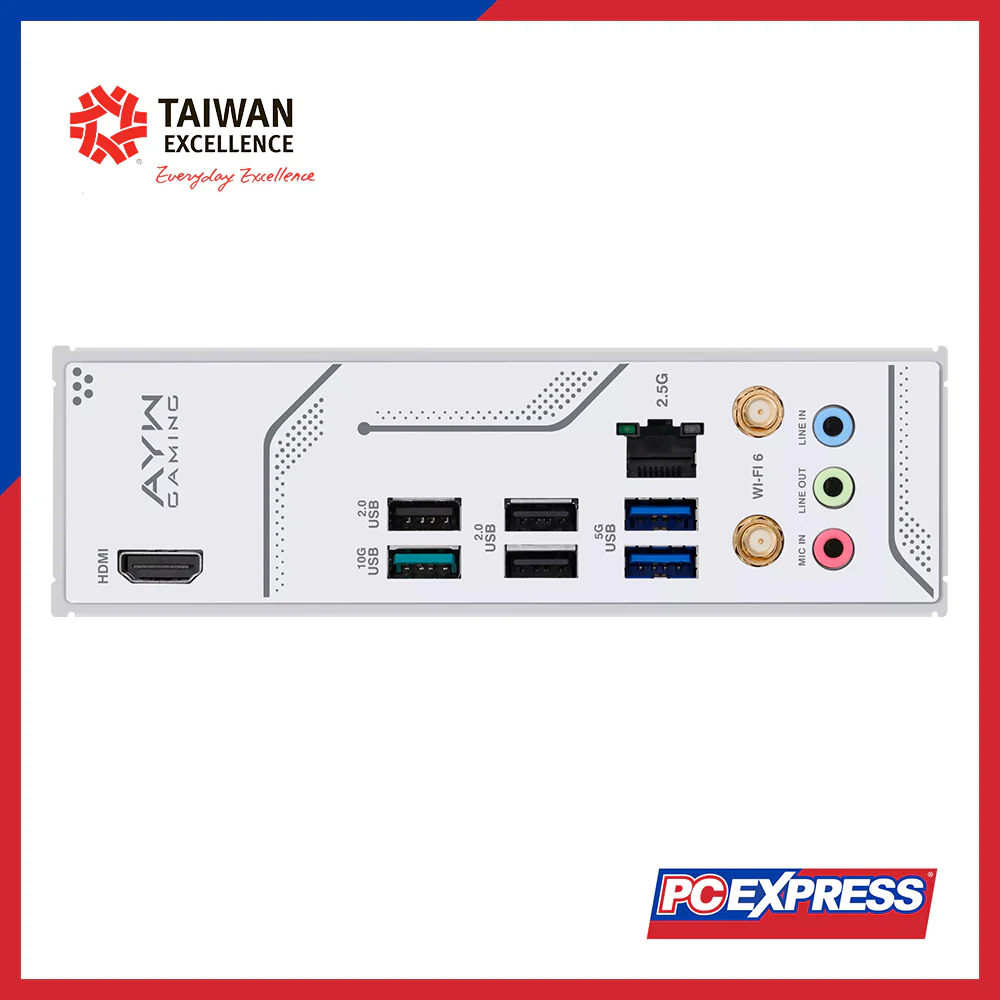

Back Panel I/O |
USB 10Gbps, USB 5Gbps, USB 2.0 ports |
|
HDMI port |
|
|
Wi-Fi module |
|
|
RJ-45 LAN |
|
|
3 x audio jacks |
|
|
Internal I/O Connectors |
CPU & chassis fan headers |
|
24-pin ATX + 8-pin CPU power |
|
|
2 x M.2 slots, 4 x SATA |
|
|
USB headers (Type-C, Gen1, USB 2.0) |
|
|
RGB Gen2 headers |
|
|
TPM, COM port, S/PDIF, front panel headers |
|
|
Special Features |
ASUS 5X Protection III |
|
Q-Design (Q-Latch, Q-DIMM, Q-LED, etc.) |
|
|
Thermal solution (VRM & M.2 heatsinks) |
|
|
Aura Sync RGB |
|
|
Software Features |
Armoury Crate, Aura Sync, Fan Xpert 2+ |
|
ASUS AI Advisor, DriverHub, GlideX |
|
|
CPU-Z |
|
|
Norton 360 (trial), WinRAR (trial) |
|
|
BIOS Features |
UEFI AMI BIOS (256Mb Flash ROM) |
|
ASUS EZ Flash, CrashFree BIOS 3 |
|
|
Manageability |
WOL by PME, PXE |
|

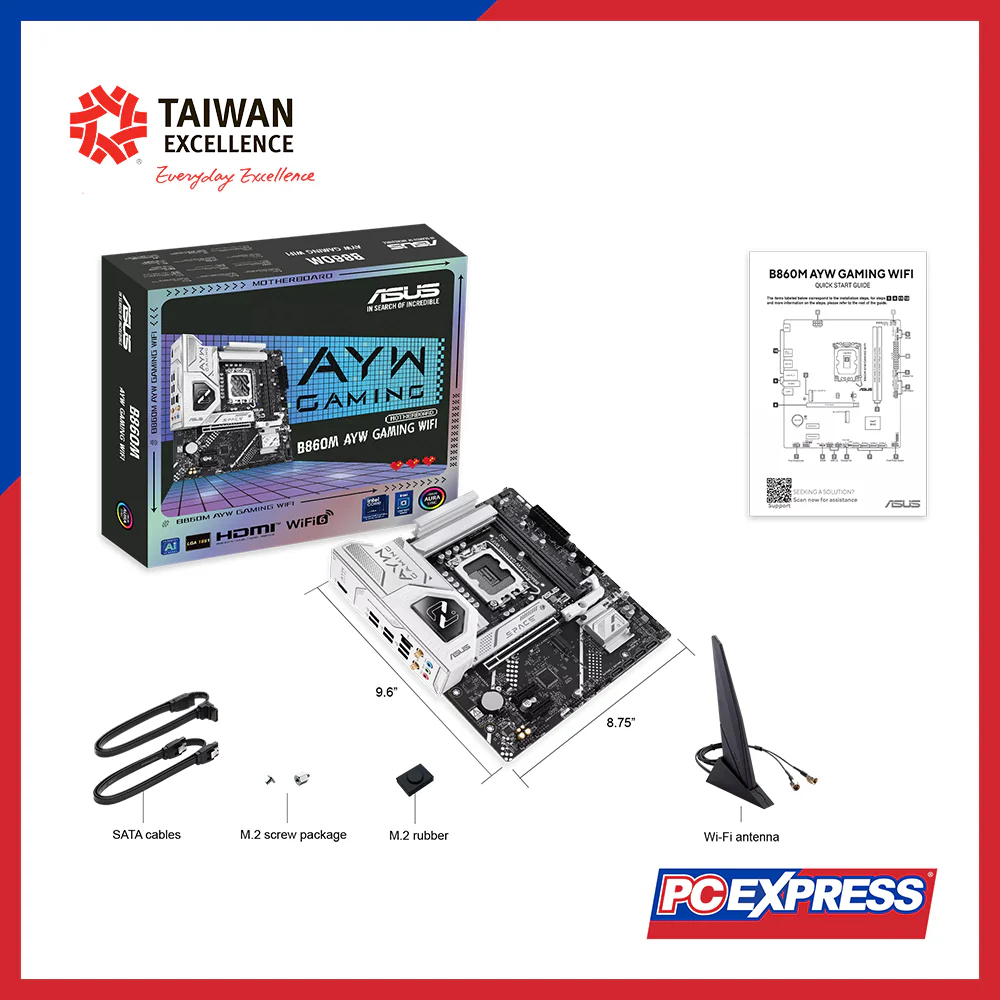

Accessories |
2 x SATA cables |
|
Wi-Fi antenna |
|
|
M.2 rubber & screw package |
|
|
Quick start guide |
|
|
Operating System |
Windows 11 (22H2+) |
|
Windows 10 64-bit (21H2+) |
|
|
Form Factor |
Micro-ATX |
|
24.4 cm x 22.2 cm |
Original: $168.68
-70%$168.68
$50.60More Images
