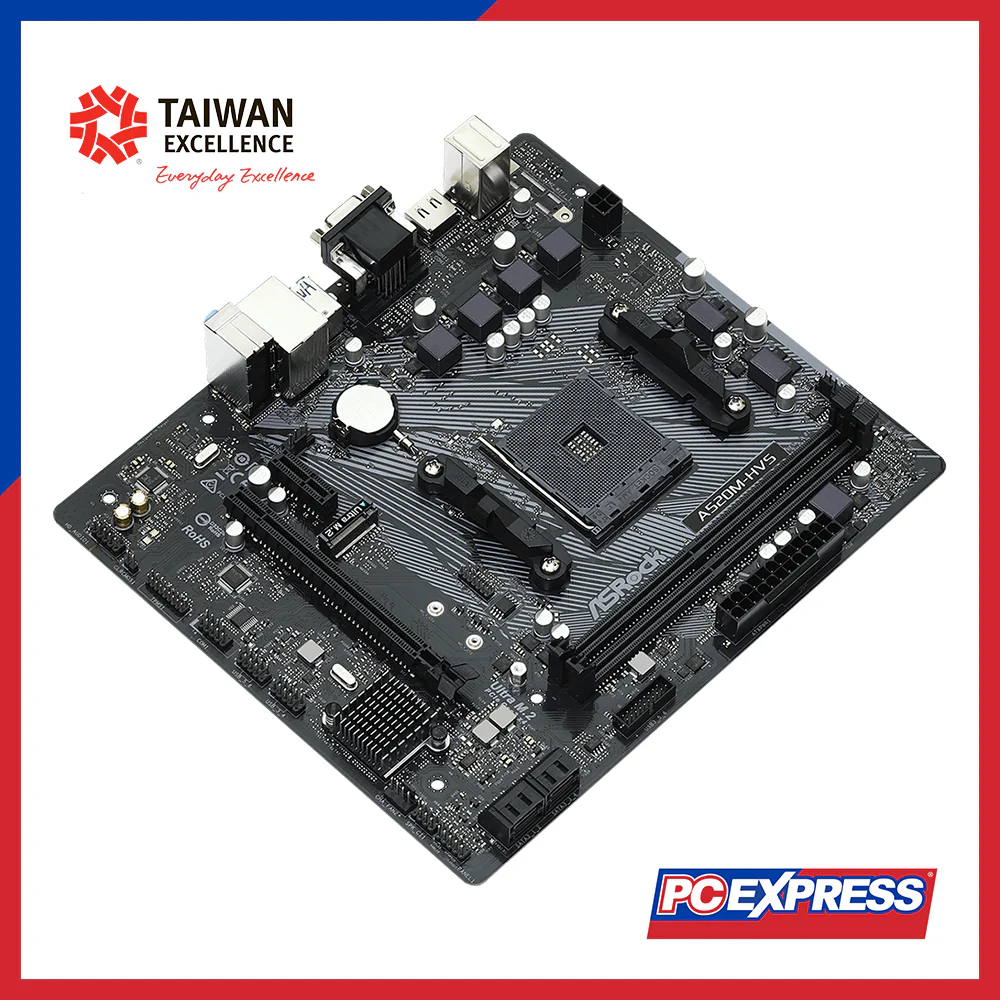

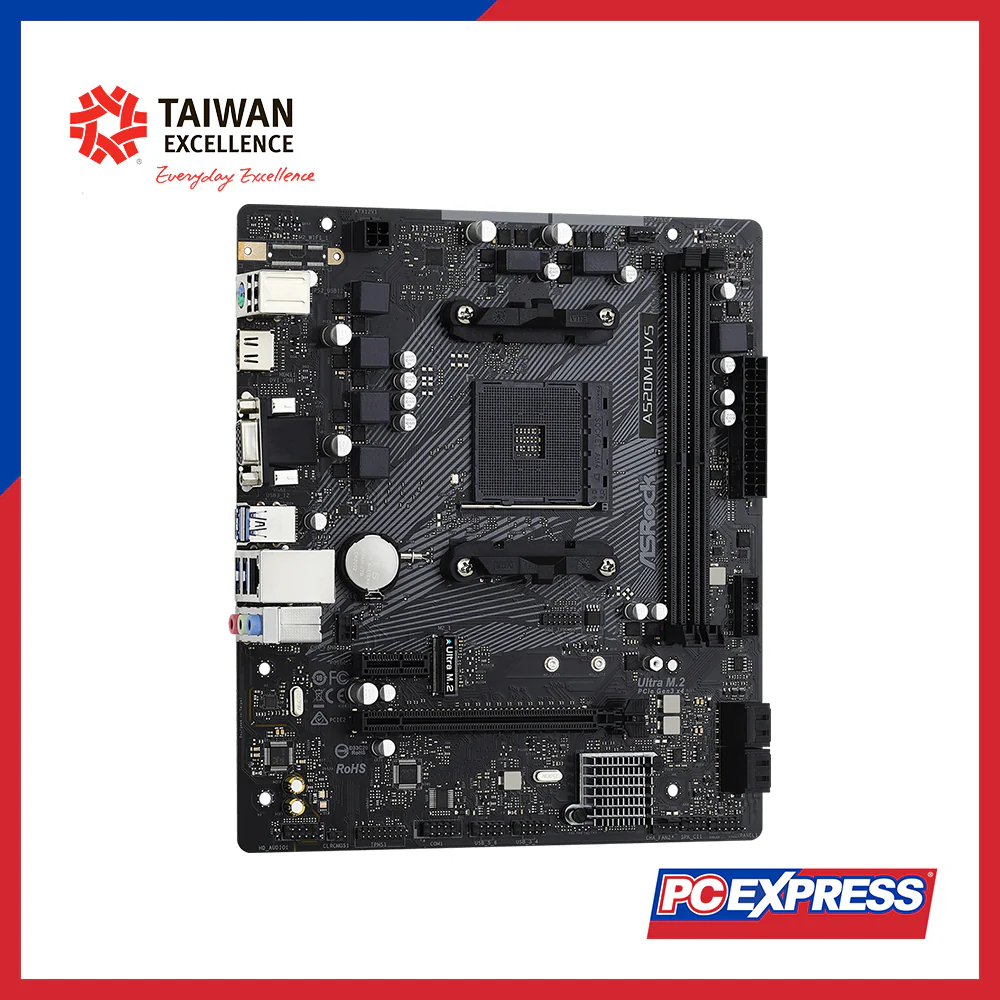

ASROCK A520M HVS M.2 PCIe 3.0 1 X Ultra micro ATX Motherboard

Unique Feature

ASRock Super Alloy: Premium 50A Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB

ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)

ASRock Full Spike Protection (USB, Audio, LAN Ports)

ASRock Live Update & APP Shop

CPU

Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000, 5000 G-Series

6 Power Phase design

Chipset

AMD A520

Memory

Dual Channel DDR4 Memory Technology

2 × DDR4 DIMM Slots

Supports DDR4 up to 4733+ (OC) depending on CPU (Vermeer, Matisse, Cezanne, Renoir)

Supports ECC & non-ECC, unbuffered memory

Max capacity: 64GB

Supports XMP memory modules

15μ Gold Contact in DIMM Slots

BIOS

128Mb AMI UEFI BIOS with GUI

Plug and Play, ACPI 5.1

Voltage adjustment (CPU, DRAM, etc.)

Graphics

Integrated AMD Radeon Vega (APU only)

DirectX 12, Pixel Shader 5.0

HDMI 2.1 (4K@60Hz), D-Sub support

HDR, HDCP 2.3, 4K UHD playback

Shared memory up to 16GB

Audio

7.1 Channel HD Audio (Realtek ALC887/897)

Surge Protection

LAN

Gigabit LAN (Realtek RTL8111H)

Wake-On-LAN, ESD Protection, PXE

Slots

1 × PCIe 3.0 x16

1 × PCIe 3.0 x1

Storage

1 × Ultra M.2 (PCIe Gen3 x4 & SATA3)

4 × SATA3 ports

Supports NVMe SSD boot

RAID 0, 1, 10

Connectors

TPM, COM, Chassis Intrusion headers

CPU fan + 2 chassis fan headers

24-pin ATX + 4-pin CPU power

USB 2.0 & USB 3.2 Gen1 headers

Front panel audio connector

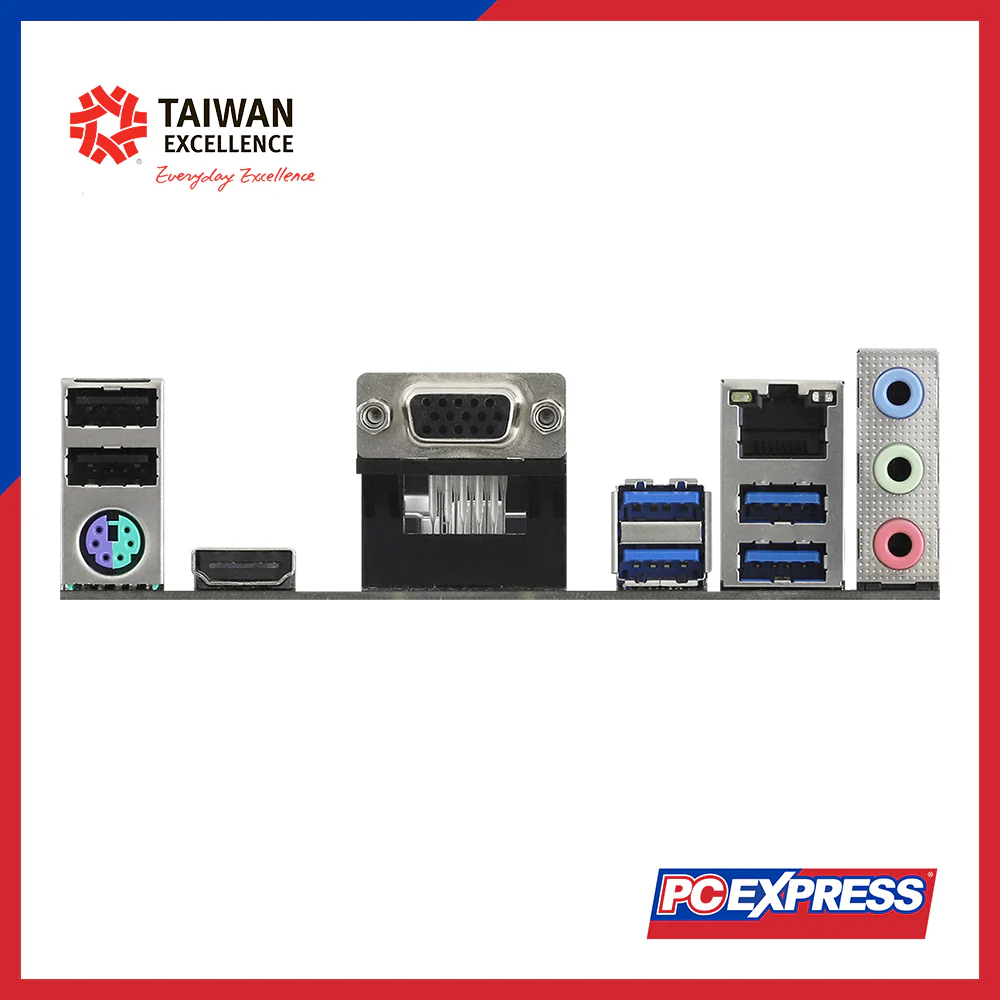

Rear Panel I/O

PS/2 port

D-Sub, HDMI

2 × USB 2.0, 4 × USB 3.2 Gen1

RJ-45 LAN port

Audio jacks

Software & UEFI

ASRock A-Tuning

ASRock Full HD UEFI, Instant Flash

Accessories

I/O Shield

2 × SATA cables

1 × M.2 screw

Hardware Monitor

Temperature sensing (CPU, chassis)

Fan monitoring & control

Voltage monitoring

Case open detection

Form Factor

Micro ATX (23.0 cm × 20.1 cm)

Solid capacitor design

OS Support

Windows 10 64-bit / Windows 11 64-bit

Certifications

FCC, CE

ErP/EuP Ready
