AOC 23.8" 24G11E 180Hz IPS Gaming Monitor
SPECIFICATION
|
Model Name |
24G11E |
|
Panel |
23.8" (IPS) |
|
Pixel Pitch (mm) |
0.2745 (H) × 0.2745 (V) |
|
Effective Viewing Area (mm) |
527.04 (H) × 296.46 (V) |
|
Brightness (Typical) |
300 cd/m² |
|
Contrast Ratio |
1000:1 (Typical), 80 Million:1 (DCR) |
|
Response Time |
1ms (MPRT) / 1ms (GtG) |
|
Viewing Angle |
178° (H) / 178° (V) (CR > 10) |
|
Color Gamut |
NTSC 112% (CIE1976), sRGB 133% (CIE1931), DCI-P3 102% (CIE1976) |
|
Color Accuracy |
Delta E < 2 |
|
Optimum Resolution |
1920 × 1080 @ 180Hz – DisplayPort, HDMI |
|
Display Colors |
16.7 Million |
|
Signal Input |
HDMI 2.0 x 1, DisplayPort 1.4 x 1 |
|
HDCP Version |
HDMI: 2.2, DisplayPort: 2.2 |
|
USB Hub |
No |
|
Power Supply |
External 12VDC, 2.0A |
|
Power Consumption (Typical) |
22W |
|
Speakers |
No |
|
Line In & Earphone |
Earphone |
|
Wall-Mount |
100mm × 100mm |
|
Adjustable Stand |
Tilt: -5° ~ 23° |
|
Dimensions (without Stand) |
320.8 (H) × 539.7 (W) × 51.1 (D) mm |
|
Dimensions (with Stand) |
433.3 (H) × 539.7 (W) × 196.2 (D) mm |
|
Packaging Dimensions |
396 (H) × 603 (W) × 130 (D) mm |
|
Weight (without Stand) |
2.71 kg |
|
Weight (with Stand) |
3.26 kg |
|
Weight (with Packaging) |
4.38 kg |
|
Cabinet Color |
Black & Red |
|
Regulatory Approvals |
BSMI / CE / RoHS |

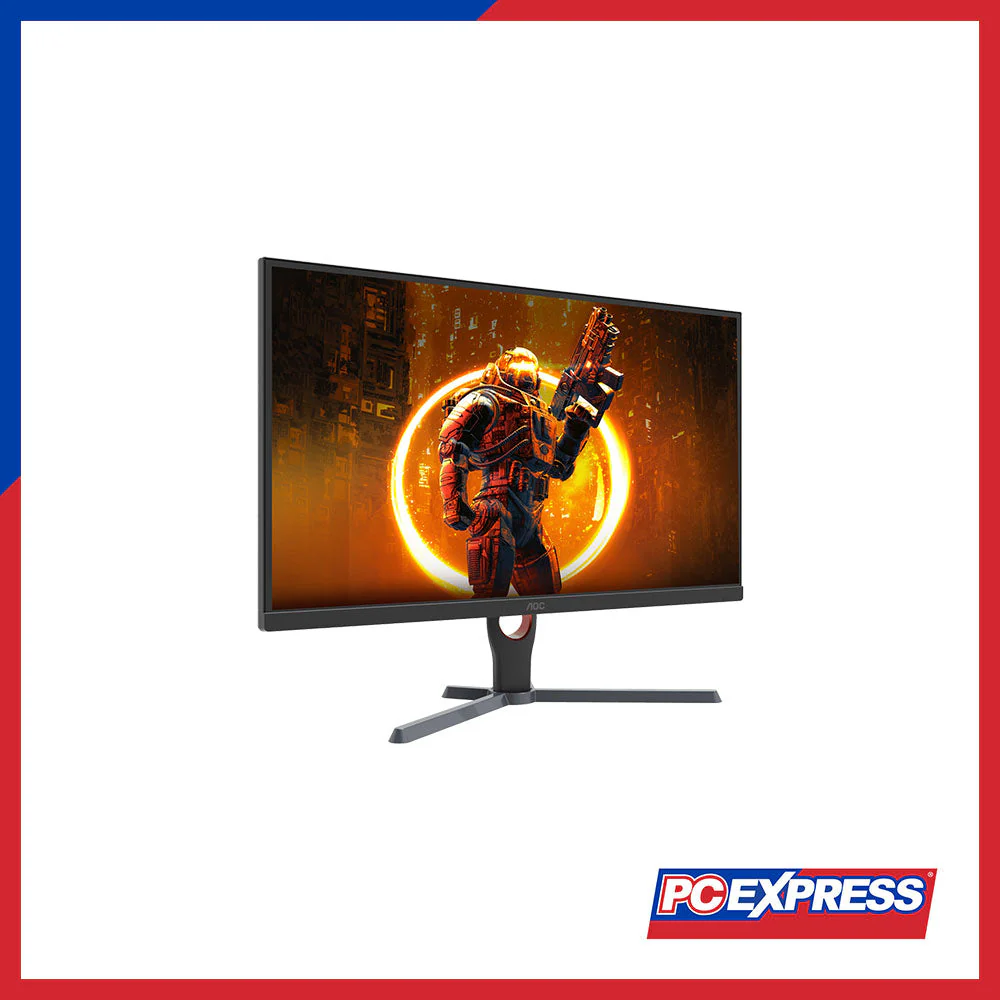

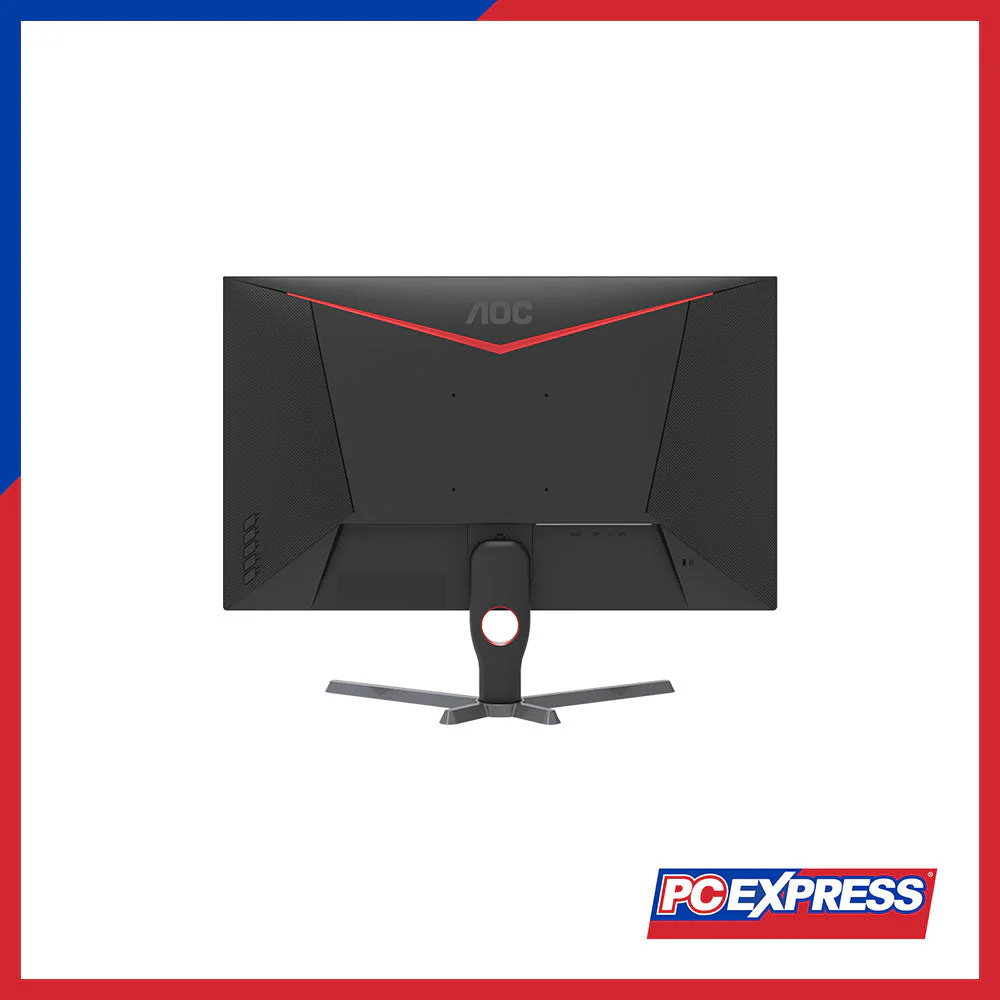

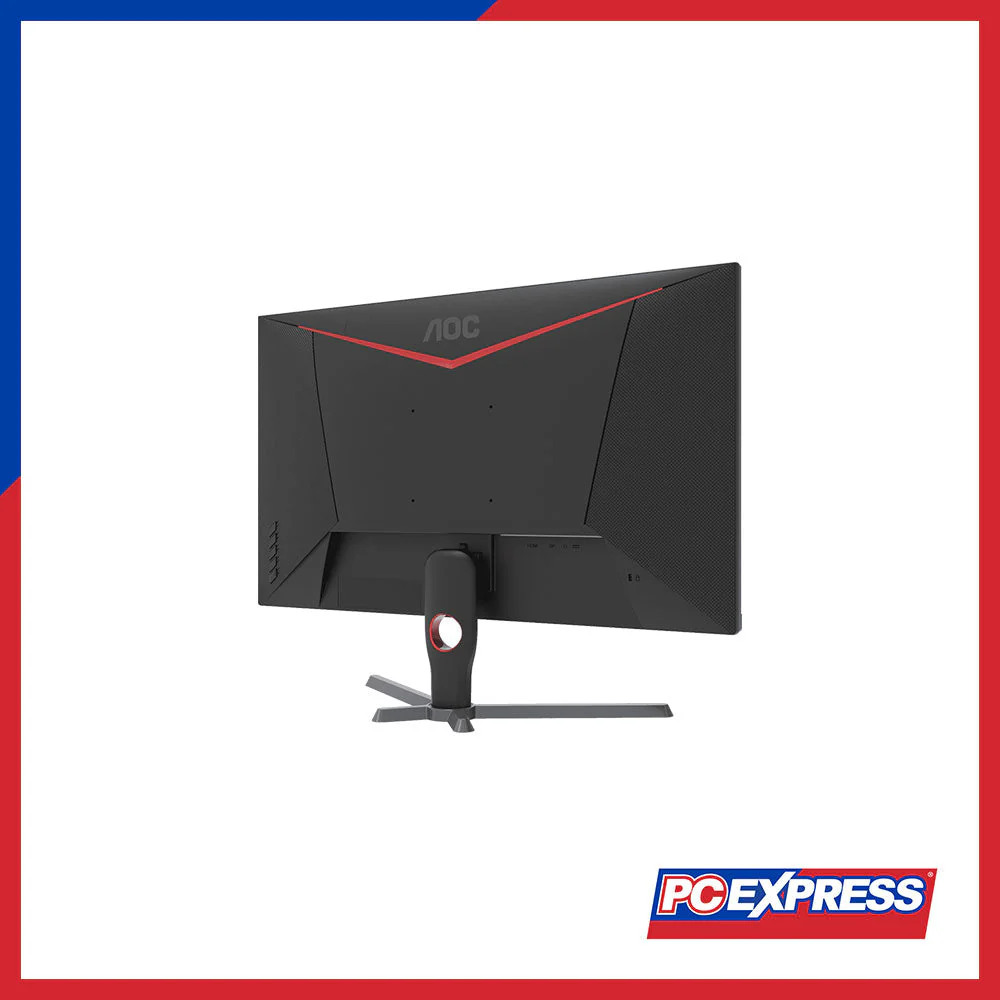

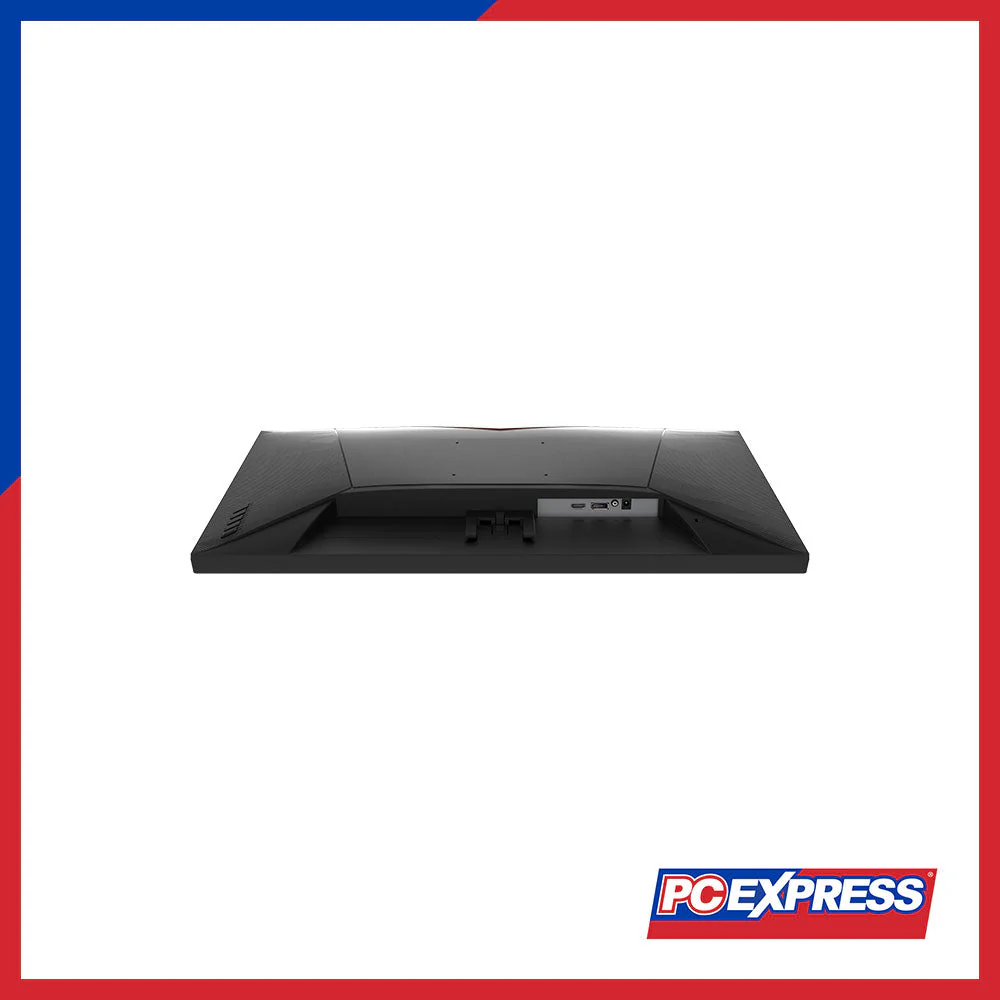

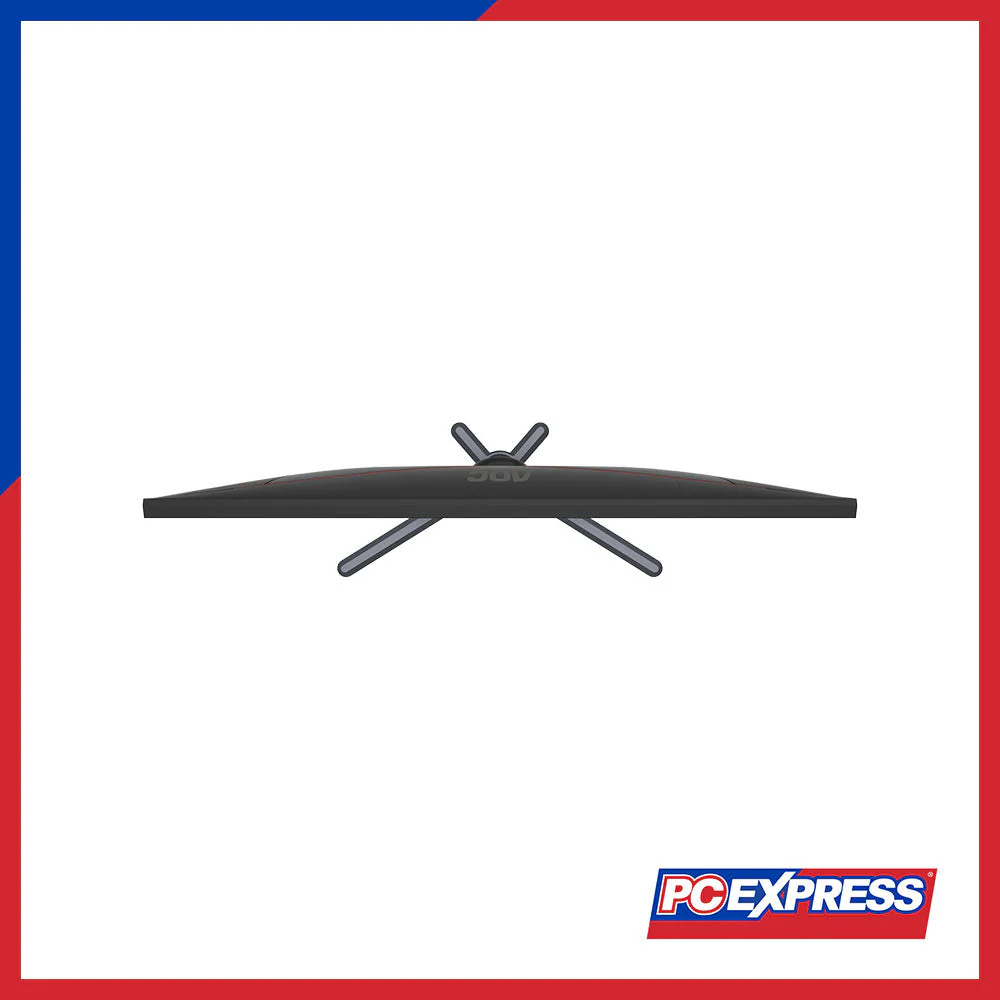

More Images
