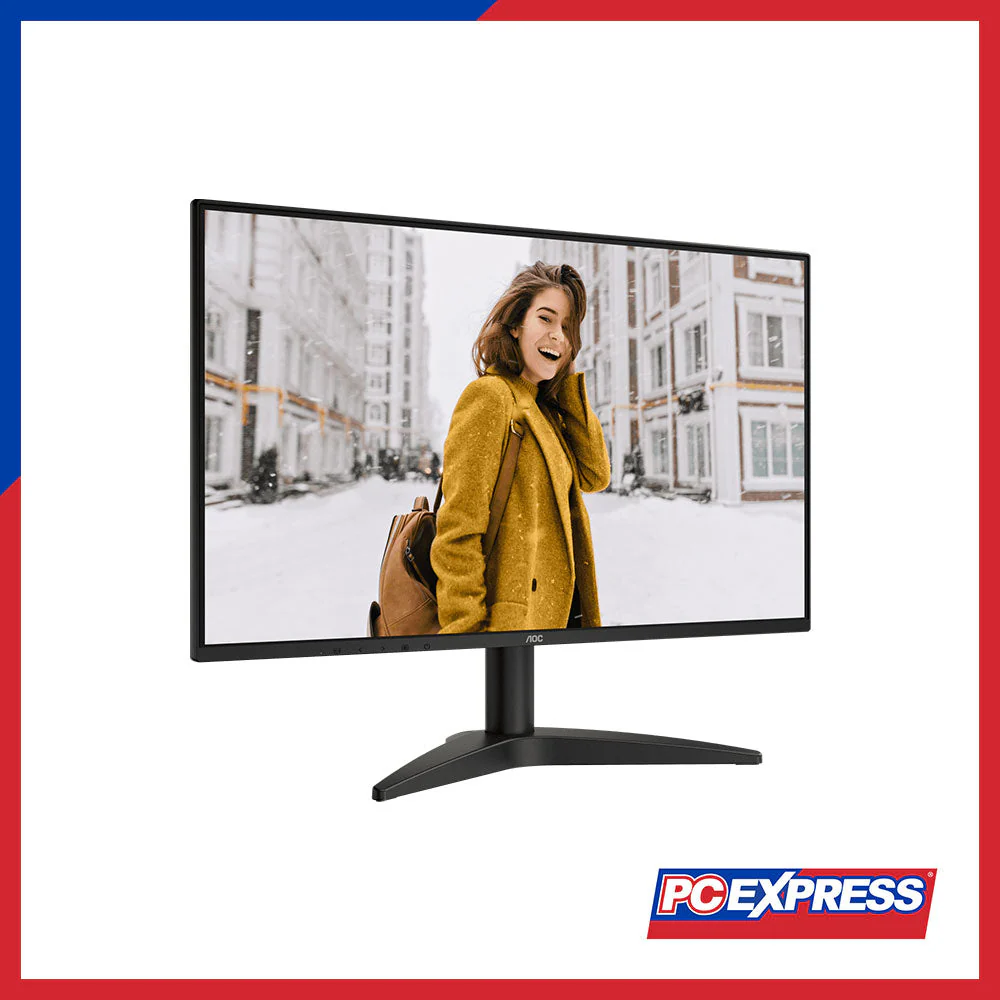

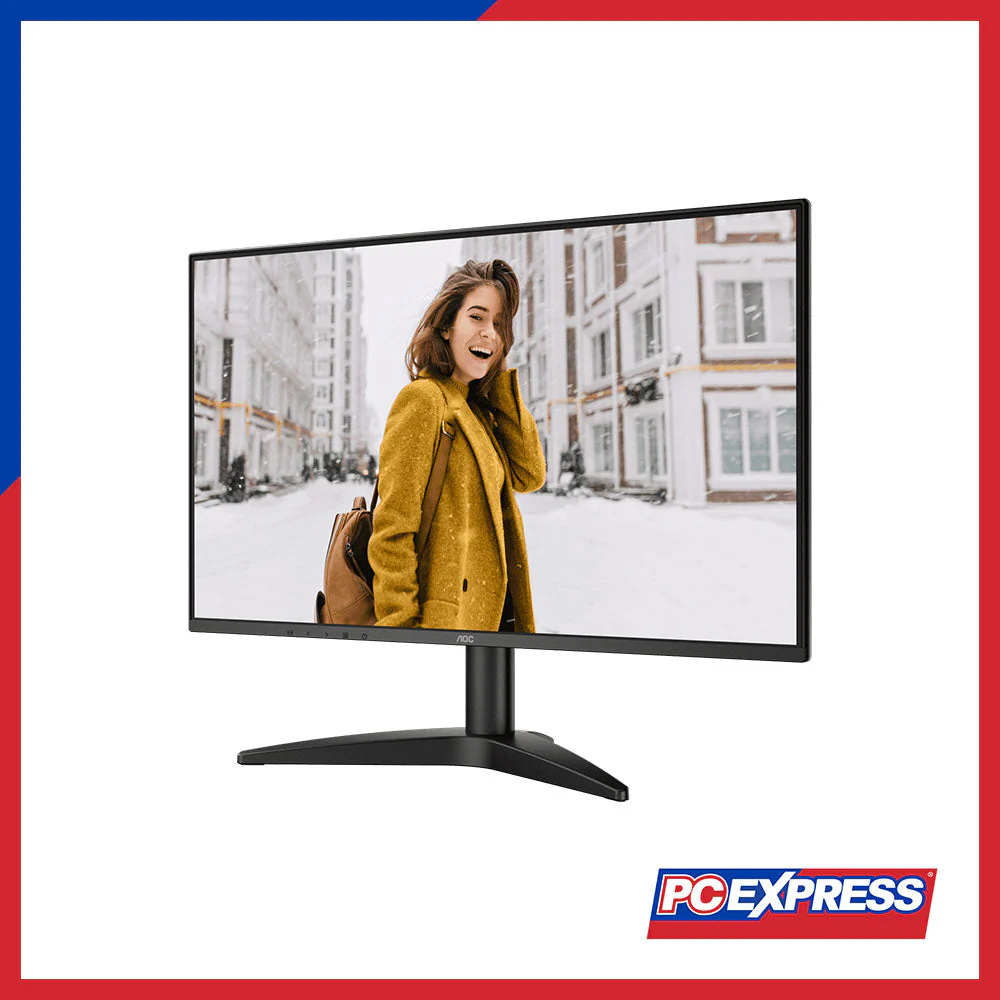

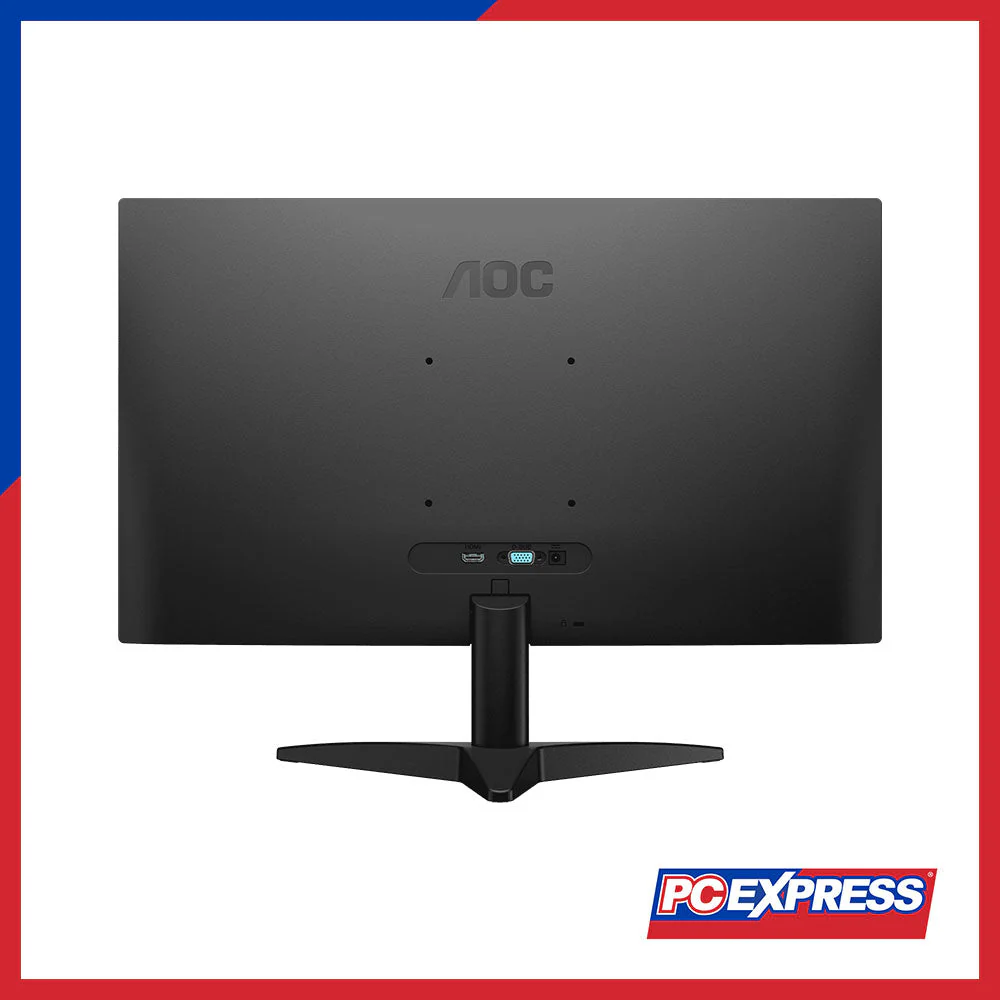

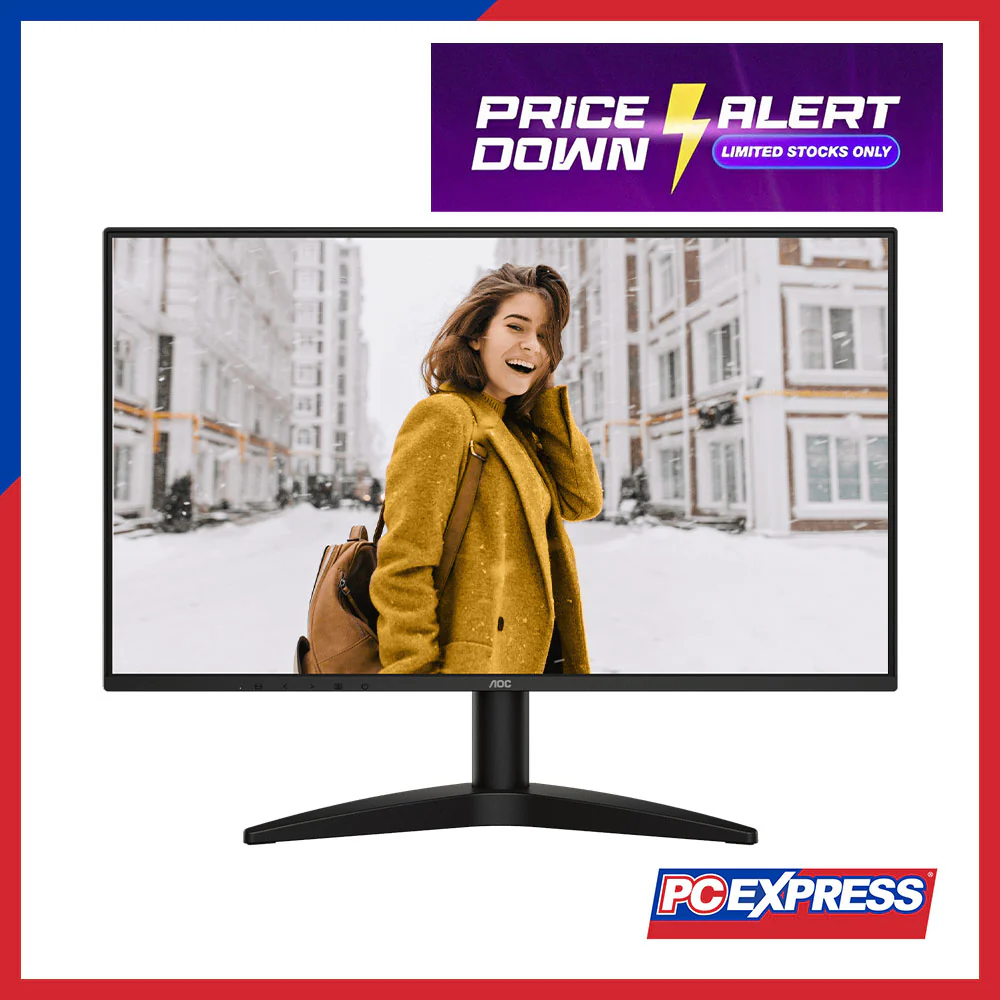

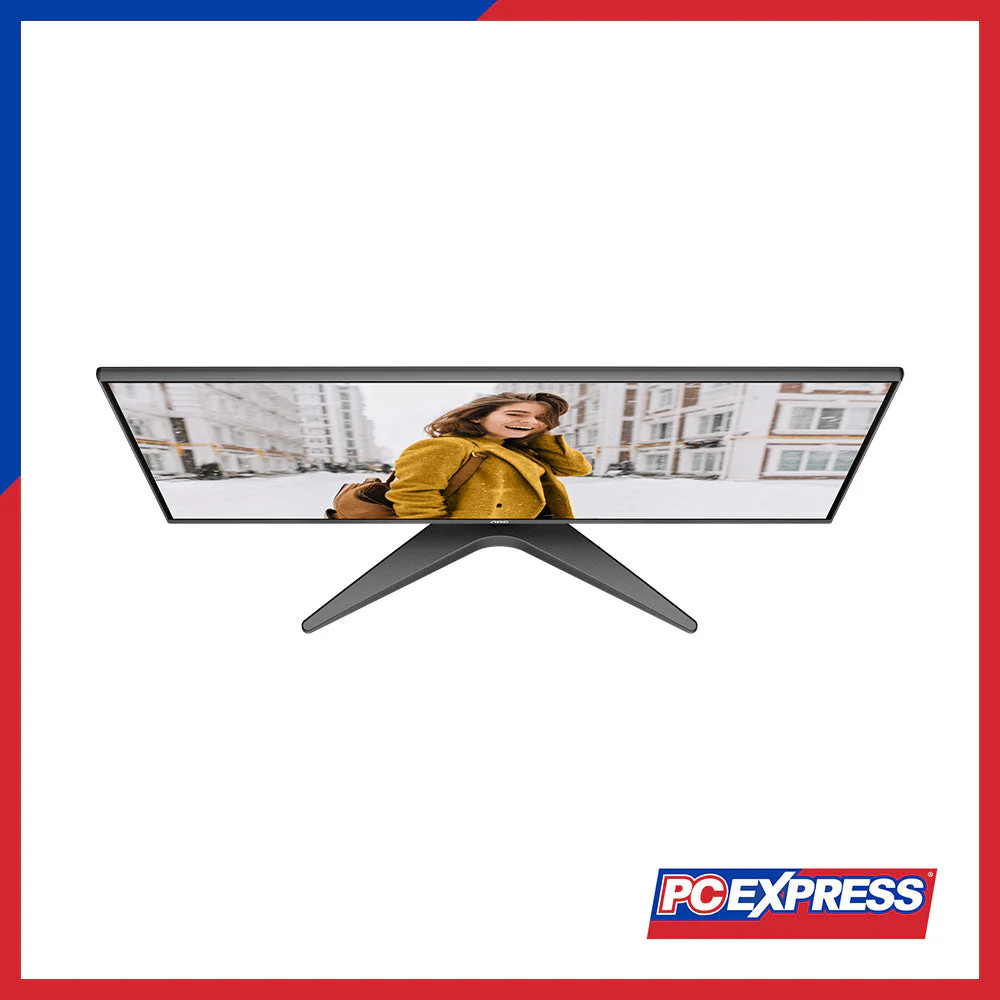

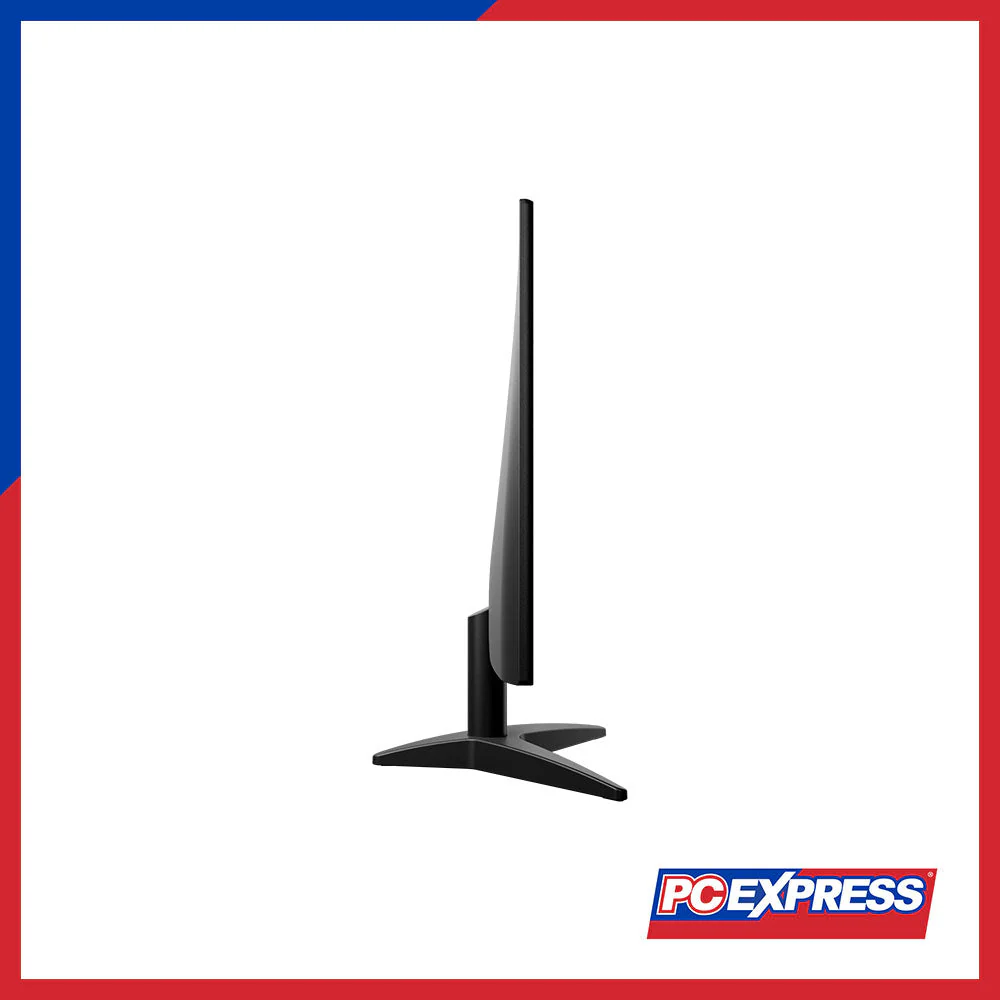

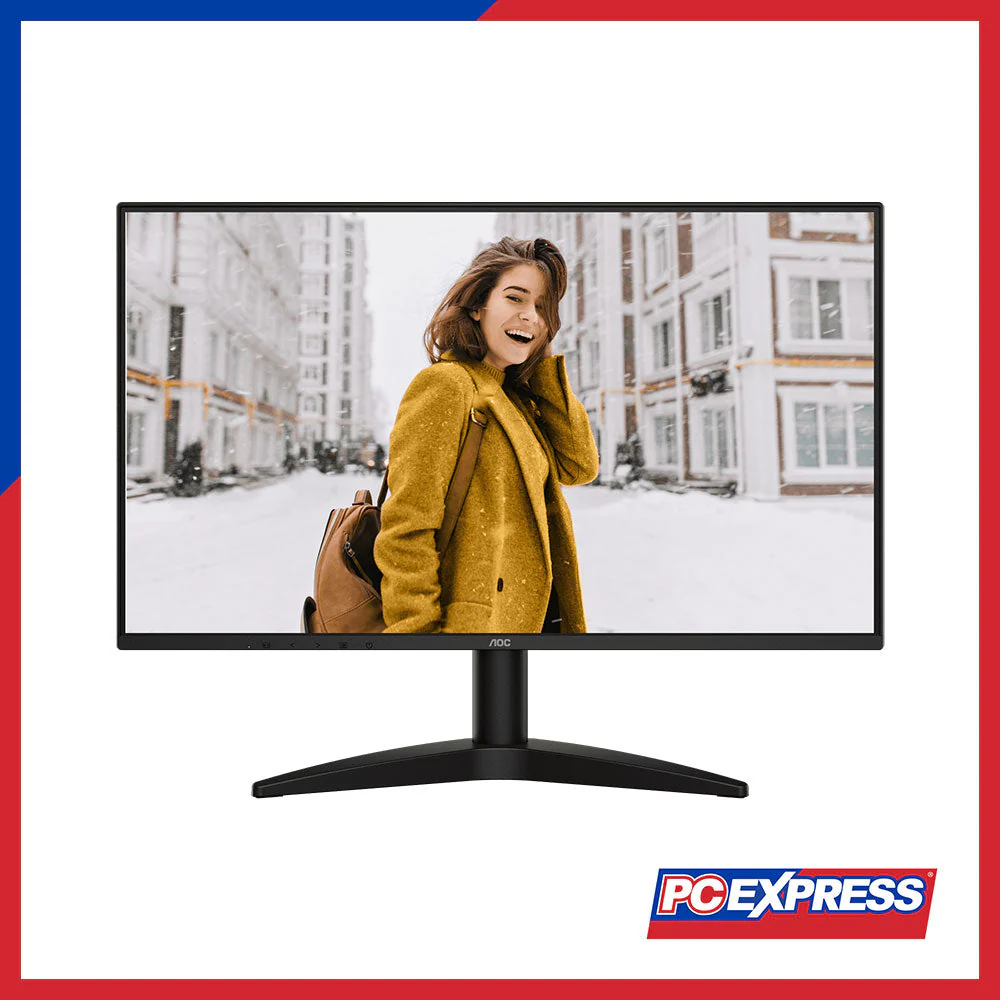

AOC 23.8" 24B36H IPS Monitor
SPECIFICATION
|
Model Name |
24B36H |
|
Panel Type |
23.8" IPS |
|
Pixel Pitch |
0.2745 (H) × 0.2745 (V) mm |
|
Effective Viewing Area |
527.04 (H) × 296.46 (V) mm |
|
Brightness (Typical) |
250 cd/m² |
|
Contrast Ratio |
1500:1 (Typical) / Mega DCR |
|
Response Time |
4ms GtG / 1ms MPRT |
|
Viewing Angle |
178° (H) / 178° (V) (CR > 10) |
|
Color Gamut |
NTSC 91% (CIE1976) / sRGB 105% (CIE1931) |
|
Color Accuracy |
- |
|
Resolution |
1920 × 1080 @ 100Hz (HDMI), 1920 × 1080 @ 75Hz (VGA) |
|
Display Colors |
16.7 Million |
|
Signal Input |
1 × VGA, 1 × HDMI 1.4 |
|
HDCP Version |
- |
|
USB Hub |
No |
|
Power Supply |
External 19VDC, 1.31A |
|
Power Consumption |
17W (Typical) |
|
Speakers |
No |
|
Audio Ports |
No Line In / Earphone Jack |
|
Wall Mount |
100mm × 100mm |
|
Stand Adjustments |
Tilt: -5° ~ 23° |
|
Dimensions (W × H × D) |
Without Stand: 542.4 × 316.2 × 34.7 mm |
|
With Stand: 542.4 × 410.0 × 198.0 mm |
|
|
Packaging: 612 × 381 × 93 mm |
|
|
Weight |
Without Stand: 2.15 kg |
|
With Stand: 2.4 kg |
|
|
With Packaging: 4.02 kg |
|
|
Cabinet Color |
Black |
|
Regulatory Approvals |
CE / FCC |
