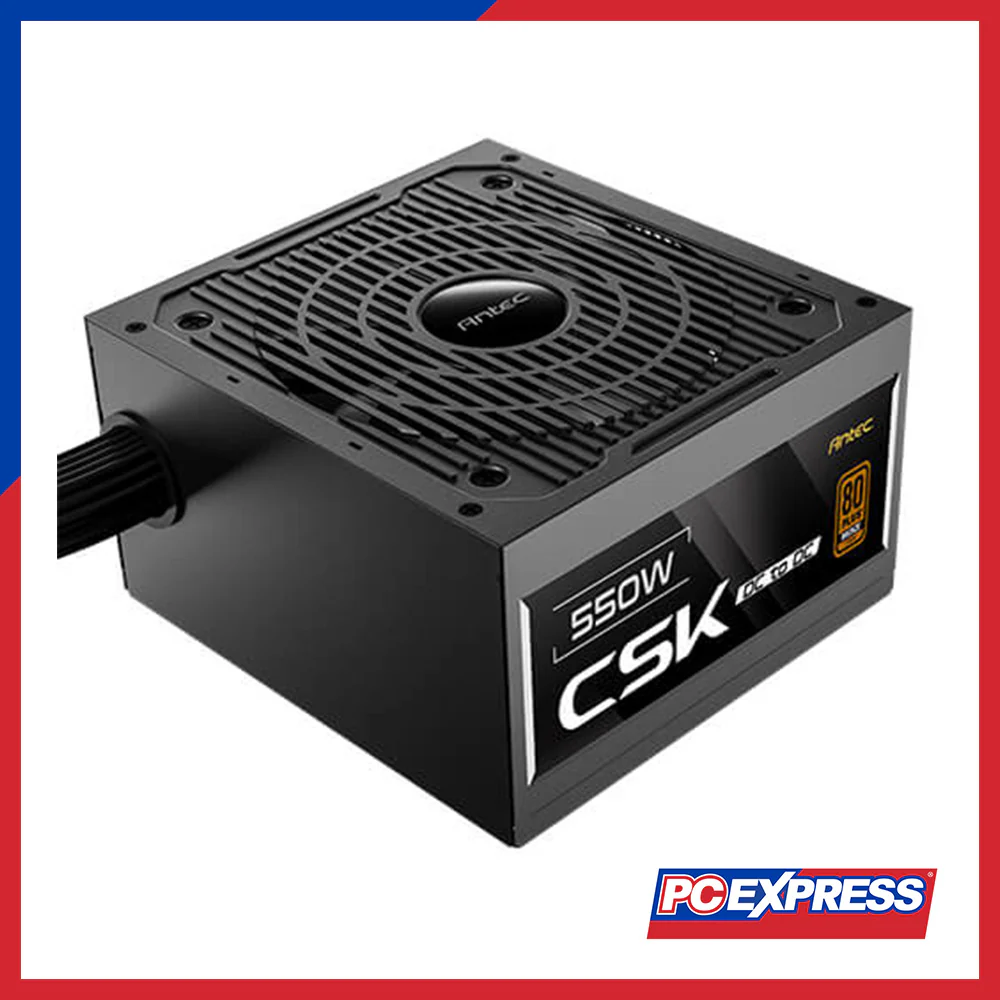

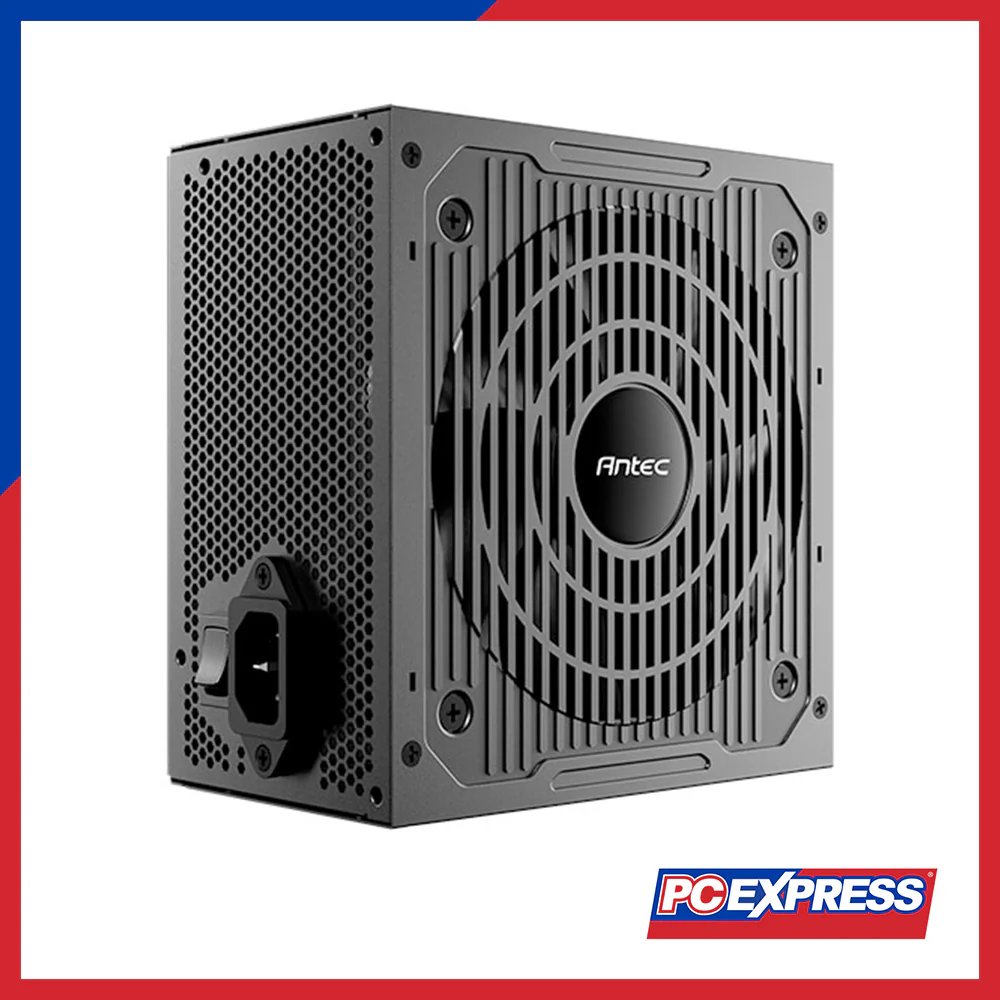

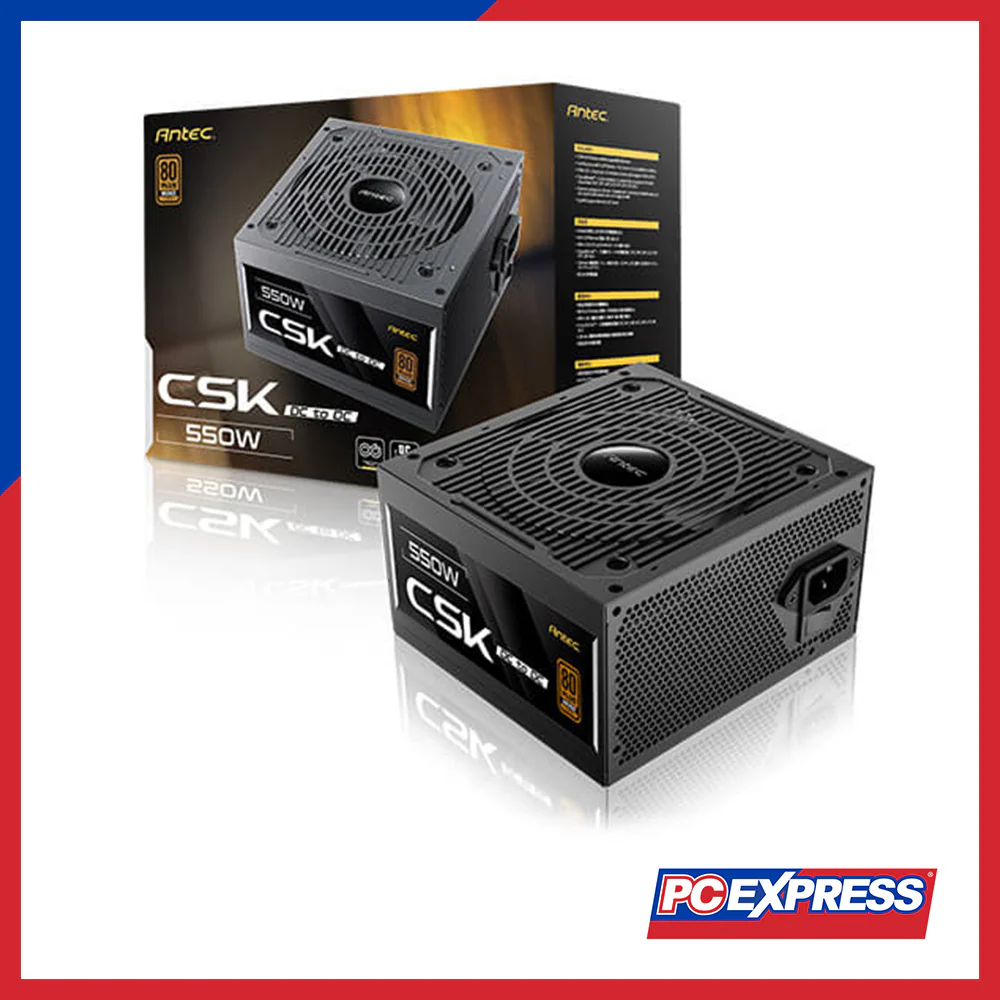

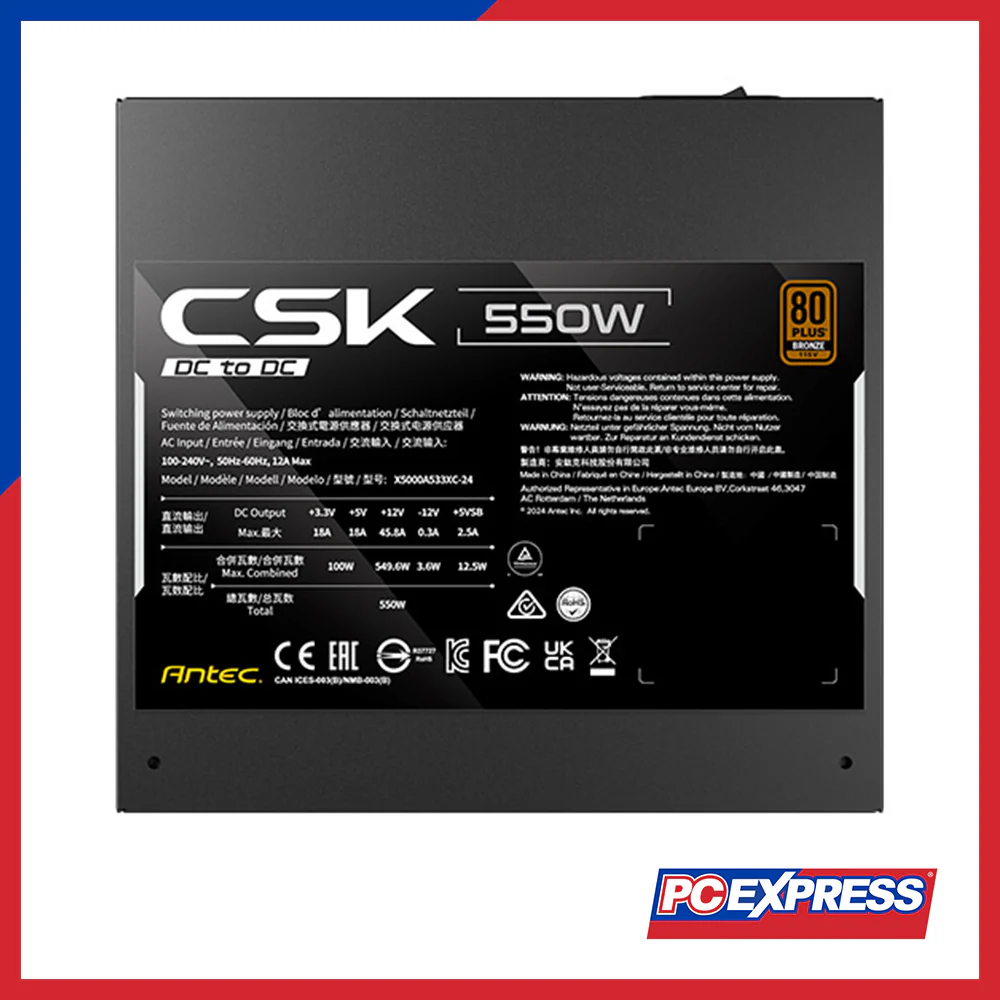

ANTEC CSK550 DC 550W 80+ Bronze Non-Modular Power Supply

Model

CSK550DC

Safe Model

X5000A533XC-24

Type

ATX 12V 2.52

Dimension

140(L) × 150(W) × 86(H) mm

Modular

Non-Modular

Input Voltage

100V-240V

Input Current

12A Max

Input Frequency Range

50Hz-60Hz

PFC

Active PFC

Power Good Signal

100-500ms

Protection

OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO

Output Capacity

550W

Operation Temperature

0~40°C

Regulatory

cTUVus, TUV, CB, RCM, CE, FCC, BSMI, KC, UKCA, ICES, BIS

Fan

120mm Silent Fan

Certifications

80 Plus Bronze

Connector

1 × 24(20+4)pin MB
2 × 8(4+4)pin CPU
2 × 8(6+2)pin PCI-E
6 × SATA
3 × Molex

Unit Box Dimensions

255(L) × 195(W) × 100(H) mm

Shipping Box Dimensions

545(L) × 425(W) × 230(H) mm

Net Weight

1.60 kg

Gross Weight

1.90 kg

UPC#

US: 0-761345-20105-6
JP: 0-761345-20104-9
GB: 0-761345-20103-2
EC: 0-761345-20102-5
AU: 0-761345-20101-8
