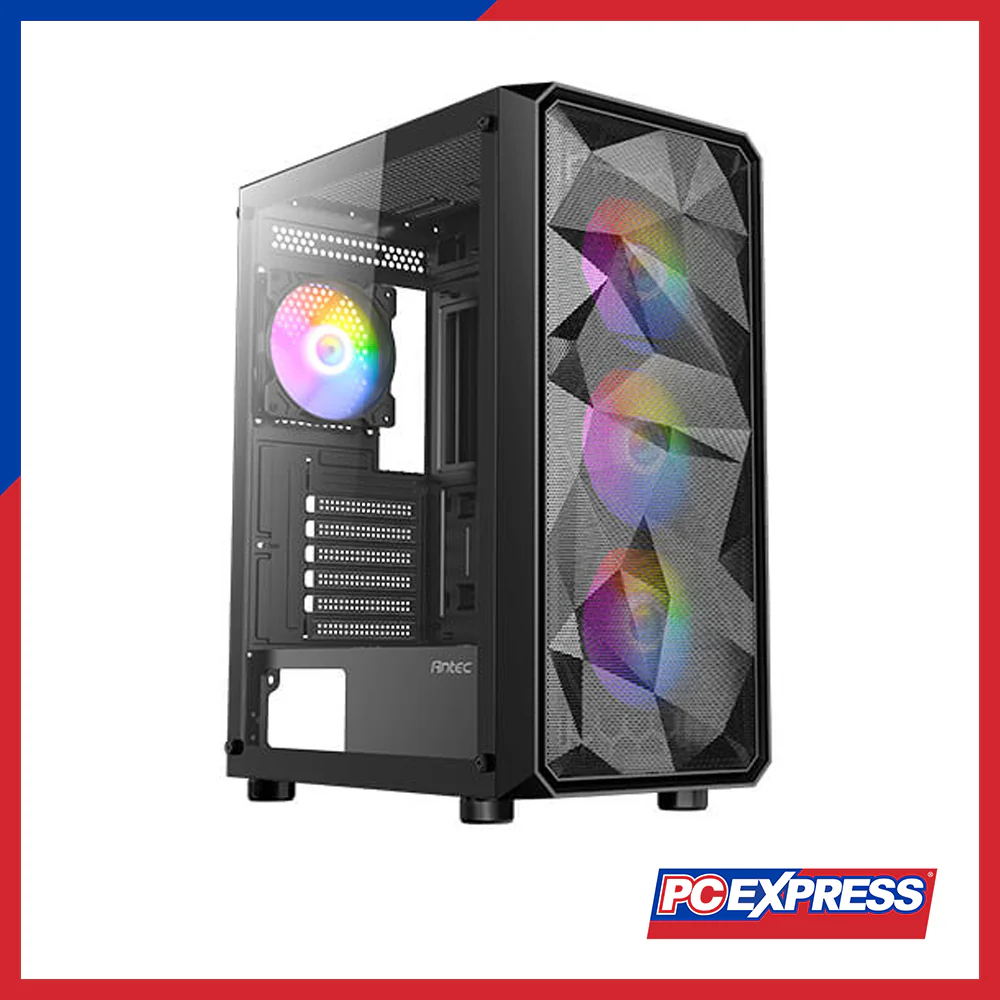

ANTEC AX83 RGB Elite Tempered Glass (With Free Mousepad) - Black

Dimensions

380 x 218 x 486mm (DWH)

Form Factor

Mid Tower

Materials

Steel + Plastic

Mainboard Support

E-ATX (280mm), ATX, M-ATX, ITX

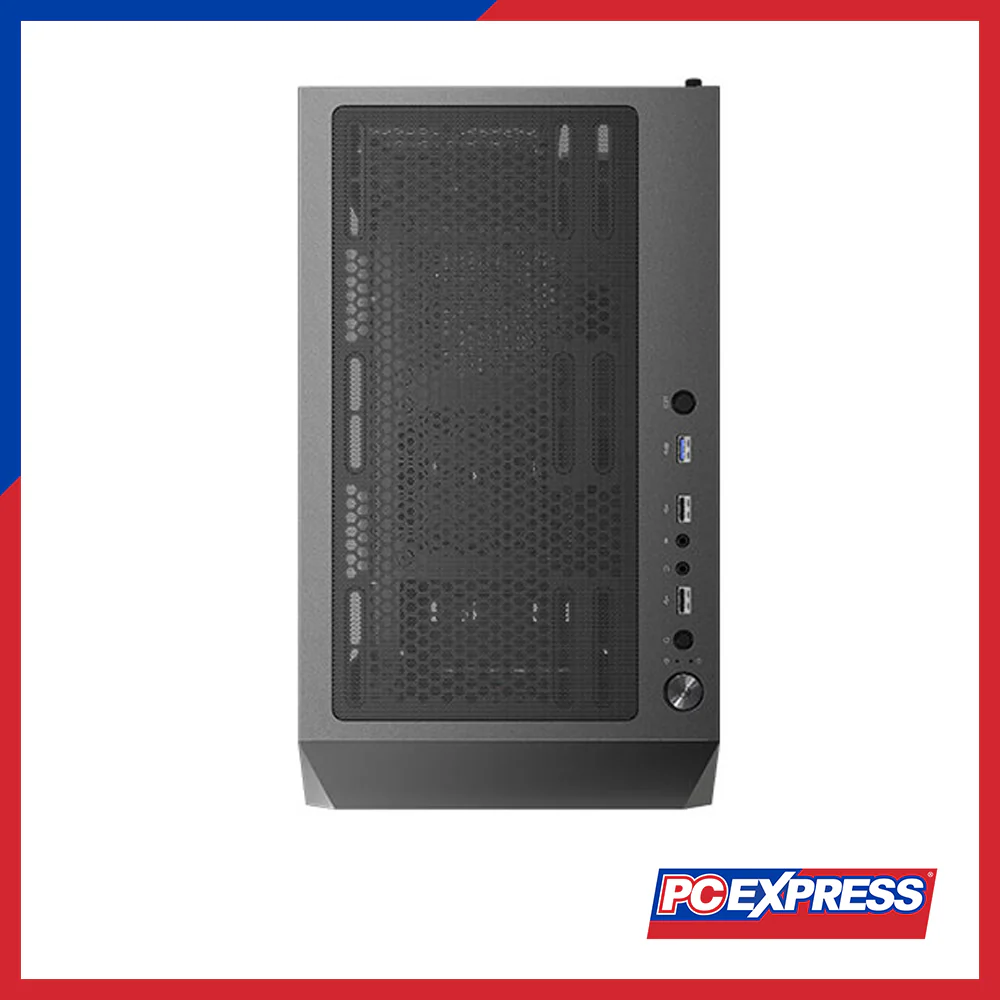

Front Access & Controls

Power, Reset, LED On/Off Button, 2 x USB 2.0, 1 x USB 3.0, MIC/HD-AUDIO
(AX83 RGB series): LED On/Off Button
(AX83 ARGB): LED Control Button

Side Panel

Tempered Glass

Drive Bays

-

3.5" / 2.5"

1 / 0

2.5"

2

Expansion Slots

7

Fan Support - Front

3 x 120mm / 3 x 140mm

Fan Support - Top

2 x 120mm / 2 x 140mm

Fan Support - PSU

2 x 120mm

Fan Support - Rear

1 x 120mm

Included Fan(s)

- AX83 RGB Elite: 3 x 120mm RGB (front) + 1 x 120mm RGB (rear)
- AX83 RGB: 3 x 120mm RGB (front)
- AX83 RGB Extreme: 3 x 120mm RGB (front), 2 x 120mm RGB (top), 1 x 120mm RGB (rear)
- AX83 ARGB: 3 x 120mm ARGB (front), 1 x 120mm ARGB (rear)

Radiator Support - Front

120 / 140 / 240 / 280 / 360mm

Radiator Support - Top

120 / 240mm

Radiator Support - Rear

120mm

Clearance - Max GPU Length

≤ 300mm (with front fan)
≤ 325mm (without front fan)

Max CPU Cooler Height

≤ 165mm

Max PSU Length

≤ 185mm (with HDD)
≤ 325mm (without HDD)

Dust Filter

Top / Bottom

Net Weight

5.62 Kg (AX83 RGB Elite)
5.5 Kg (AX83 RGB)
5.86 Kg (AX83 RGB Extreme)
5.62 Kg (AX83 ARGB)

Gross Weight

6.62 Kg (AX83 RGB Elite)
6.5 Kg (AX83 RGB)
6.86 Kg (AX83 RGB Extreme)
6.62 Kg (AX83 ARGB)

UPC#

0-761345-10036-6 (AX83 RGB Elite)
0-761345-10035-9 (AX83 RGB)
0-761345-10042-7 (AX83 RGB Extreme)
0-761345-10157-8 (AX83 ARGB)
