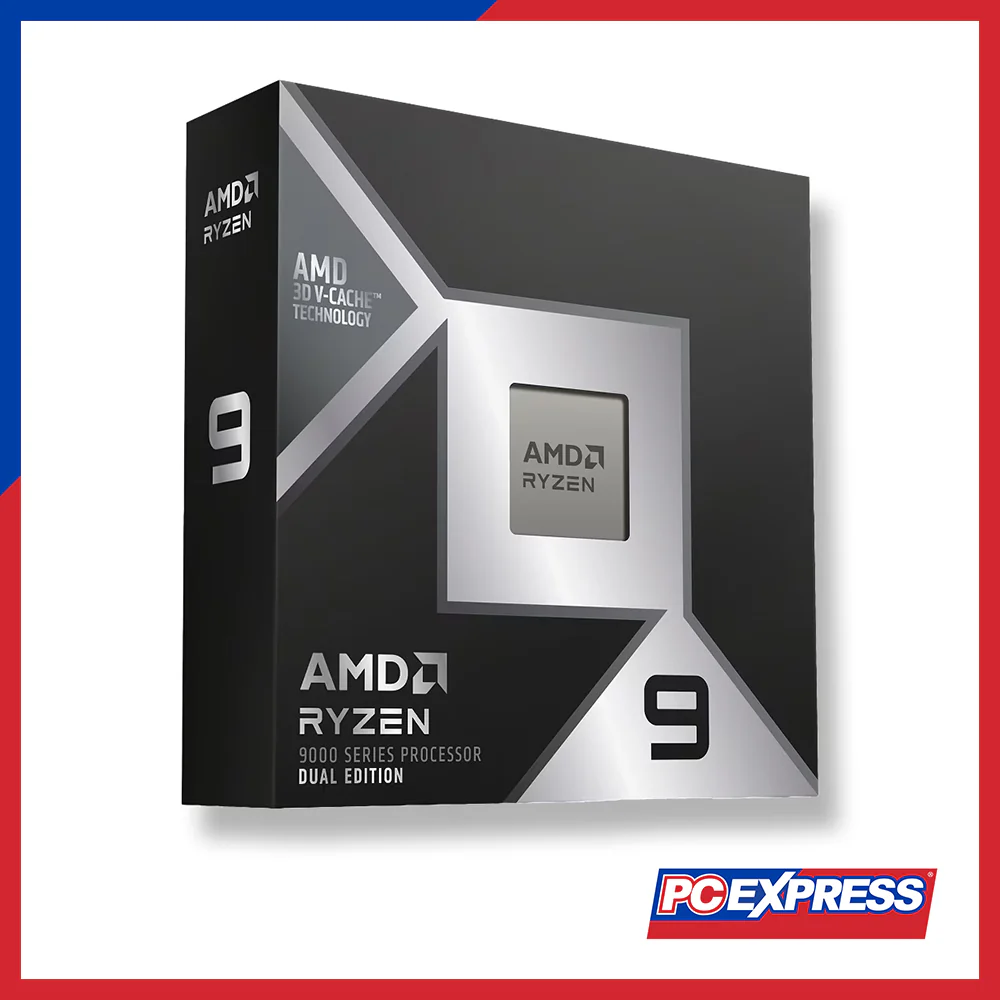

AMD Ryzen™ 9 9950X3D2 (Up to 5.6GHz) Zen 5 AM5 Desktop Processor

Name

AMD Ryzen™ 9 9950X3D2 Dual Edition

Family

Ryzen

Series

Ryzen 9000 Series

Form Factor

Desktops, Boxed Processor

Market Segment

Enthusiast Desktop

Regional Availability

Global

Former Codename

Granite Ridge AM5

Processor Architecture

Zen 5

# of CPU Cores

16

Multithreading (SMT)

Yes

# of Threads

32

Max. Boost Clock

Up to 5.6 GHz

Base Clock

4.3 GHz

L1 Cache

1280 KB

L2 Cache

16 MB

L3 Cache

192 MB

Default TDP

200W

CPU Core Process

TSMC 4nm FinFET

I/O Die Process

TSMC 6nm FinFET

Package Die Count

3

Unlocked for Overclocking

Yes

AMD EXPO™ Support

Yes

Precision Boost Overdrive

Yes

Curve Optimizer

Yes

Ryzen™ Master Support

Yes

CPU Socket

AM5

Supporting Chipsets

A620, X670E, X670, B650E, B650, X870E, X870, B840, B850

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES, AVX512, AVX2, AVX, FMA3, MMX-plus, SSE2, SSE4.2, SSE4A, SSE4.1, SSE3, SSSE3, SSE, x86-64

Thermal Solution (PIB)

Not Included

Recommended Cooler

Liquid cooler recommended for optimal performance

Max Operating Temperature (Tjmax)

95°C

Launch Date

4/22/26

OS Support

Windows 11 (64-bit), Windows 10 (64-bit), RHEL x86 64-bit, Ubuntu x86 64-bit

Native USB 3.2 Gen 2 (10Gbps)

4

Native USB 2.0 (480Mbps)

1

PCI Express Version

PCIe 5.0

PCIe Lanes (Total/Usable)

28 / 24

NVMe Support

Boot, RAID0, RAID1, RAID5, RAID10

Memory Type

DDR5

Memory Channels

2

Max Memory Capacity

256 GB

Memory Subtype

UDIMM

Max Memory Speed

2x1R: DDR5-5600; 2x2R: DDR5-5600; 4x1R: DDR5-3600; 4x2R: DDR5-3600

ECC Support

Yes (requires motherboard support)

Graphics Model

AMD Radeon™ Graphics

Graphics Core Count

2

Graphics Frequency

2200 MHz

USB Type-C DisplayPort Alt Mode

Yes
